F800 Maintenance, Cleaning and Troubleshooting
PR-2013-0105-GB • Subject to modifications • R2-04/2016 35

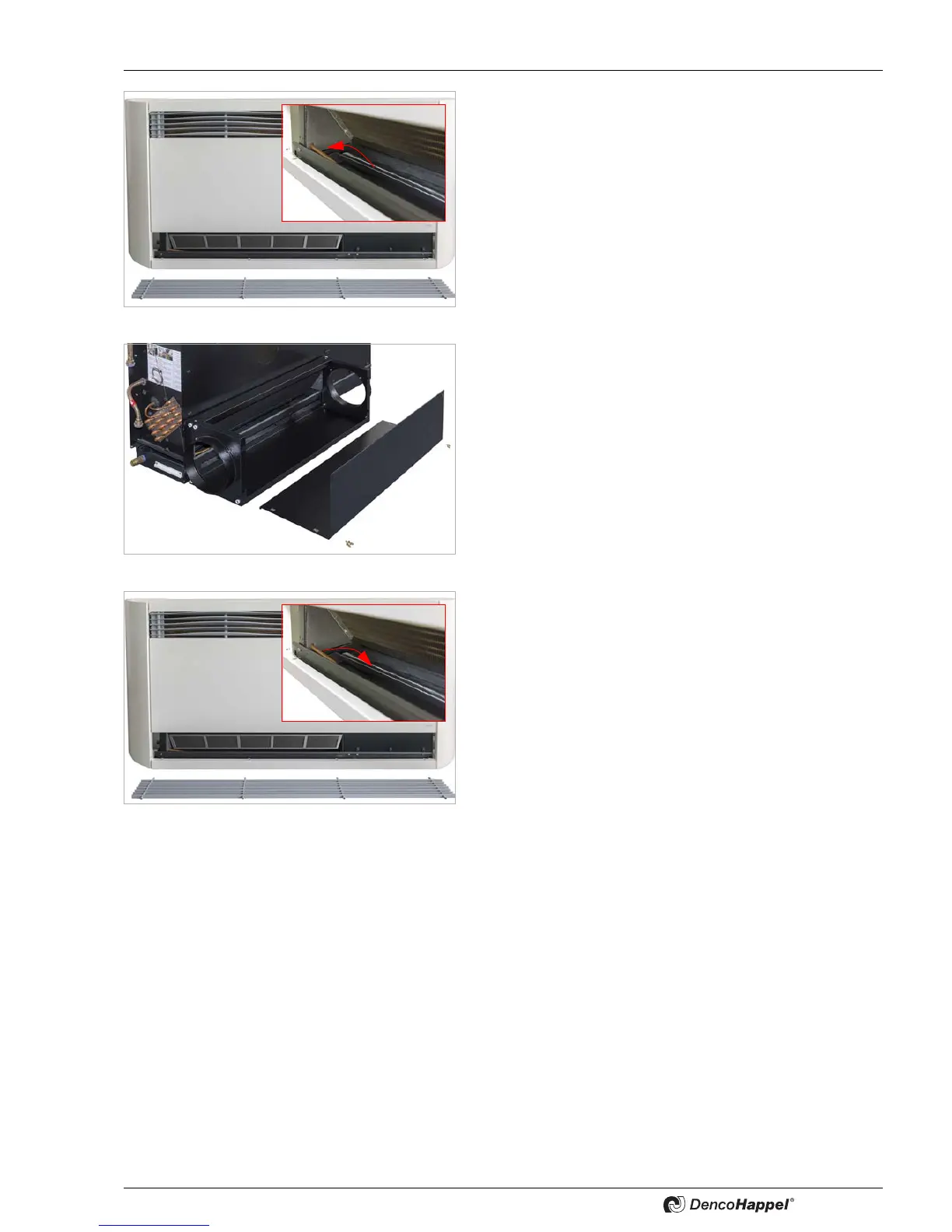

• Take a hold of the filter, push slightly downwards, then fold
tilt out of the slot/track from above and remove.
• Clean the filter with flowing tap water or
replace the filter (accessory).
Fig. 6-1
• For units with rear wall assembly:
Open adapter for exhaust air connection (box) with wing
screws.
• Remove and exchange the filter (see above).
Fig. 6-2
• Insert the filter in the lower slot/track, click it in on top, and
likewise insert into the slot/track.
If required, pull the filter with its support frame a little apart in
order to ensure secure fixation.
• Re-install the unit in the reverse sequence.
Fig. 6-3
