Denon AVR-1312 User Manual

26
Connect
•For the method of connecting 5.1-channel speakers, see C page 2
“Connecting the speakers”.
•For the method of connecting the TV, see C page 4 “Connect this
unit to the television using an HDMI cable (sold separately)”.

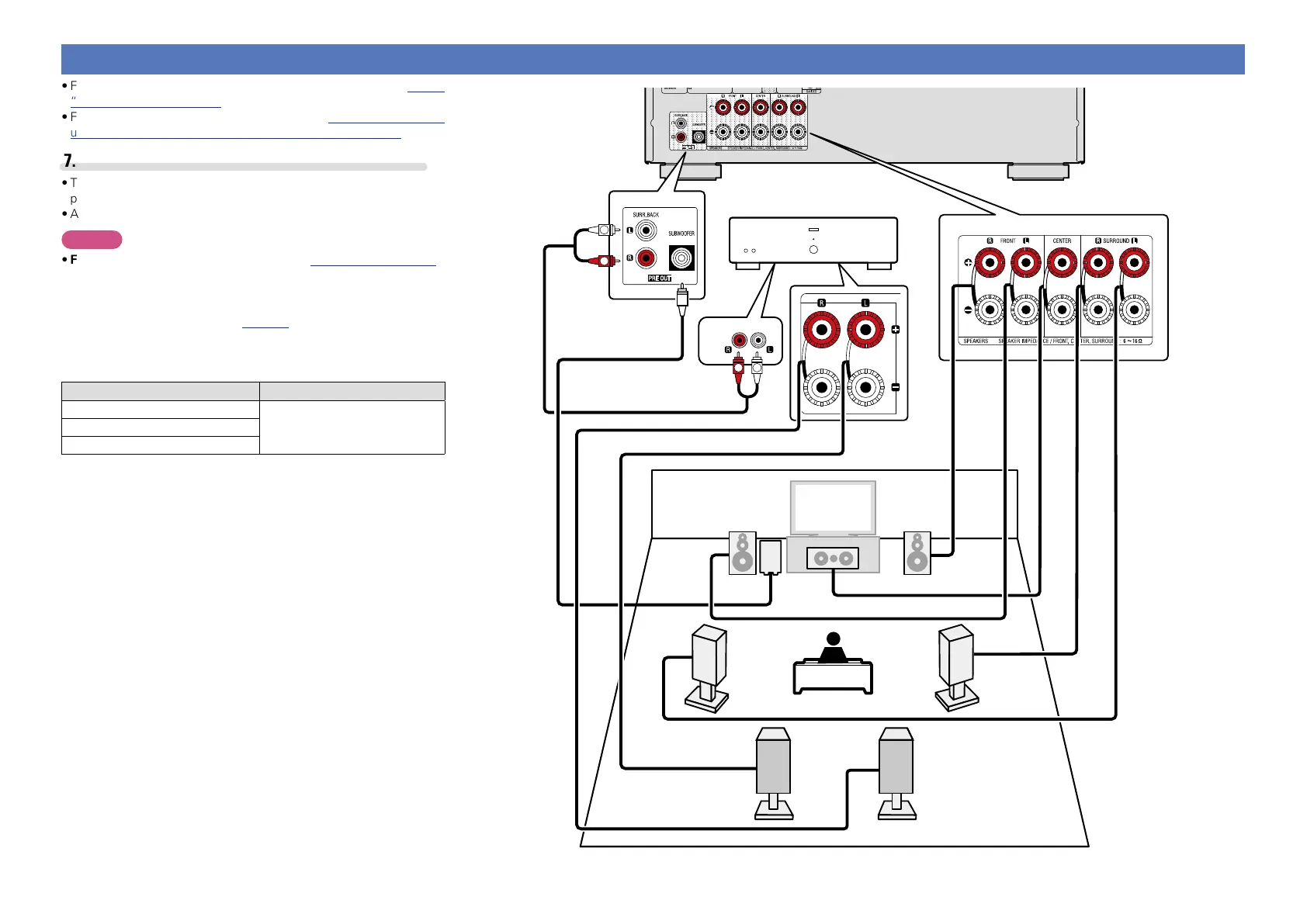

7.1-channel (Surround back speaker) connection
•The illustration on the right shows a connection example for
performing 7.1-channel playback using the surround back speakers.
•A power amplifier (sold separately) is required for this connection.
NOTE
•For speaker cable connections, see C page 3 “Preparation”.
•Connect so that the speaker cable core wires do not protrude
from the speaker terminal. The protection circuit may be
activated if the core wires touch the rear panel or if the + and
– sides touch each other (vpage57 “Protection Circuit”).
•Never touch the speaker terminals while the power supply is
connected. Doing so could result in electric shock.
•Use speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 ΩCENTER
SURROUND
C
SBL SBR
SL
SR
IN
R
L
R
L
FL
FR
SW
Power amplifier
Basic version
Advanced version
Information
Advanced version

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
