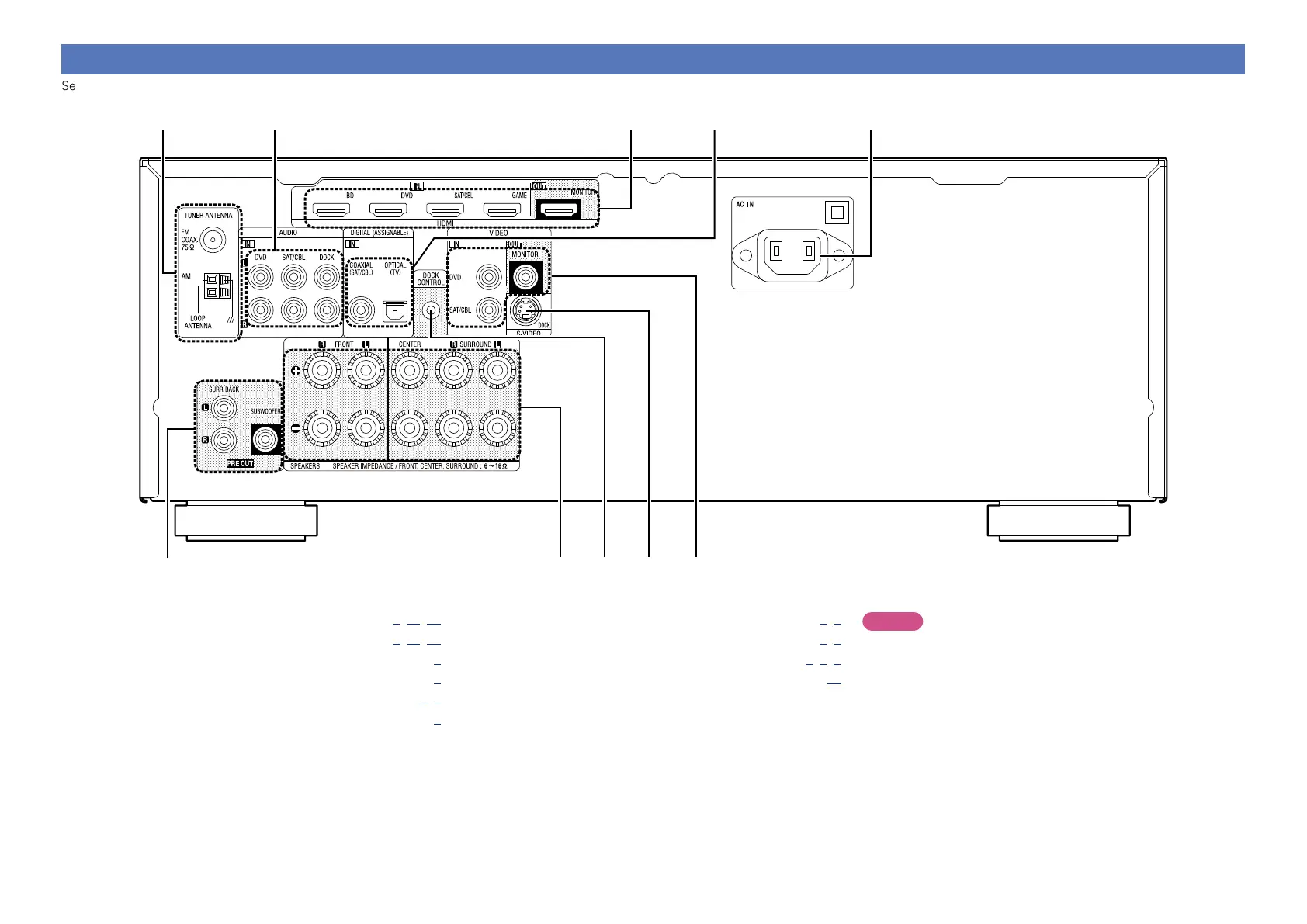

Rear panel
See the page indicated in parentheses ( ).
q
w e
tr
yi uoQ0
q PRE OUT connectors ············································· (C 3, 26, 27)
w Speaker terminals ················································· (C 3, 26, 27)
e DOCK CONTROL jack ································································ (9)
r S-VIDEO connector ··································································· (9)
t VIDEO connectors ································································· (7, 8)
y AC inlet (AC IN) ·································································· (C 4)
u Digital audio connectors ······················································· (7, 8)
i HDMI connectors ··························································· (C 4, 5)
o Analog audio connectors ·················································· (7, 8, 9)
Q0 FM/AM antenna terminals ····················································· (10)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
Basic version
Advanced version
InformationInformation

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
