Denon AVR-1707 - Connecting the Ipod; Connecting the MULTI ZONE Terminals; Connecting a Room-To-Room Remote Control Unit

Connecting Other Sources Connecting Other Sources
17
ENGLISH
ENGLISH
For instructions on operations using the MULTI ZONE functions ( page 36).
Connecting the MULTI ZONE terminalsConnecting the iPod
®
iPod
ASD-1R
L
R
L
R
A
G
AUDIO OUT
S-VIDEO OUT
When using an iPod, you must connect the Control Dock for iPod (ASD-1R, sold separately) and the DOCK
CONTROL jack on the AVR-1707 with a mini-jack and assign the iPod to any AUDIO and/or S-VIDEO
terminal(s).

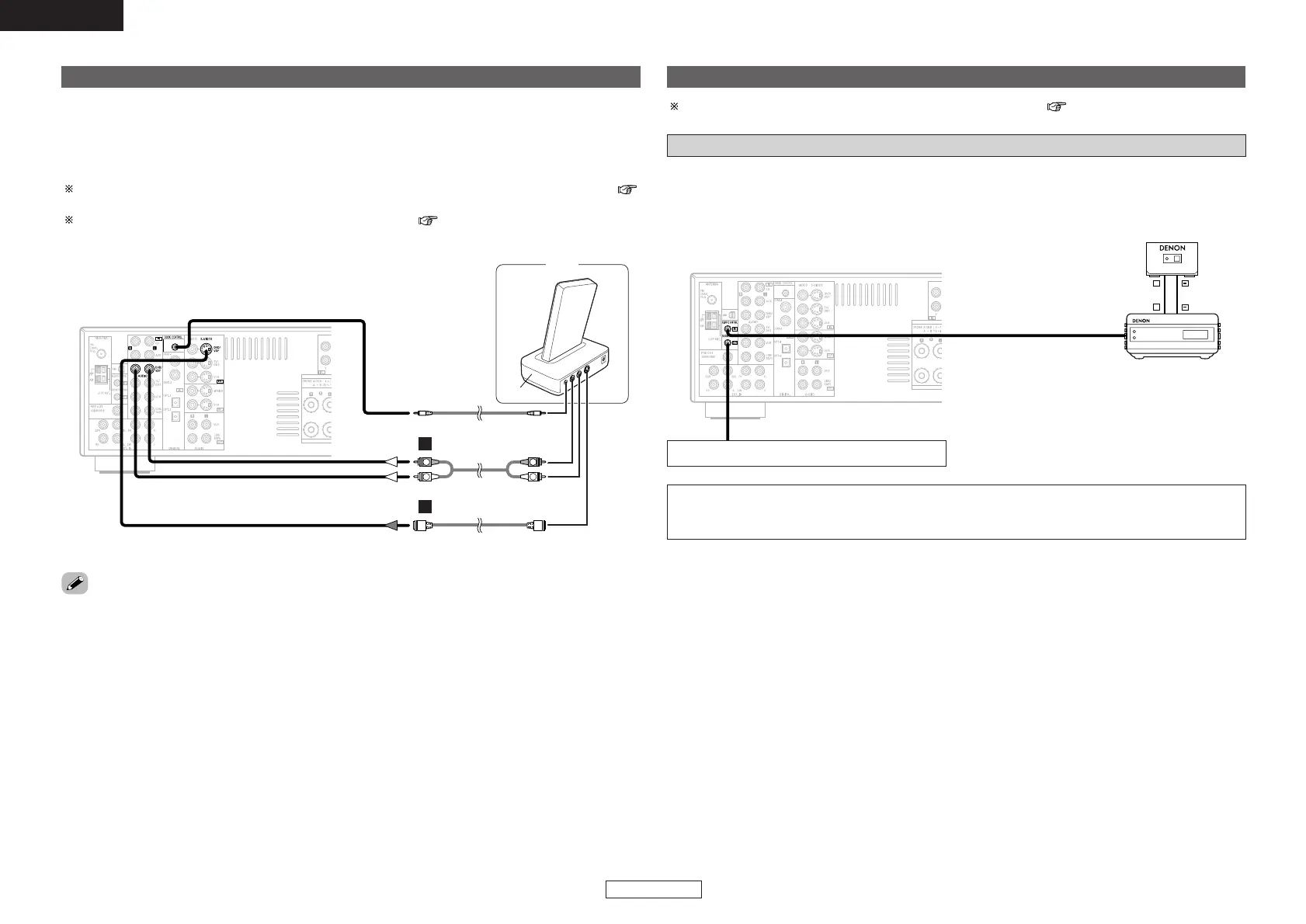

The diagram below shows an example of connections for when the iPod is assigned to the DVD/VDP
terminal.
For instructions on assigning the iPod to a specific terminal, see “Setting the iPod Assignment” (
page 41).
For instructions on playing the iPod, see “Playing the iPod” ( page 34, 35).
• The optional standard Dock Control for iPod is DENON ASD-1R sold separately.
When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and
connected between the MAIN ZONE and ZONE2, the remote-controllable devices in the MAIN ZONE can
be controlled from ZONE2 using the remote control unit.
Connecting a room-to-room remote control unit
NOTE:
• For instructions on installation and operation of separately sold devices, refer to the devices’
operating instructions.
+
+
OUTPUT
INPUT
AUX OUT
RC-616 INFRARED
RETRANSMITTER
RC-617 INFRARED SENSOR
Extension terminals for future use.
