Connecting Other Sources Connecting Other Sources
18
ENGLISH
ENGLISH
• When the surround back’s power amplifier is assigned to the ZONE2 output channel at Power Amplifier
Assignment mode, the surround back speaker terminals can be used as the ZONE2 speaker out
terminals ( page 36).
• The connections diagram below is an example for when the surround back speaker is assigned to the
ZONE2 stereo 2 channel.
In this case, surround back speaker out can not be used for MAIN ZONE.

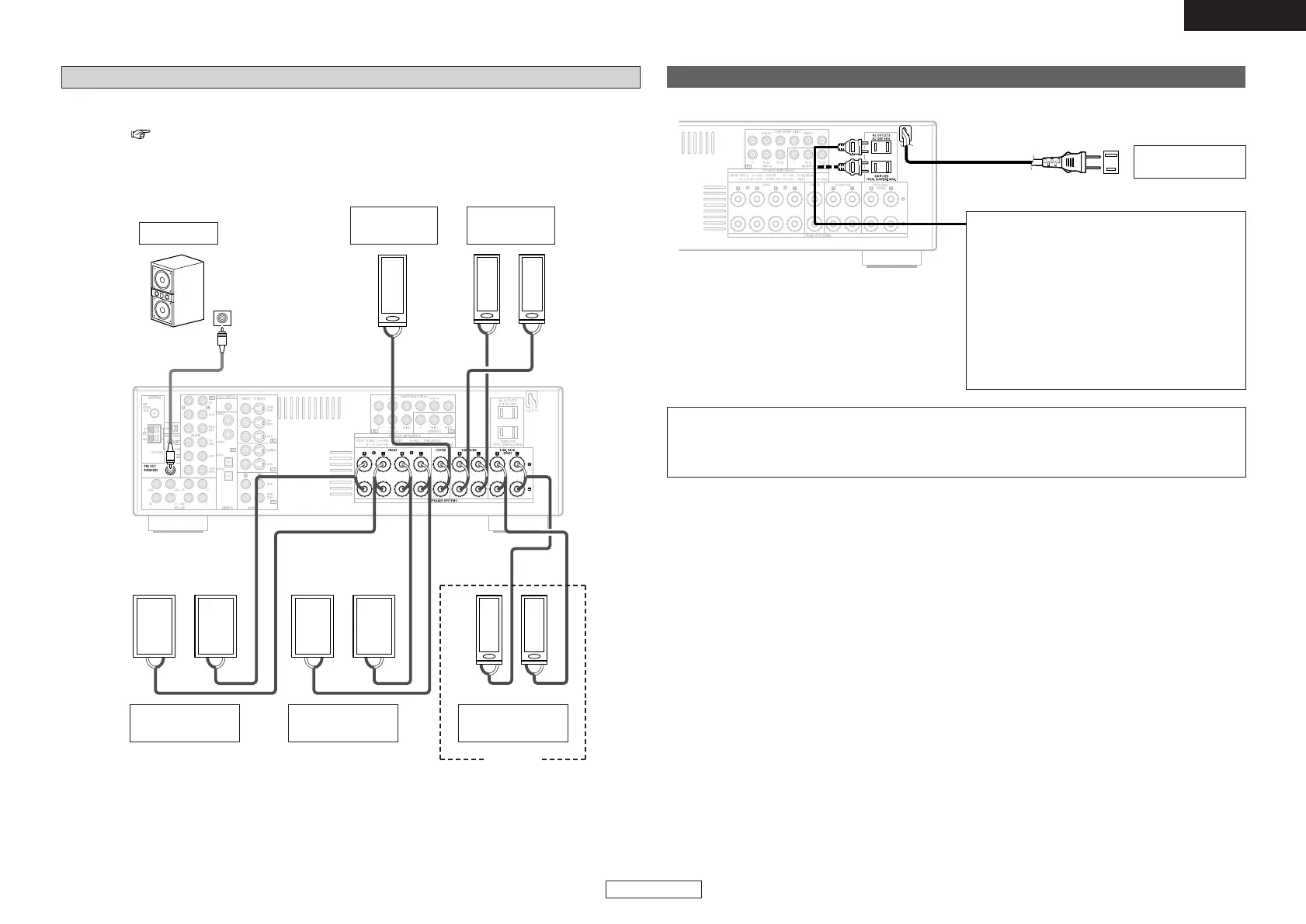

ZONE2 speaker out connections
ZONE2
Connecting the power supply cord
AC 120 V, 60 Hz
AC outlet
(wall)
NOTE:
• Insert the plugs securely. Incomplete connections will result in the generation of noise.
• Only use the AC OUTLETS for audio equipment. Never use it for hair driers, monitors or other
electrical appliances.
AC OUTLETS
• SWITCHED (total capacity – 120 W (1A.))
The power to the outlet is turned on and off in
conjunction with the POWER switch on the
main unit, and when the power is switched
between on and standby from the remote
control unit.
No power is supplied from this outlet when
this unit’s power is at standby. Never connect
equipment whose total power consumption
exceeds 120 W (1A.).
><<>><<>
><
><><
><><
IN
(
L
) (
R
)
(
L
) (
R
)
(
L
) (
R
) (
L
) (
R
)
Connection terminal for
subwoofer with built-in
amplifier.
Front speakers
(A)
Surround
speakers
Front speakers
(B)
Subwoofer
ZONE2 Front
speaker
Center
speaker

Denon AVR-1707 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Total Harmonic Distortion (THD)	0.7 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Product color	Silver
Audio decoders	DTS, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx
Apple docking compatibility	iPod
Digital Signal Processing (DSP)	Yes
HDMI in	0
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	3
Optical drive included	No

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	11400 g
