Display
q
Signal channel indicator
Lights when the preset channel is displayed at
w
.
w
Information display
e
Input signal indicators
r
Master volume indicator
This displays the volume level.
The Setup item number is displayed in System
Setup.
t
Input mode indicators
y
ZONE2 indicator
ZONE2 mode is selected in Power Amplifier
Assignment.
u
STEREO indicator
This lights when an FM stereo broadcast has
been received.
i
AUTO indicator
This lights when the broadcast station is
selected in the AUTO tuning mode.
o
TUNED indicator
This lights when an FM/AM broadcast has been
received.
Part names and functions

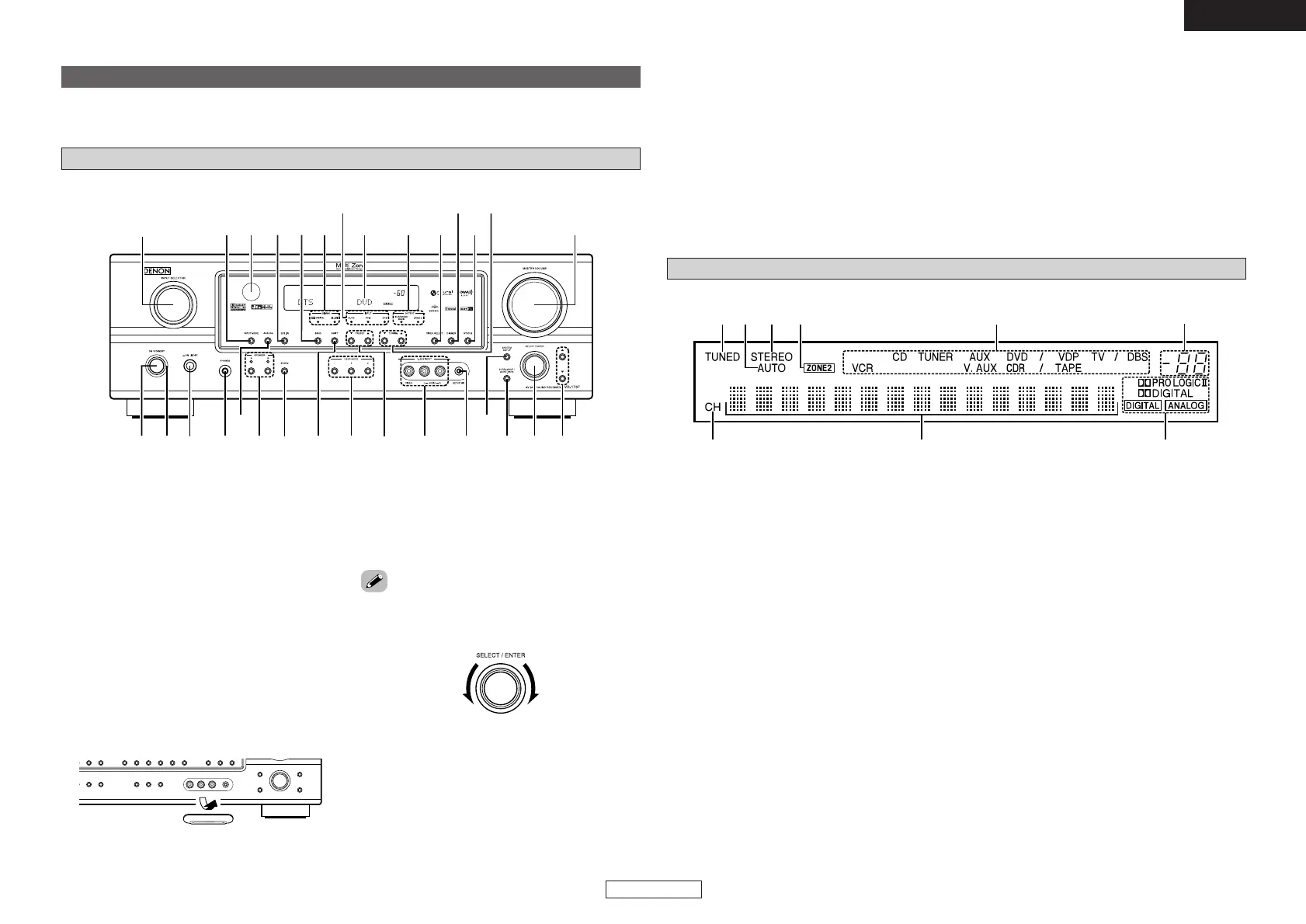

Front panel
For details on the functions of these parts, refer to the pages given in parentheses ( ).
q
Power operation button
(ON/STANDBY)··········································(10)
w
Power indicator ·········································(10)
e
Power switch·······································(10, 37)
r
Headphones jack (PHONES)·····················(20)
t
ANALOG button ········································(19)
y
SPEAKER buttons································(10, 37)
u
ZONE2 button············································(36)
i
SHIFT button··············································(31)
o
USER MODE buttons ································(33)
!0
PRESET buttons···································(30, 31)
!1
V. AUX INPUT terminals
Remove the cap covering the terminals when
you want to use them.
!2
SETUP MIC jack·········································(10)
!3
SYSTEM SETUP button····························(40)
!4
SURR. MODE/SURR. PARA button····(22, 29)
!5
SELECT/ENTER knob··························(29, 40)
#0 @8 @6@9
@7
@3@5 @2 !9 !7@1
@0
!8@4
r y i o !1 !4!2 !5 !6
q
w
t
e
u !0
!3
ru yio
w
e
q
t
!6
Cursor buttons (
DD
,
HH
)·························(22, 40)
!7
MASTER VOLUME control knob··············(19)
!8
TUNING buttons (•, ª) ·····························(31)
!9
STATUS button··········································(20)
@0
DIMMER button·········································(20)
@1
VIDEO SELECT button ······························(33)
@2
OUTPUT indicators······························(22, 36)
@3
Display
@4
INPUT mode indicators·····························(19)
@5
SIGNAL indicators·····································(22)
@6
BAND button··············································(31)
@7 EXT. IN button············································(19)
@8
Remote control sensor································(3)
@9
INPUT MODE button·································(19)
#0
INPUT SELECTOR knob ····························(19)
• The SELECT/ENTER knob on the main unit operates in
the same way as the Cursor buttons (
FF
and
GG
) on
the remote control unit.
• The control functions in the same way as the
Cursor
FF
button when turned counterclockwise,
as the Cursor
GG
button when turned clockwise.
• The control functions in the same way as the
ENTER button when pressed the knob.

Denon AVR-1707 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Total Harmonic Distortion (THD)	0.7 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Product color	Silver
Audio decoders	DTS, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx
Apple docking compatibility	iPod
Digital Signal Processing (DSP)	Yes
HDMI in	0
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	3
Optical drive included	No

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	11400 g
