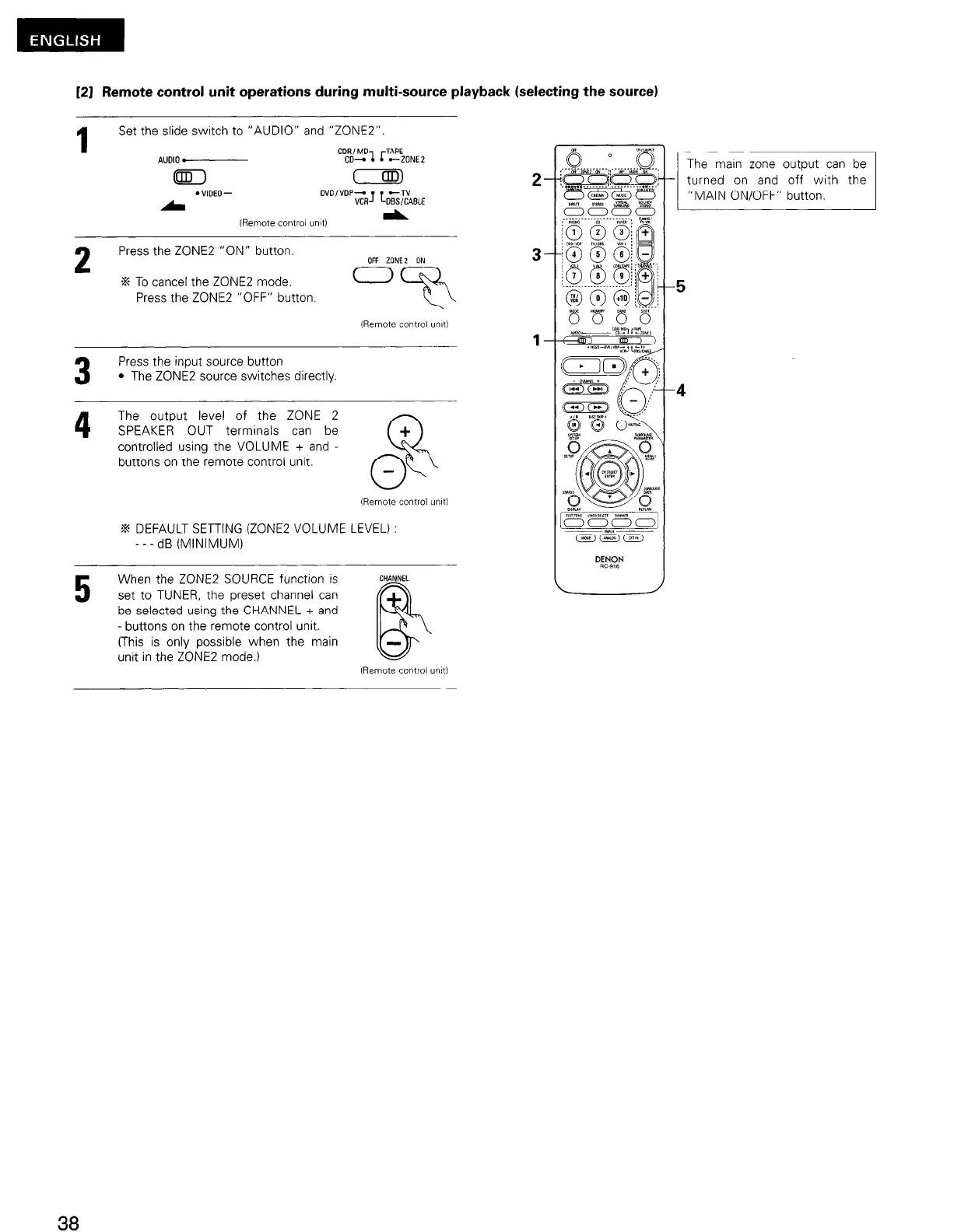

[2] Remote control unit operations during multi-source playback (selecting the source)
1
Set the slide switch to “AUDIO” and “ZONE2”.
AUDIO.
““c”!Yl CT%lNE*
m
I
2
. VIDEO-
A
DvD’vDpi$J LDt$lBLE
iRemote control Unit)
A
2
Press the ZONE2 “ON” button.
OR ZONE2 ON
3% To cancel the ZONE2 mode.
Press the ZONE2 “OFF” button.
IRemote control Unit)
1
3
Press the input source button
l The ZONE2 source switches directly.
4
The output level of the ZONE 2
SPEAKER OUT terminals can be
+
controlled using the VOLUME + and -
buttons on the remote control unit.
%
0
(Remote control un~tl
% DEFAULT SETTING (ZONE2 VOLUME LEVEL) :
---dB (MINIMUM)
5
When the ZONE2 SOURCE function is
CHANNEL
set to TUNER, the preset channel can
be selected using the CHANNEL + and
- buttons on the remote control unit.
(This is only possible when the main
-
unit in the ZONE2 mode.)
f!b
(Remote control unit)
The main zone output can be
- turned on and off with the
ON/OFF” button.
38

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
