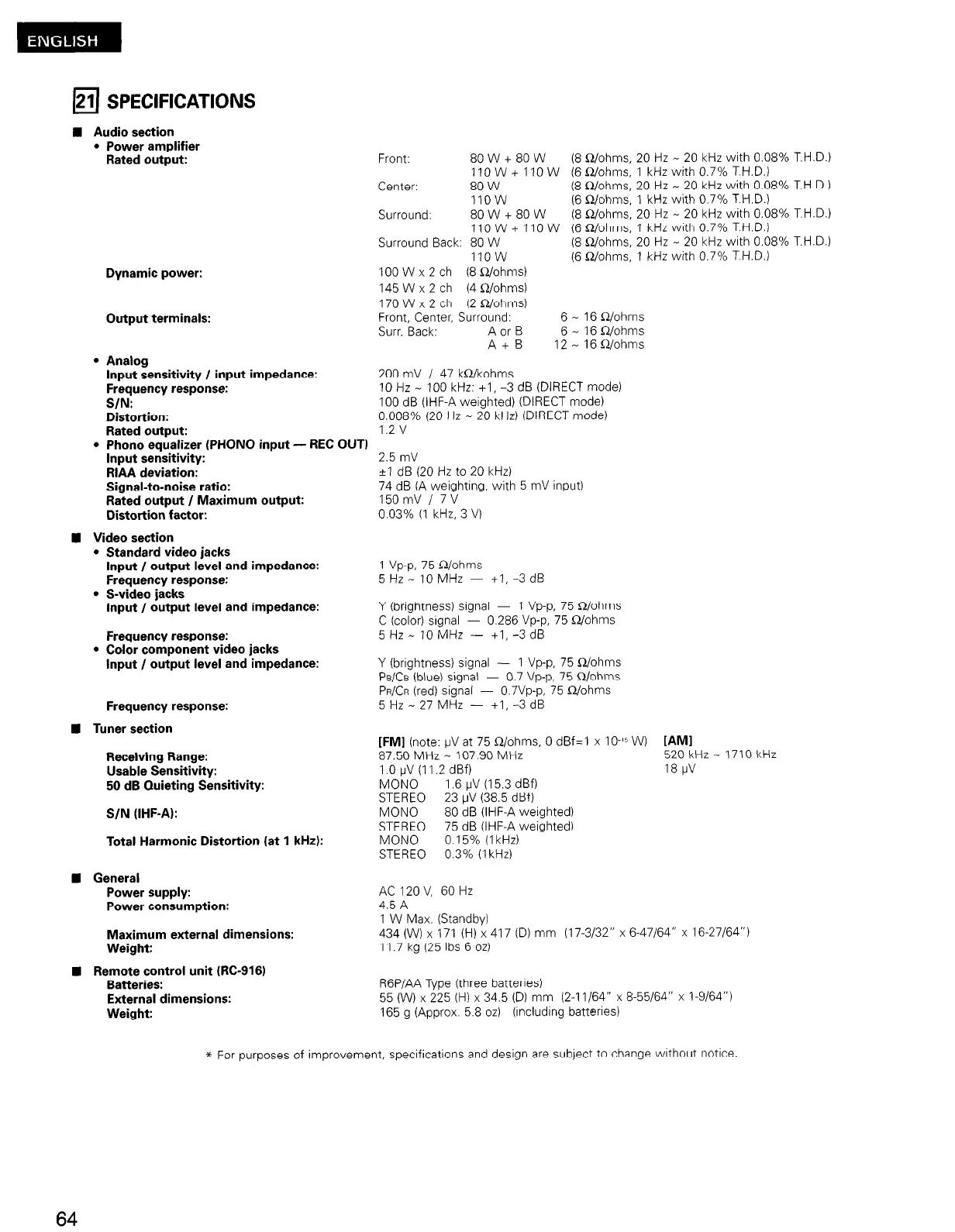

21 SPECIFICATIONS
fl Audio section
l Power amplifier
Rated output:
Front: 80 W + 80 W (8 R/ohms, 20 Hz - 20 kHz with 0.08% T.H.D.)
110 W + 110 W 16 R/ohms. 1 kHz with 0.7% T.H.D.)
Dynamic power:
Output terminals:
Center: 80 W
(8 R/ohms, 20 Hz - 20 kHz with 0.08% T.H.D.)
IIOW
(6 Q/ohms, 1 kHz with 0.7% T.H.D.)
Surround:
80 W + 80 W
(8 Q/ohms, 20 Hz - 20 kHz with 0.08% T.H.D.)
110 W + 110 W (6 R/ohms, 1 kHz wrth 0.7% T.H.D.)
Surround Back: 80 W
(8 R/ohms, 20 Hz - 20 kHz wrth 0.08% T.H.D.)
IIOW
(6 R/ohms, 1 kHz with 0.7% T.H.D.)
100 W x 2 ch (8 R/ohms)
145 W x 2 ch (4 R/ohms)
170 W x 2 ch (2 R/ohms)
Front, Center, Surround:
6 - 16 Q/ohms
Surr. Back:
A or B
6 - 16 R/ohms
A+B
12 - 16 Q/ohms
l Analog
Input sensitivity / input impedance:
Frequency response:
SIN:
200 mV / 47 kQ/kohms
IO Hz - 100 kHz: +I, -3 dB (DIRECT mode)
100 dB UHF-A weighted) (DIRECT mode)
Distortion:
0.008% (20 Hz - 20 kHz) (DIRECT mode)
Rated output:
1.2 v
l Phono equalizer (PHONO input - REC OUT)
Input sensitivity:
RIAA deviation:
Signal-to-noise ratio:
Rated output / Maximum output:
Distortion factor:
Video section
l Standard video jacks
Input / output level and impedance:
Frequency response:
l S-video jacks
Input / output level and impedance:
Frequency response:
l Color component video jacks
Input / output level and impedance:
Frequency response:
Tuner section
Receiving Range:
Usable Sensitivity:
50 dB Quieting Sensitivity:
S/N (IHF-A):
Total Harmonic Distortion (at 1 kHz):
General
Power supply:
Power consumption:
Maximum external dimensions:
Weight:
Remote control unit (RC-916)
Batteries:
External dimensions:
Weight:
2.5 mV
*I dB (20 Hz to 20 kHz)
74 dB (A weightrng, with 5 mV input)
150mV l7V
0.03% (1 kHz, 3 VI
1 Vp-p, 75 Q/ohms
5 Hz - 10 MHz - +I, -3 dB
Y (brightness) srgnal - 1 Vp-p, 75 R/ohms
C (color) srgnal - 0.286 Vp-p, 75 n/ohms
5Hz-IOMHz - +I,-3dB
Y (brightness) signal - 1 Vp-p, 75 Q/ohms
PB/CB (blue) signal - 0.7 Vp-p, 75 R/ohms
PR/CR (red) signal - 0.7Vp-p, 75 R/ohms
5 Hz - 27 MHz - +I, -3 dB
[FM] (note: uV at 75 R/ohms, 0 dBf=l x lO-‘5 WI
[AMI
87.50 MHz
- 107.90 MHz
520 kHz - 1710 kHz
1 .O uV (11.2 dBf)
MONO
1.6 $I’ (15.3 dBf)
STEREO 23 uV (38.5 dBf)
MONO
80 dB (IHF-A weighted)
STEREO 75 dB (IHF-A weighted)
MONO
0.15% (IkHz)
STEREO 0.3% (1 kHz)
18 uV
AC 12OV. 60 Hz
4.5 A
1 W Max. (Standby)
434 (W) x 171 (H) x 417 (D) mm (17-3/32” x 6-47/64” x 16.27/64”)
11.7 kg (25 Ibs 6 oz)
RGP/AA Type (three batterres)
55 (W) x 225 (H) x 34.5 (D) mm (2-l l/64” x 8-55/64” x l-9/64”)
165 g (Approx. 5.8 oz) (rncludrng batteries)
* For purposes of improvement, specifications and design are subject to change wrthout notice.
64

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
