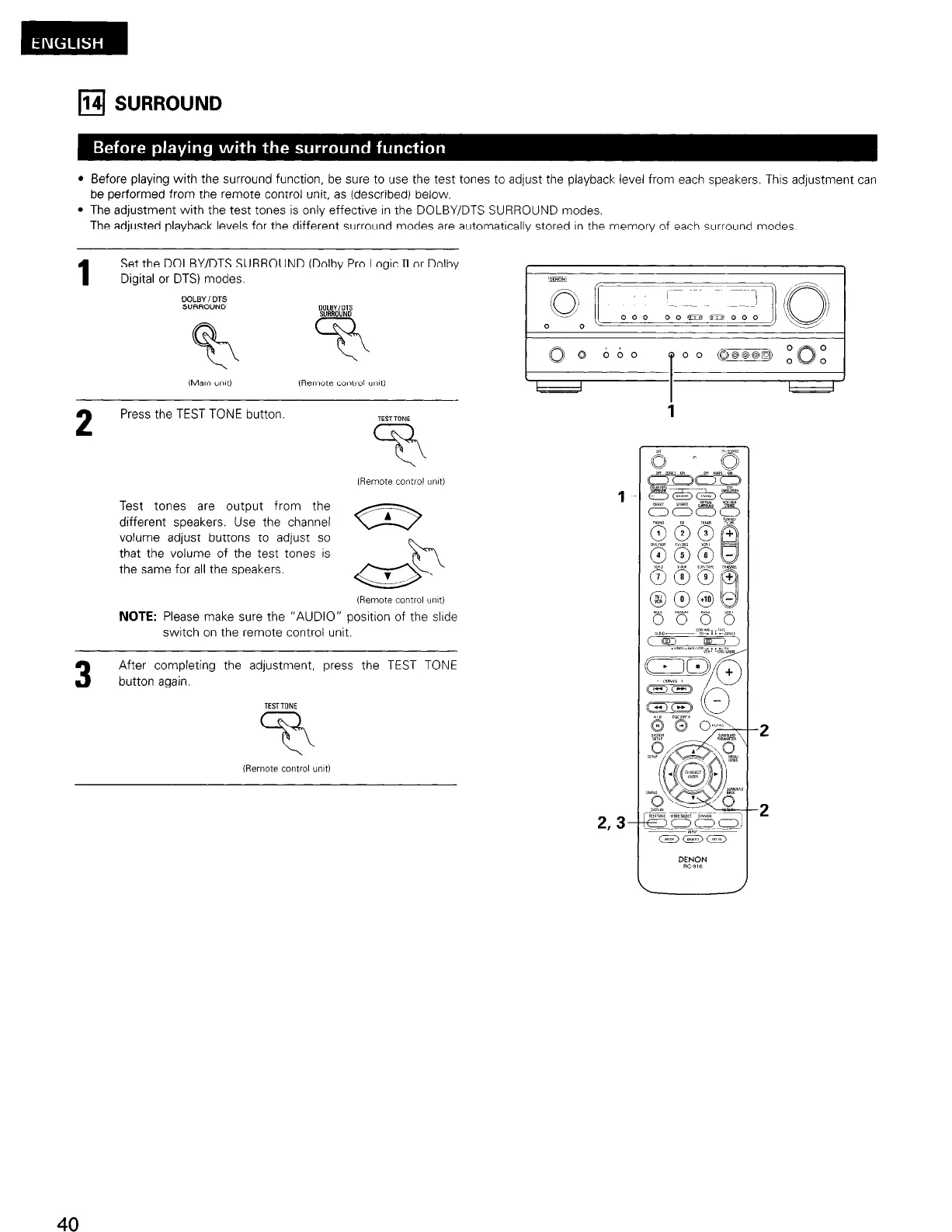

14 SURROUND
l Before playing with the surround function, be sure to use the test tones to adjust the playback level from each speakers. This adjustment can
be performed from the remote control unit, as (described) below.
l The adjustment with the test tones is only effective in the DOLBY/DTS SURROUND modes.
The adjusted playback levels for the different surround modes are automatically stored in the memory of each surround modes.
1
Set the DOLBY/DTS SURROUND (Dolby Pro Logic II or Dolby
Digital or DTS) modes.
DOLBY i DT.s
S”RRO”ND
%
(Mm unit) (Remote control unltl
Press the TEST TONE button.
TESTTCINE
%
mmote Control unit)
Test tones are output from the
different speakers. Use the channel
m
volume adjust buttons to adjust so
that the volume of the test tones is
2-7
the same for all the speakers
(Remote control unltj
NOTE: Please make sure the “AUDIO” position of the slrde
switch on the remote control unit.
3
After completing the adjustment, press the TEST TONE
button again.
I
l-
iRemote control unit)
1
40

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
