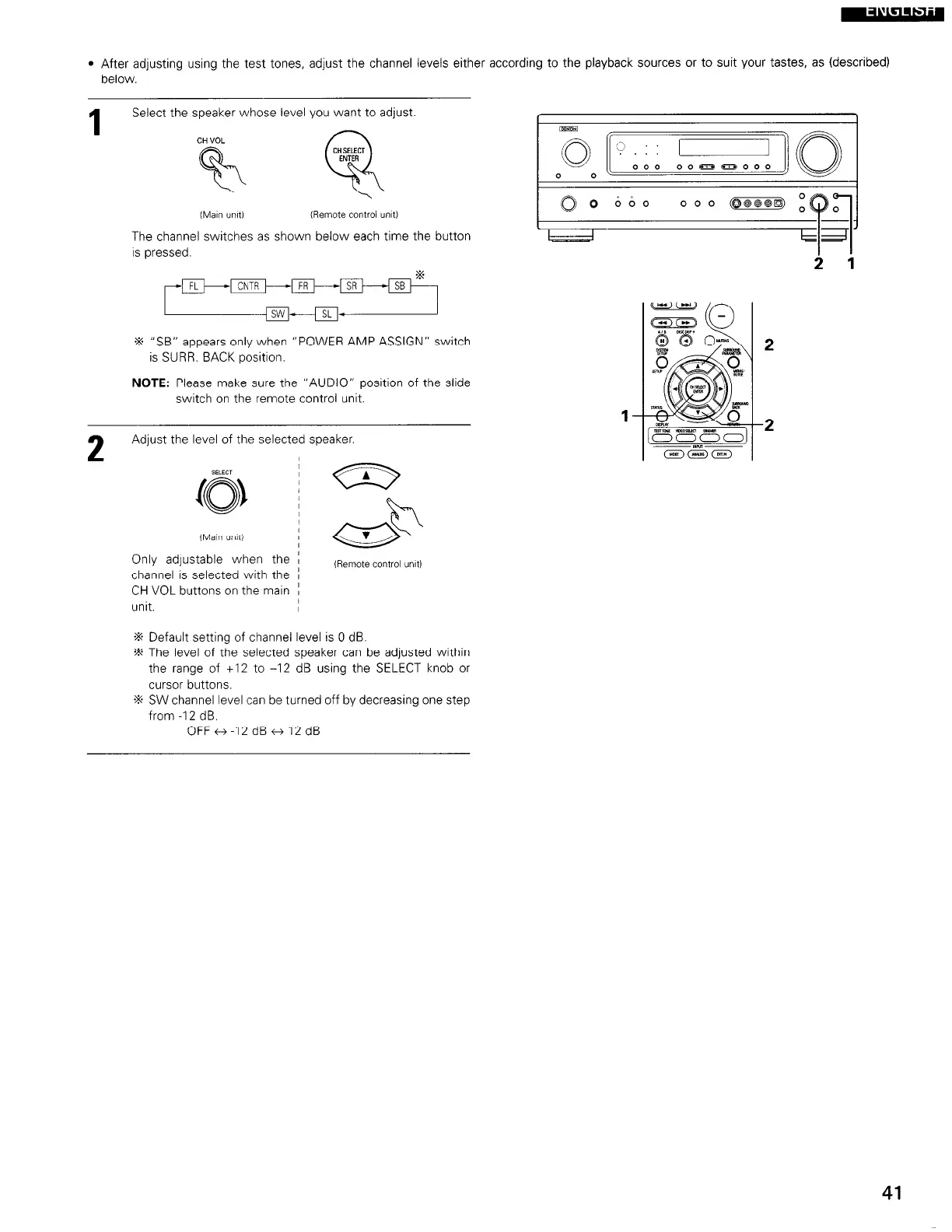

l After adjusting using the test tones, adjust the channel levels either according to the playback sources or to suit your tastes, as (described)
below.
Select the speaker whose level you want to adjust
(Mm unltl
(Remote control unit)
The channel switches as shown below each time the button
is pressed.
IQ0 600 0 0 0 (Qrn) 0 0
@--II
0
tit’
I I
% “SB” appears only when “POWER AMP ASSIGN” switch
is SURR. BACK position.
NOTE: Please make sure the “AUDIO” position of the slide
switch on the remote control unit.
1
Adjust the level of the selected speaker
Only adjustable when the I
channel is selected with the I
IRemote control umtl
CH VOL buttons on the main I
unit.
/
% Default setting of channel level is 0 dB.
.X The level of the selected speaker can be adjusted within
the range of +I2 to -12 dB using the SELECT knob or
cursor buttons.
% SW channel level can be turned off by decreasing one step
from -12 dB.
OFF--12dBti12dB
21
.2
.2
41

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
