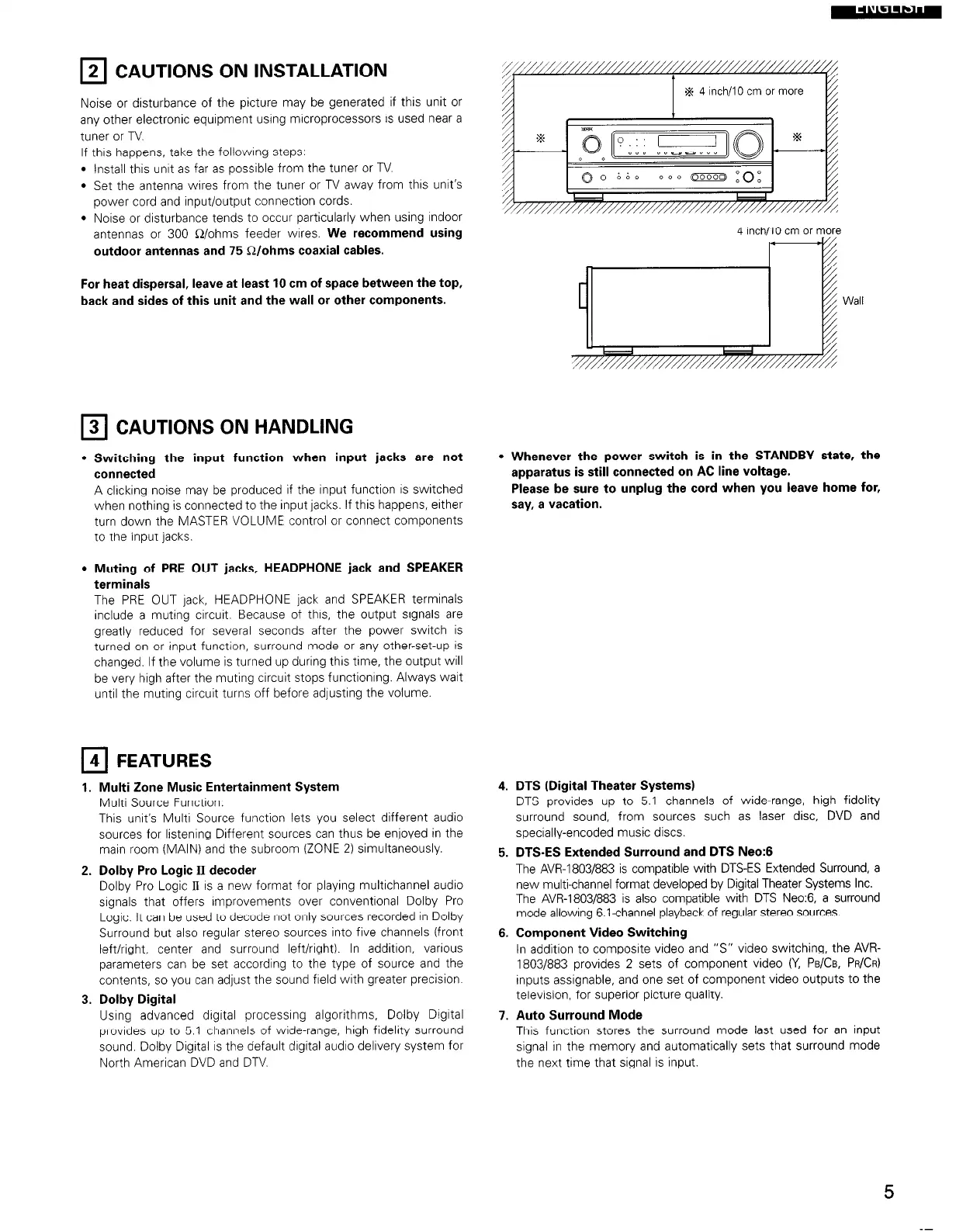

2 CAUTIONS ON INSTALLATION
Noise or disturbance of the picture may be generated if this unit or
any other electronic equipment using microprocessors is used near a
tuner or TV
If thus happens, take the followrng steps:
l Install this unrt as far as possible ,from the tuner or TV.
l Set the antenna wires from the tuner or TV away from this unit’s
power cord and input/output connection cords.
l Noise or disturbance tends to occur particularly when using indoor
antennas or 300 R/ohms feeder wires. We recommend using
outdoor antennas and 75 R/ohms coaxial cables.
For heat dispersal, leave at least 10 cm of space between the top,
back and sides of this unit and the wall or other components.
0
3 CAUTIONS ON HANDLING
l Switching the input function when input jacks are not
connected
A clicking noise may be produced if the input function is switched
when nothing is connected to the input jacks. If this happens, either
turn down the MASTER VOLUME control or connect components
to the input jacks.
l Muting of PRE OUT jacks, HEADPHONE jack and SPEAKER
terminals
The PRE OUT jack, HEADPHONE jack and SPEAKER terminals
include a muting crrcuit. Because of this, the output signals are
greatly reduced for several seconds after the power switch is
turned on or input function, surround mode or any other-set-up is
changed. If the volume is turned up during this time, the output will
be very high after the muting circuit stops functionrng. Always wait
until the muting circuit turns off before adjusting the volume.
0
4 FEATURES
1. Multi Zone Music Entertainment System
Multi Source Function:
This unit’s Multi Source function lets you select different audio
sources for listening Different sources can thus be enjoyed in the
main room (MAIN) and the subroom (ZONE 2) simultaneously.
2. Dolby Pro Logic II decoder
Dolby Pro Logic II is a new format for playing multichannel audto
srgnals that offers improvements over conventional Dolby Pro
Logic. It can be used to decode not only sources recorded in Dolby
Surround but also regular stereo sources into five channels (front
left/right, center and surround left/right). In addition, various
parameters can be set according to the type of source and the
contents, so you can adjust the sound field with greater precision
3. Dolby Digital
Using advanced digital processing algorithms, Dolby Digital
provides up to 5.1 channels of wide-range, high fidelity surround
sound. Dolby Digital is the default drgital audro delivery system for
North American DVD and DTV.
.
4 inch/l 0 cm or more
Whenever the power switch is in the STANDBY state, the
apparatus is still connected on AC line voltage.
Please be sure to unplug the cord when You leave home for,
say, a vacation.
4. DTS (Digital Theater Systems)
DTS provides up to 5.1 channels of wide-range, high fidelity
surround sound, from sources such as laser disc, DVD and
specially-encoded music discs.
5. DTS-ES Extended Surround and DTS Neo:B
The AVR-1803/883 is compatible with DTS-ES Extended Surround, a
new multi-channel format developed by Digital Theater Systems Inc.
The AVR-1803/883 is also compatible with DTS Neo:6, a surround
mode allowing G.lchannel playback of regular stereo sources.
6. Component Video Switching
In addition to composrte video and “S” video switching, the AVR-
1803/883 provides 2 sets of component video (Y, PB/CB, PR/CR)
inputs assignable, and one set of component video outputs to the
television, for superior picture quality.
7. Auto Surround Mode
This function stores the surround mode last used for an input
signal in the memory and automatically sets that surround mode
the next time that signal is input.
5
