Denon AVR-1803 User Manual

Ll

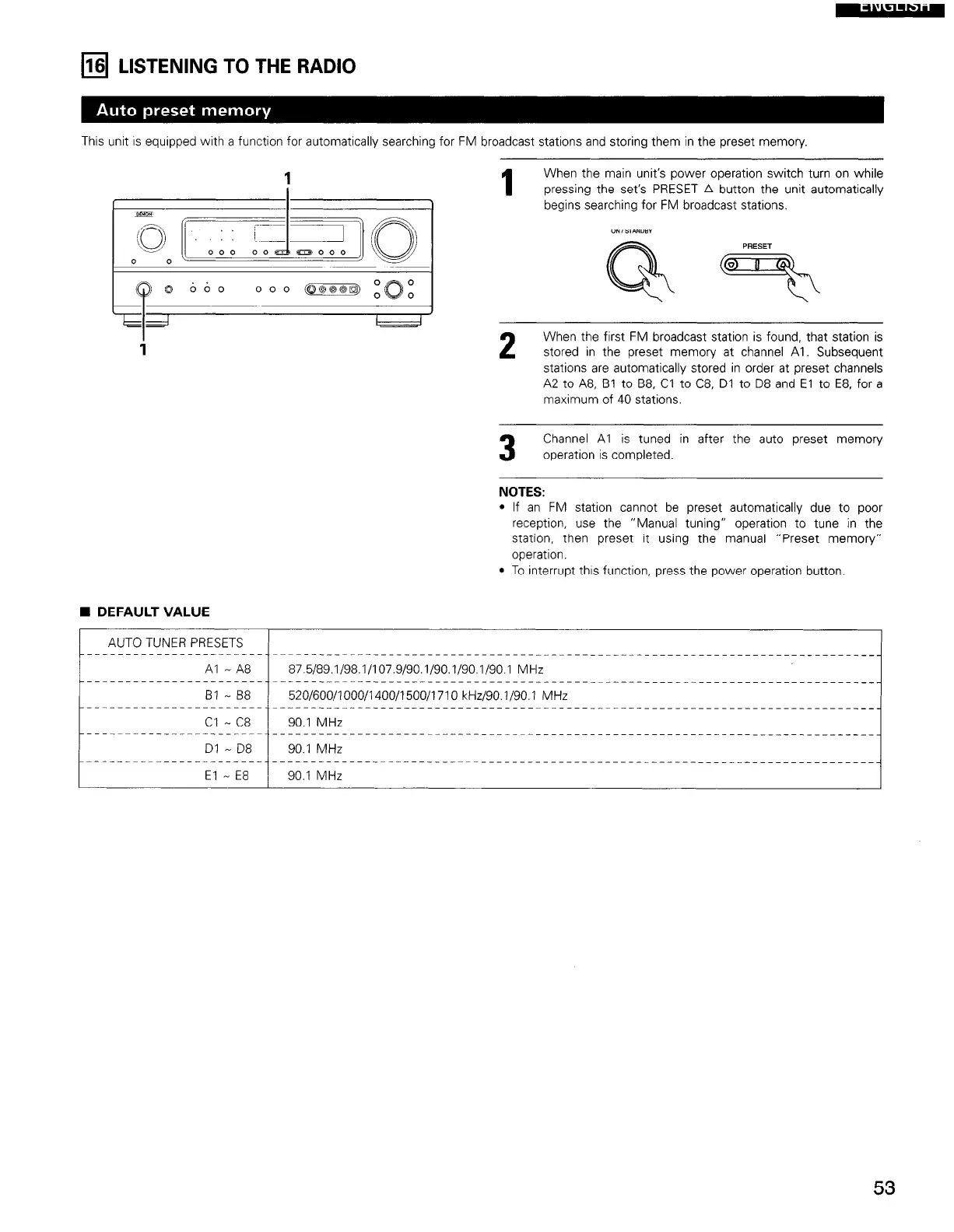

16 LISTENING TO THE RADIO
This unit is equipped with a function for automatically searching for FM broadcast
stations and storing them in the preset memory.
1
When the main unit’s power operation switch turn on while
pressing the set’s PRESET A button the unit automatically
begins searching for FM broadcast stations.
I,
2
When the first FM broadcast station is found, that station is
stored in the preset memory at channel Al. Subsequent
stations are automatically stored in order at preset channels
A2 to A8, Bl to B8, Cl to C8, Dl to D8 and El to E8, for a
maximum of 40 stations.
H DEFAULT VALUE
AUTO TUNER PRESETS
Al -A8
Bl - B8
Cl - C8
Dl - D8
El - E8
3
Channel Al is tuned in after the auto preset memory
operation is completed.
NOTES:
l If an FM station cannot be preset automatically due to poor
reception, use the “Manual tuning” operation to tune in the
station, then preset it using the manual “Preset memory”
operation.
l To interrupt thus function, press the power operation button.
87.5/89.1/98.1/107.9/90.1/90.1/90.1/90.1 MHz
520/600/l 000/l 400/I 500/1710 kHz/90.1/90.1 MHz
90.1 MHz
90.1 MHz
90.1 MHz
53

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
