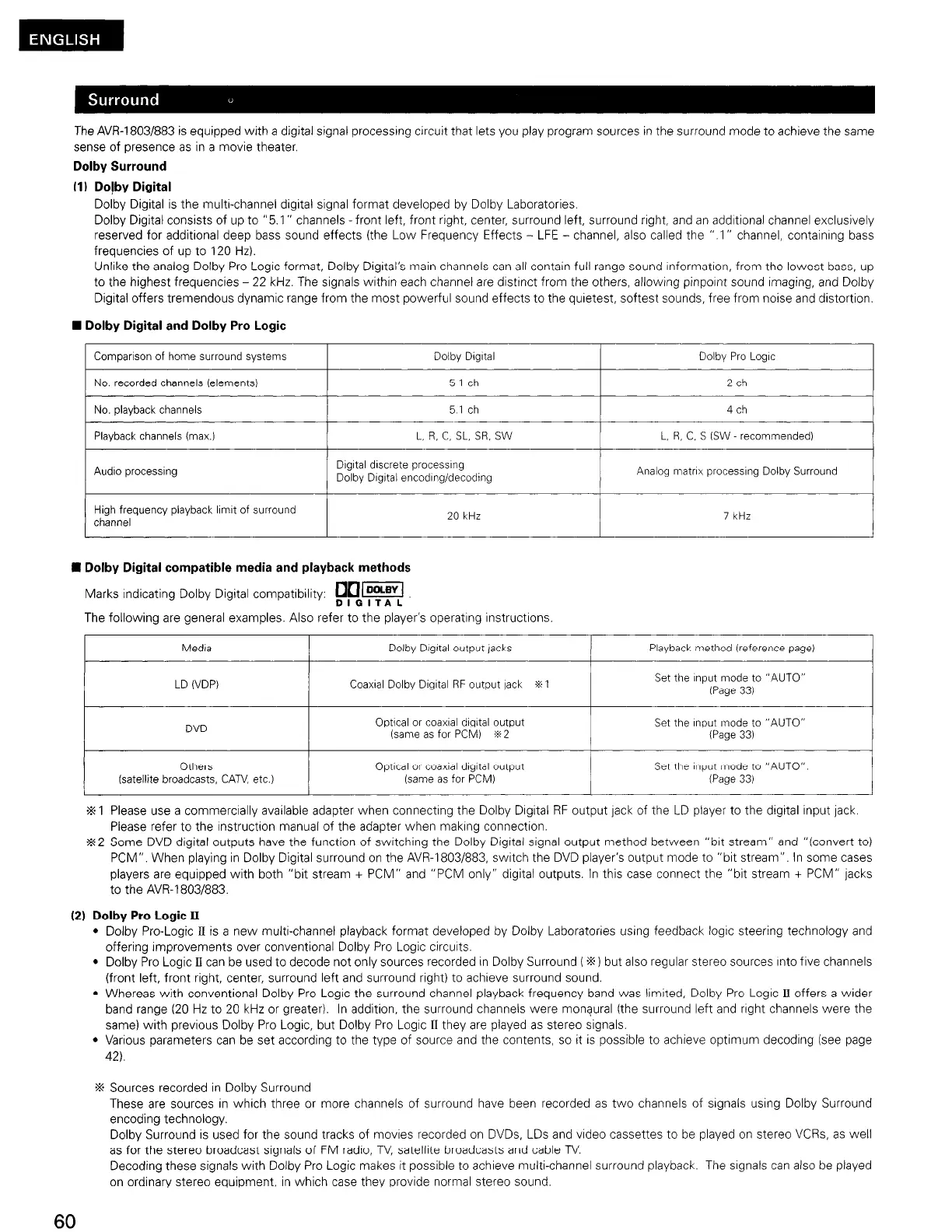

The AVR-1803/883 is equipped with a digital signal processtng circuit that lets you play program sources in the surround mode to achieve the same
sense of presence as in a movie theater.
Dolby Surround
(1) Dolby Digital
Dolby Digital is the multi-channel digital signal format developed by Dolby Laboratories.
Dolby Digital consists of up to “5.1 ” channels -front left, front right, center, surround left, surround right, and an addltional channel exclusively
reserved for additional deep bass sound effects (the Low Frequency Effects - LFE - channel, also called the “.I ” channel, containing bass
frequencies of up to 120 Hz).
Unlike the analog Dolby Pro Logic format, Dolby Digital’s main channels can all contain full range sound Information, from the lowest bass, up
to the highest frequencies - 22 kHz. The signals within each channel are disttnct from the others, allowtng pinpolnt sound imaging, and Dolby
Digital offers tremendous dynamic range from the most powerful sound effects to the quietest, softest sounds, free from noise and distortion.
W Dolby Digital and Dolby Pro Logic
Comparison of home surround systems
I
Dolby Digltal
I
Dolby Pro Logic
I
No. recorded channels (elements) 5 1 ch
No. playback channels 5.1 ch
Playback channels (max.) L, R, c, SL, SR. SW
2 ch
4 ch
L, R, C. S (SW recommended)
DIgItal discrete processing
Dolby DIgItal encodlngidecoding
Analog matrix processing Dolby Surround
High frequency playback limit of surround
channel
I
20 kHz 7 kHz
n Dolby Digital compatible media and playback methods
Marks indicating Dolby Digital compatibility:
The following are general examples. Also refer to the player’s operating instructlons.
Media Dolby Dlgttal output lacks
I
Playback method (reference page)
I
LD (VDP) Coaxial Dolby Digital RF output lack II
Set the input mode to “AUTO’
(Page 33)
DVD
I
Optical or coaxial dIgital output
Set the Input Imode to “AUTO”
(same as for PCM) a2
(Page 33)
Others
(satellite broadcasts, CATV, etc.)
Optical or coaxial digltal output
(same as for PCM)
Set the Input mode to “AUTO”
(Page 33)
% 1 Please use a commercially available adapter when connecting the Dolby DIgital RF output lack of the LD player to the digital input jack.
Please refer to the instruction manual of the adapter when maklng connection.
%2 Some DVD digital outputs have the function of switching the Dolby Digital signal output method between “bit stream” and “(convert to)
PCM”. When playing in Dolby Digital surround on the AVR-18031883, switch the DVD player’s output mode to “bit stream”. In some cases
players are equipped with both “bit stream + PCM” and “PCM only” digital outputs. In this case connect the “bit stream t- PCM” jacks
to the AVR-1803/883.
(2) Dolby Pro Logic II
l Dolby Pro-Logic II is a new multi-channel playback format developed by Dolby Laboratories using feedback logic steering technology and
offering Improvements over conventional Dolby Pro Logic circuits.
l Dolby Pro Logic II can be used to decode not only sources recorded in Dolby Surround ( .X) but also regular stereo sources Into five channels
(front left, front right, center, surround left and surround right) to achieve surround sound.
l Whereas with conventional Dolby Pro Logic the surround channel playback frequency band was limited, Dolby Pro Logic II offers a wider
band range (20 Hz to 20 kHz or greater). In addition, the surround channels were monaural (the surround left and rtght channels were the
same) with previous Dolby Pro Logic, but Dolby Pro Logic II they are played as stereo signals.
l Various parameters can be set according to the type of source and the contents, so it is possible to achieve optimum decoding (see page
42).
+% Sources recorded in Dolby Surround
These are sources in which three or more channels of surround have been recorded as two channels of signals using Dolby Surround
encoding technology.
Dolby Surround is used for the sound tracks of movies recorded on DVDs, LDs and video cassettes to be played on stereo VCRs, as well
as for the stereo broadcast signals of FM radio, TV, satellite broadcasts and cable TV.
Decoding these signals with Dolby Pro Logic makes it possible to achieve multi-channel surround playback. The signals can also be played
on ordinary stereo equipment, in which case they provide normal stereo sound.
60

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
