Denon AVR-1910 User Manual


Getting Started
Playback Remote Control Information Troubleshooting
Specifications
ENGLISH
Multi-ZoneSettings
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor (TV)

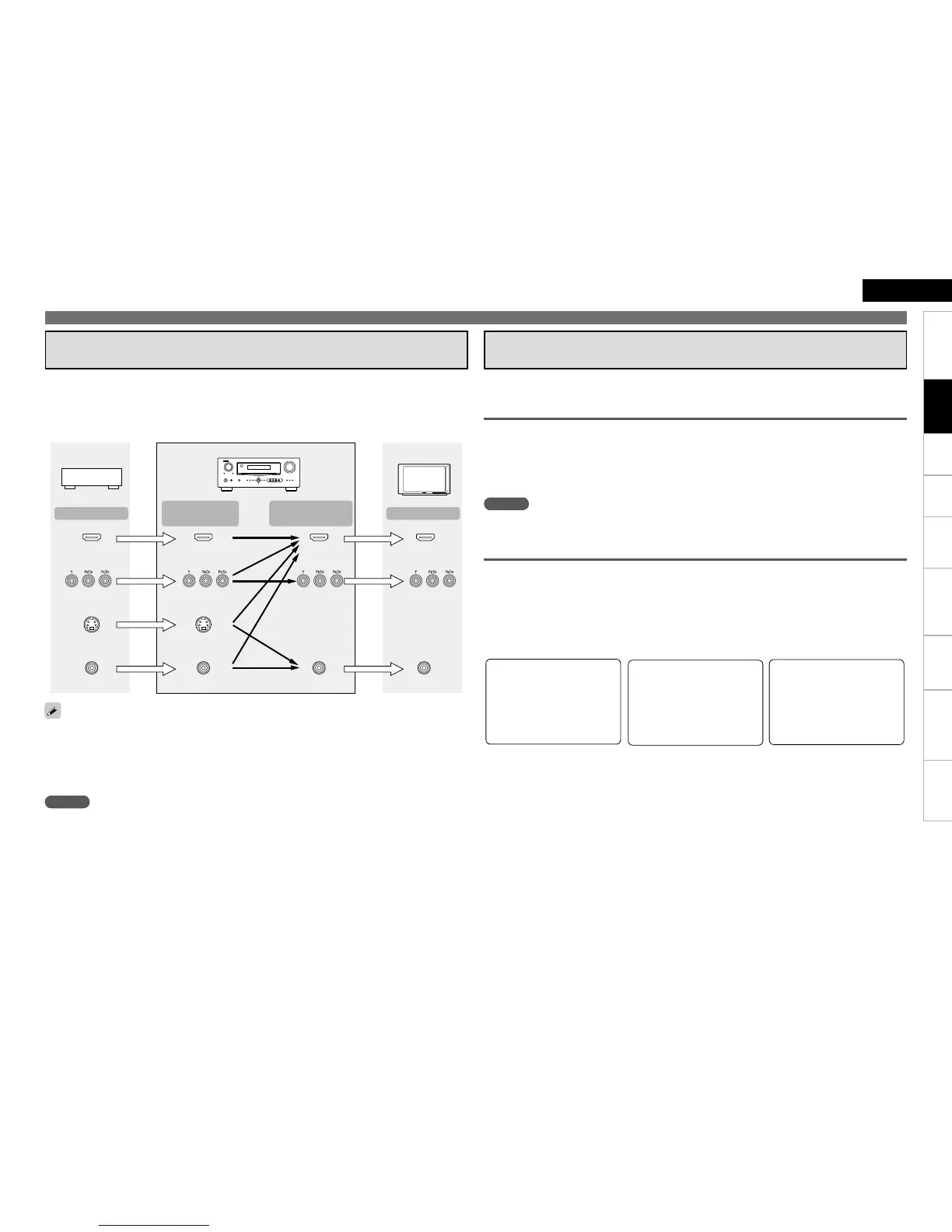

Converting Input video signals for Output
(Video Conversion Function)
The AVR-1910 is equipped with four types of video input terminals (HDMI, Component video, S-Video and
video) and three types of video output terminals (HDMI, Component video and video).
Use the terminals according to the devices to be connected.
This function automatically converts various formats of video signals input to the AVR-1910 into the format
used to output the video signals from the AVR-1910 to a monitor.
• The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60
formats.
• The resolution of the video signal input to the AVR-1910’s HDMI terminal is the resolution set at
“Resolution” (vpage 34). (1080p HDMI signals and 1080p component signals are output at 1080p,
regardless of the setting.)
• Resolutions of HDMI-compatible TVs can be checked at “HDMI Information” (vpage 48).
NOTE
• The S-Video input terminal is exclusively for use with a Control Dock for iPod. It can be used when the
Control Dock for iPod is connected to the terminal assigned to the iPod input source.
• HDMI signals cannot be converted into analog signals.
• When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
Important Information
HDMI connector
Component video
connectors
S-Video
connector
Video connector
HDMI
connector
Component video
connectors
Video connector
HDMI connector
Component video
connectors
Video connector
Video devices
AVR-1910
Output
Input
(IN)
Output
(MONITOR OUT)
Input
The way the on-screen display of the menus, status, etc., is displayed differs according to the type of video
signal input to the AVR-1910.
How the on-screen display is displayed depending on the
video input signal
When video signals are input from the HDMI or component video terminals
Menu: Switches to a screen with a black background and the menu is superimposed. (b1)
Status display: Not displayed.
b1: If you want to display the menus superimposed on the picture being played, input the same video
signals to the video terminals. When a menu is displayed, the picture switches to the one being input
from the video terminals and the menu is displayed superimposed over this picture.
•
•
When video signals are being input from the S-Video or video terminals
Menu: Menus are displayed superimposed over the picture being played.
Status display: Displayed.
•
•
Examples of on-screen display
Menu screen• Status display screen•
When the input source is
switched
When the volume is adjusted
MENU
1.Parameter
2.Information
3.Auto Setup
4.Manual Setup
5.Input Setup
[ENT]:Select
MODE:STEREO
IN :DVD
[Auto]
Master Volume -80.0dB
Status display: The operating status is displayed temporarily on the
screen when the input source is switched or the
volume is adjusted.
n
NOTE
Menus and status display screens are not displayed for component video terminal pictures. To
display them, also connect the video terminals.
Connections

Denon AVR-1910 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
Equalizer	Yes
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby TrueHD
Apple docking compatibility	iPod
Optical drive included	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
HDMI in	4
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	171 mm
Width	434 mm
Height	377 mm
Weight	10700 g
