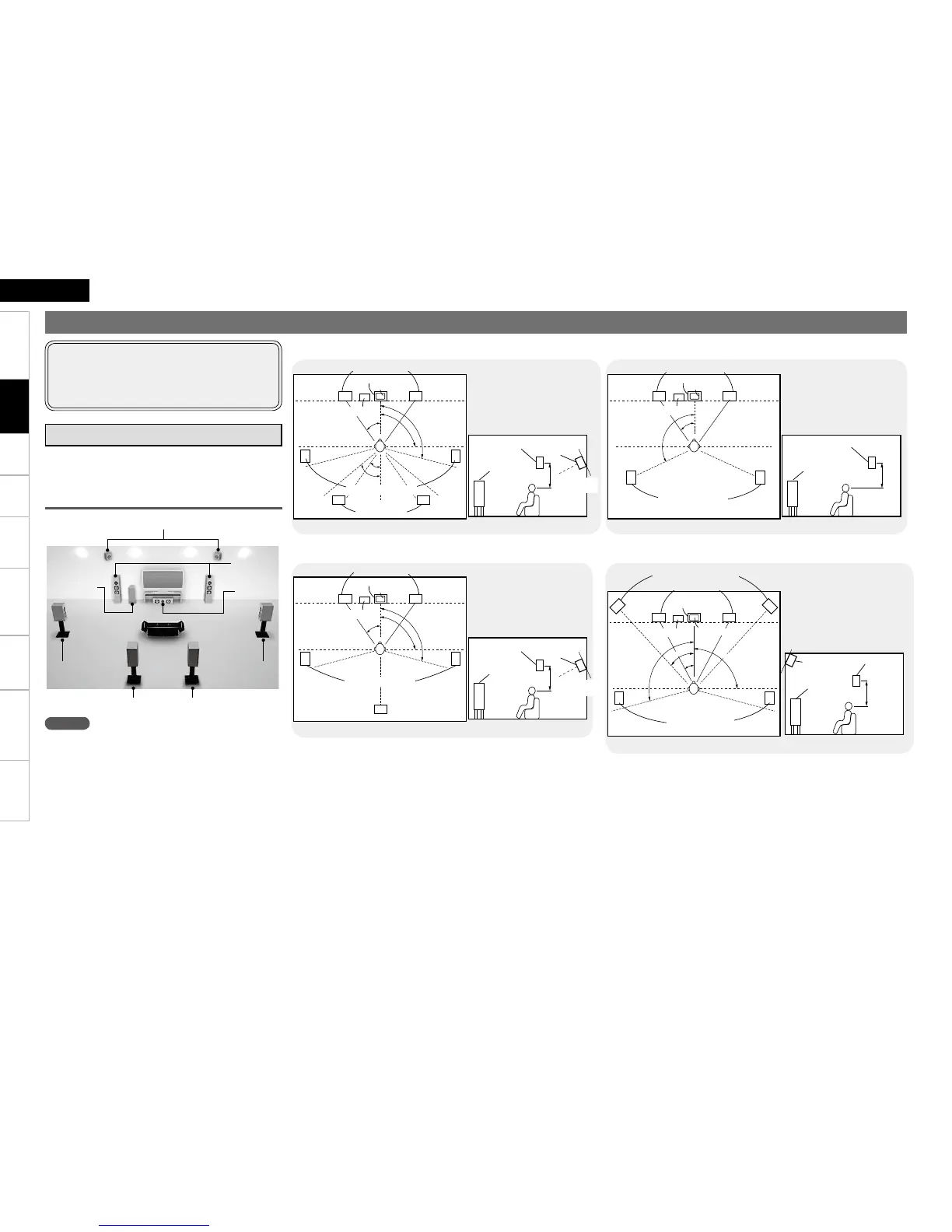

Installing/Setting the Speakers
NOTE
It is not possible to use the front height speakers and
surround back speakers simultaneously.
• The AVR-1910 is compatible with various types
of surround playback.
• Decide on the surround modes to be played on
the AVR-1910 before making connections and
settings.
Below we introduce examples of speaker layouts. Refer
to these to arrange your speakers according to their
type and how you want to use them.
Installing All the Speakers
Surround back speakers
Center
speaker
Front
speakers
Subwoofer
Front Height speakers
Surround
speaker
Surround
speaker
z
1
z4
z
5
z
2
z
3
Monitor
Center speaker
Subwoofer
G
As seen from above
H
z1: 22 ~ 30˚
z2: 90˚
z3: 110˚
Surround back
speaker
G
As seen from the side
H
Surround speakers
Surround
speaker
Front
speaker
60 to 90 cm
Point slightly
downwards
Surround back
speakers
Front speakers
When 7.1ch (Surround Back Speaker) Connectedn
z4: 30˚
z5: 45˚
z
1
z
2
z3
Front speakers
G
As seen from above
H G
As seen from the side
H
Monitor
Center speaker
z1: 22 ~ 30˚
z2: 90˚
z3: 110˚
Subwoofer
Surround speakers
Surround back
speaker
Front
speaker
Surround
speaker
Surround back
speaker
Point slightly
downwards
60 to 90 cm
z
1
z
2
Surround speakers
Front speakers
Monitor
Center speaker
Subwoofer
z1: 22 ~ 30˚
z2: 120˚
Front
speaker
Surround
speaker
60 to 90 cm
G
As seen from above
H G
As seen from the side
H
When 6.1ch Connectedn
When 5.1ch Connectedn
z4
z
2
z
1
z
3
Front speakers
Subwoofer
Monitor
Surround speakers
Center speaker
Front height speakers
G
As seen from above
H
z1: 30˚
z2: 45˚
Surround
speaker
Front height
speaker
Point slightly
downwards
60 to 90 cm
G
As seen from the side
H
Front speaker
When 7.1ch (Front Height Speaker) Connectedn
z3: 90˚
z4: 110˚
a Determine the Speaker Layout.
Connections

Denon AVR-1910 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
Equalizer	Yes
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby TrueHD
Apple docking compatibility	iPod
Optical drive included	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
HDMI in	4
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	171 mm
Width	434 mm
Height	377 mm
Weight	10700 g
