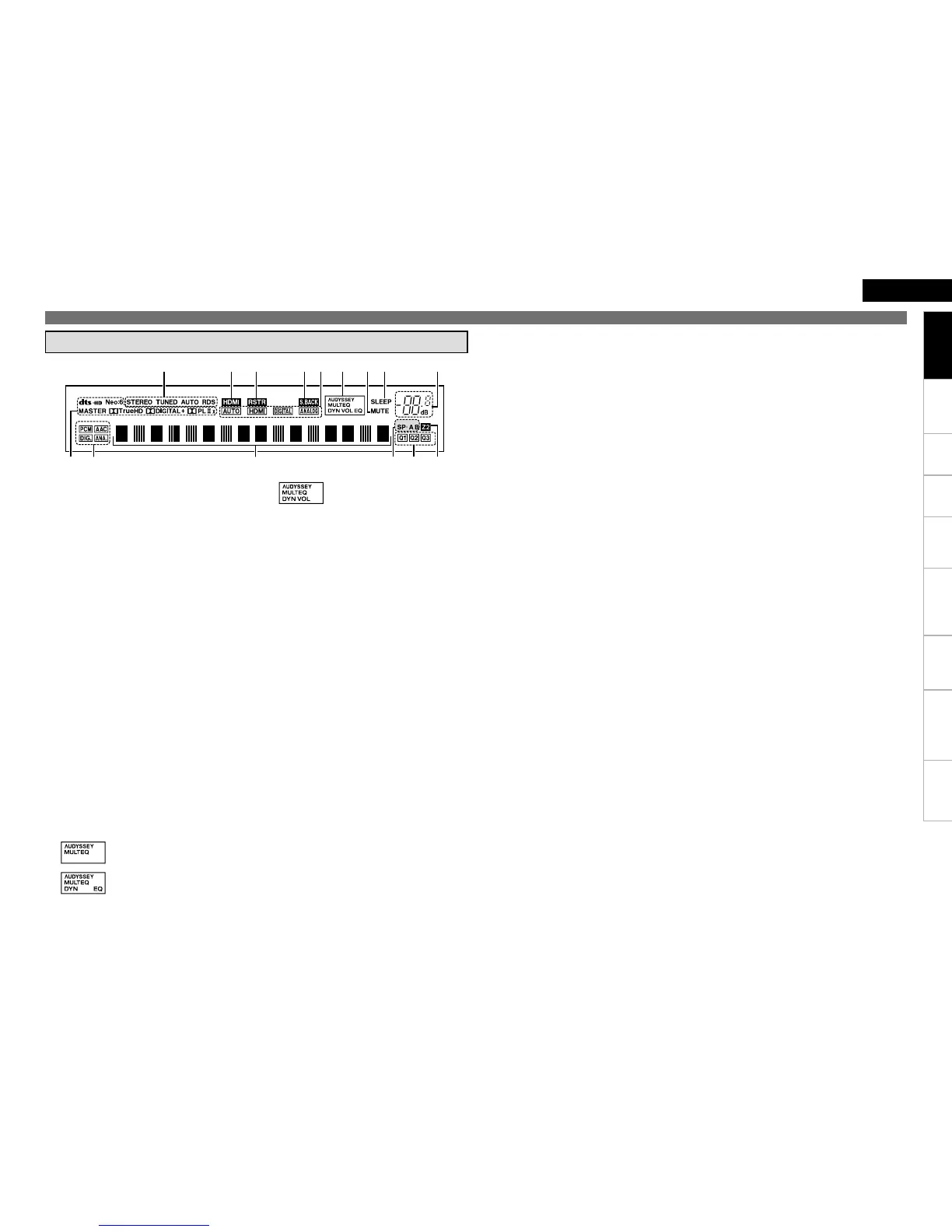

q Decoder indicators
The indicator for the currently operating decoder
lights.
w Input audio signal indicators
e Information display
The input source name, surround mode, setting
values and other information are displayed
here.
r Front speaker indicator
These light according to the settings of the
front A and B speakers (vpage 41).
t QUICK SELECT indicators
These light when the Quick Select function is
set (vpage 50).
y ZONE2 indicator
Lights when signals are being output to the
ZONE2 (vpage 51).
u Master volume indicator
When performing setting operations, displays
the menu number.
i SLEEP TIMER indicator
Lights when the sleep timer is operating
(vpage 49).
o MUTE indicator
Lights when the muting mode is set (vpage
41).
Q0 AUDYSSEY indicator
These light as shown below in the different
modes (vpage 46).
: During “MultEQ” operation
: During “MultEQ” , “Dynamic EQ”
operation
: During “MultEQ” , “Dynamic EQ”,
“Dynamic Volume” operation
b When speaker settings are changed after
the Audyssey Auto Setup procedure, either
the indicators’ frame turns off or all the
indicators turn off.
Q1 Input mode indicators
Q2 S.BACK indicator
Lights when audio signals are being output from
the surround back speakers (vpage 26).
Q3 RESTORER indicator
Lights during “RESTORER” operation (vpage
47).
Q4 HDMI indicator
Lights when HDMI input signals are detected
(vpage 13).
Q5 Tuner reception mode indicators
This lights according to the reception conditions
when the input source is set to “TUNER”.
• RDS
This lights when receiving RDS broadcasts.
• AUTO
This lights when in the auto tuning mode.
• STEREO
In the FM mode, this lights when receiving
analog stereo broadcasts.
• TUNED
This lights when the broadcast is properly
tuned in.
