AVR-2801/981
DISASSEMBLY
(Follow the procedure below in reverse order when reassembling)

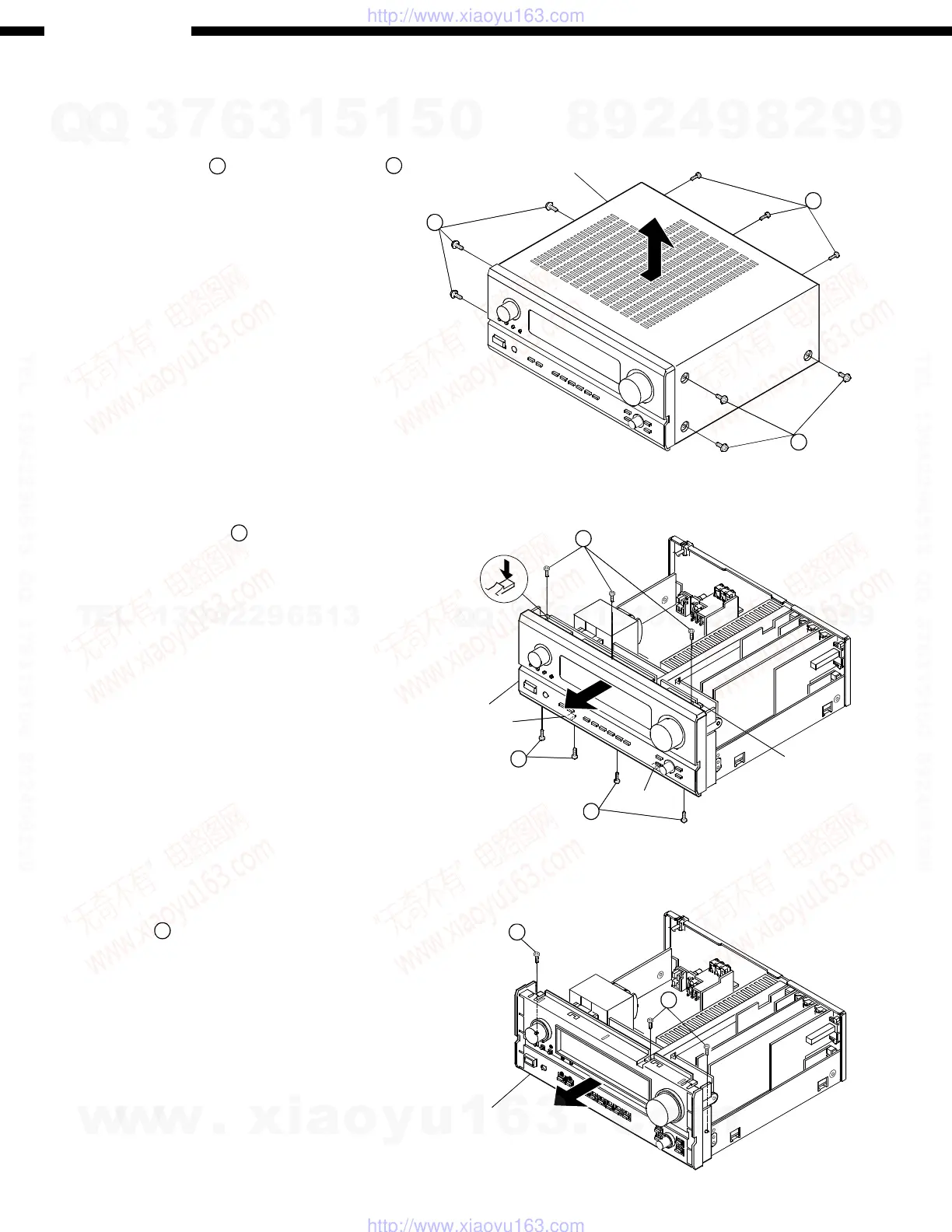

1. Top Cover
Remove 3 screws on the rear and 6 screws on both
sides to detach the Top Cover as shown in the arrow
direction.
2. Front Panel
(1) Remove 7 screws from the top and bottom edges of
the Front Panel.
(2) Release 4 top and bottom hooks, then detach the Front
Panel as shown in the arrow direction.
Top Cover
Front panel
1
2
3
3. Inner Panel
Pull out the Inner Panel in the arrow direction after removing
3 screws .
4
Inner panel
Hook
Hook
1
2
2
3
3
3
4
4
Hook
