Speaker connection
Connecting 7.1-channel speakers using front height speakers

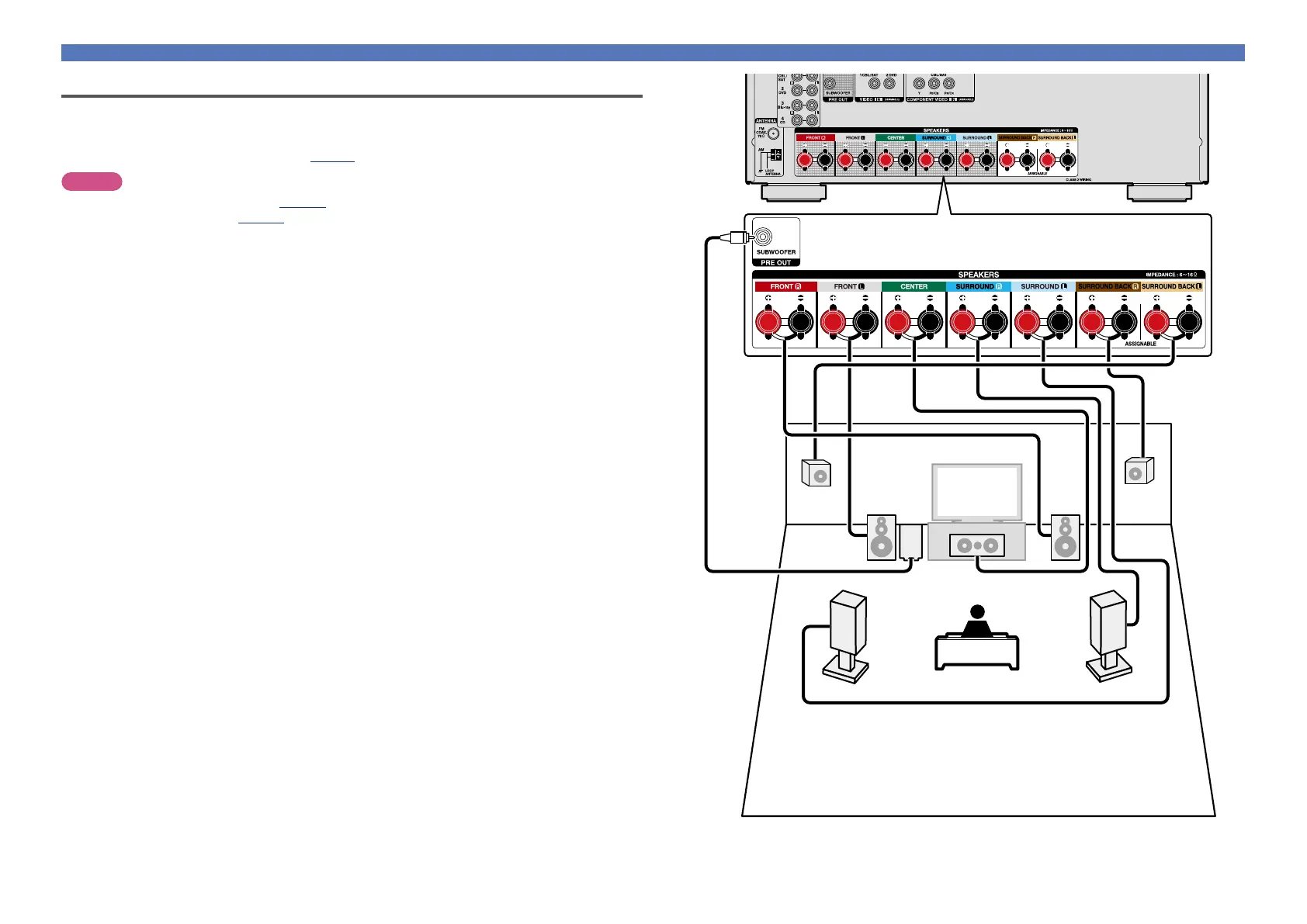

The illustration on the right shows a connection example for performing 7.1-channel playback using the
front height speakers.
To perform 7.1-channel playback using the front height speaker, set “Assign Mode” to “Front Height” in
steps 3 to 5 for “Set up “Amp Assign”” (vpage86).
NOTE
•For speaker cable connections, see page79.
•For speaker impedance, see page79.
