Denon AVR-X2400H Service Manual

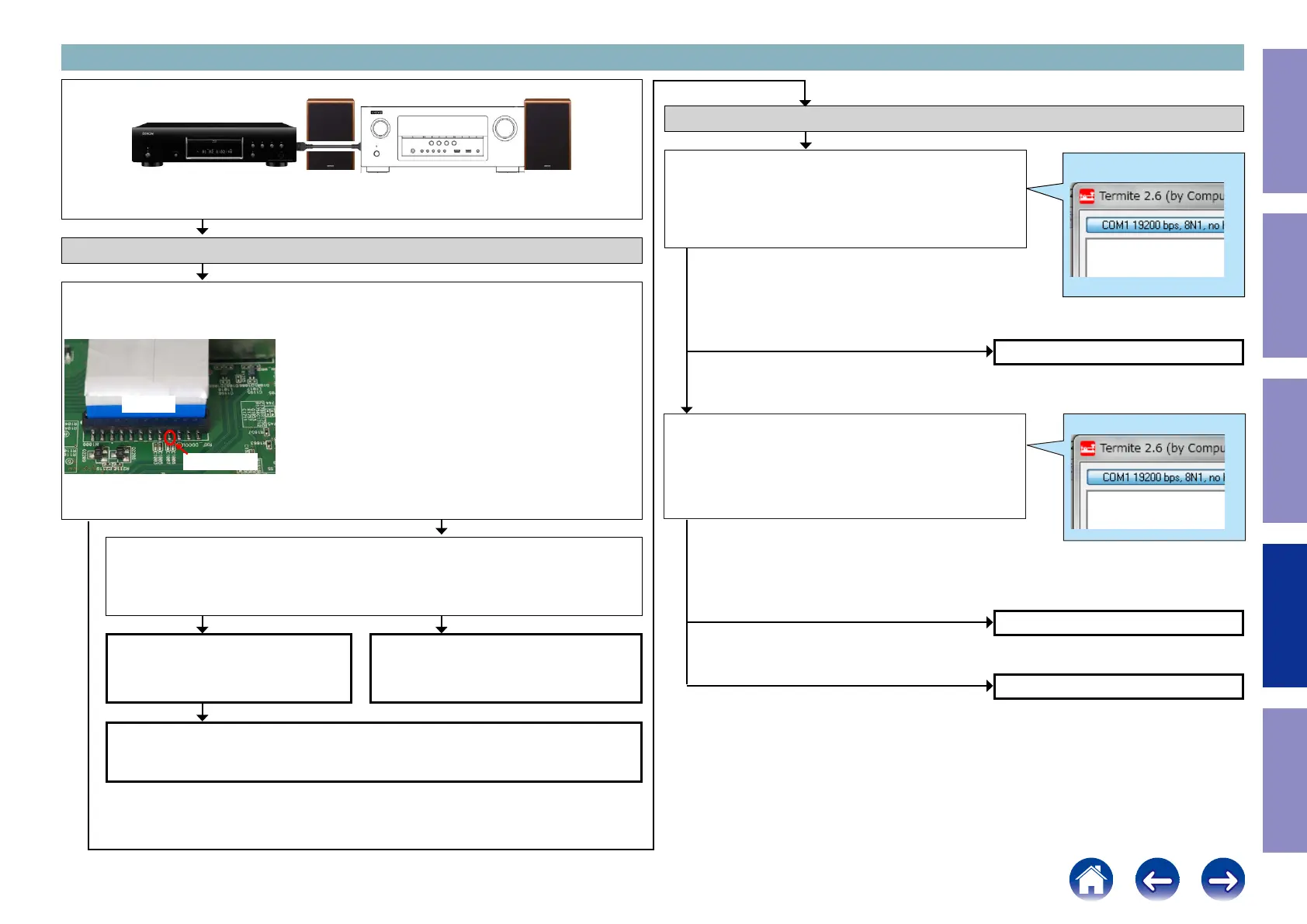

Checking operation between the HDMI (Front HDMI Buffer) and the player
b
In order to check, connect the player to the HDMI terminal and congure the player as AVR source.
Check the sound output while turning on the player.
Check item(47). Check the power supply voltage. :
Does the power supply voltage of the Front HDMI FFC base [N1000] indicate the correct voltage (5V)?
The test points are as follows.
N1000
17pin 5V
Check item(49). Checking the 5V status of the register :
Send the following command from Termite.exe.
Send the command "i 002E 00FF 0001".
Move to the branch destination according to the value returned.
Check the power supply voltage. (HDMI Rx)
Checking the +5V/DDC status register (Front HDMI Buffer)
Check item(48). Check the power supply voltage. :
Check the FETSW [Q1058] and peripheral pattern.
If there is no problem, remove the Front HDMI FFC from the substrate and measure the voltage
at the test point of check item (47).
Is the power supply voltage correct (5 V)?
Front HDMI Buffer [U3000] is faulty.
Replace with a new device.
Example
i 002E 00FF 0001
"00"
(Detection of 5V is not OK.)
"00 or 04"
(Detection of DDC is not OK.)
"88 or 80"
(Detection of 5V is OK)
"22"
(Detection of DDC is OK)
Go to check item (51)
Go to check item (51)
Go to check item (53)
Replace the FET SW [Q1058] and recheck from
check item (47).
If it does not work, replace the PCB.
Recheck from check item (2).
If it does not work, replace the PCB.
3-11. Front HDMI Buffer IC [AD8195] failure detection procedure
YES
YES
NO
NO
Check item(50). Checking the status of the register :
Send the following command from Termite.exe.
Send the command "i 002B 00B4 0001".
Move to the branch destination according to the value returned.
Example
i 002B 00B4 0001
107
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X2400H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	2 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
Display	VFL
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround
Volume control	Rotary
Center speaker impedance	16 Ω
Supported video modes	720i, 720p, 960p, 1080i, 1080p, 2160p
Supported graphics resolutions	3840 x 2160
HDMI in	8
Audio (L/R) in	4
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, iHeartRadio
Audio formats supported	ALAC, DSD, FLAC, MP3, WAV
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Certification	CE, EAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9400 g
