Denon AVR-X2400H Service Manual

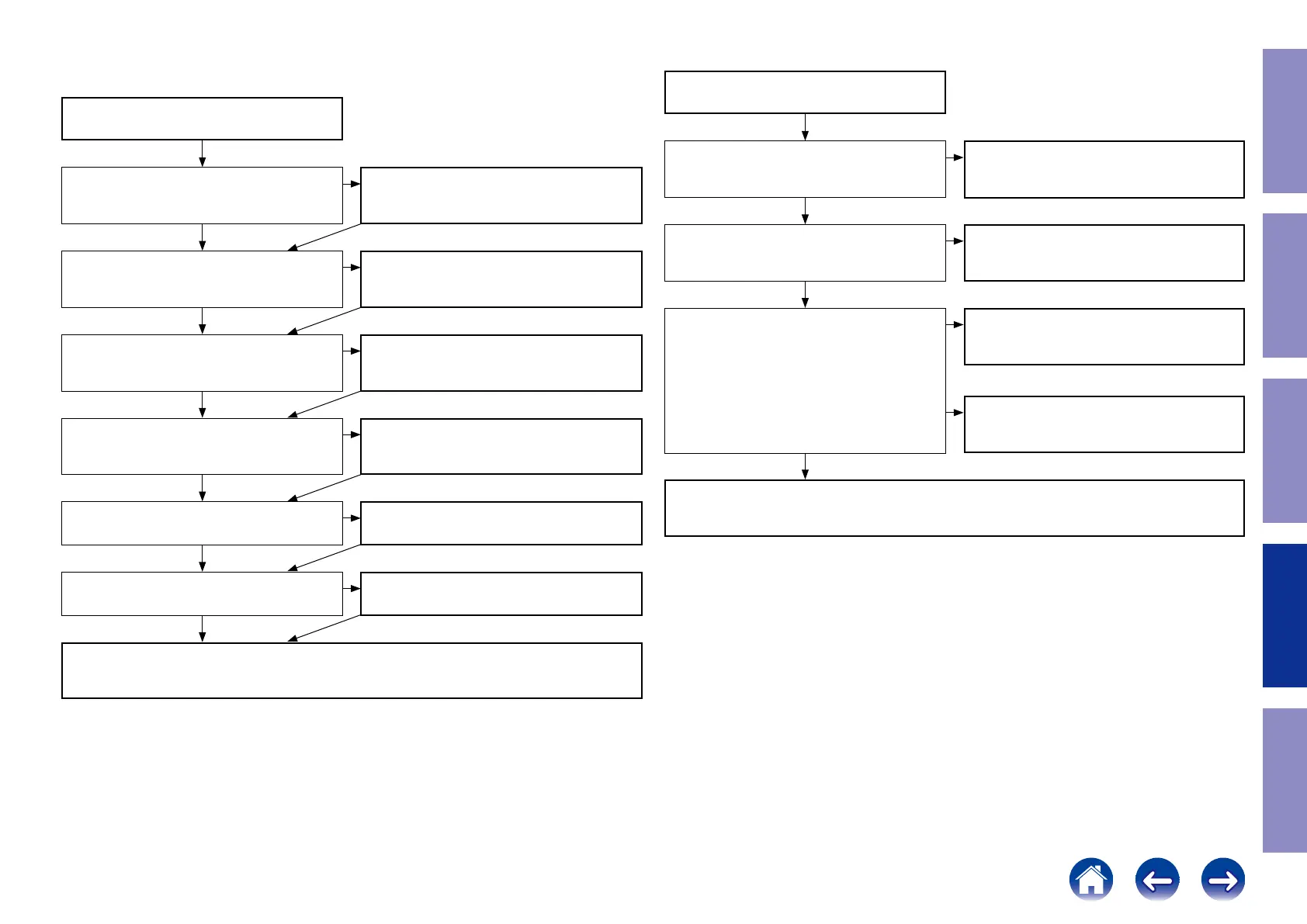

4.2. Power AMP (AMP PCB)
No audio output.
Protection is activated.
Is the power transistor open or short circuited?
2SB1560 / 2SD2390
Is the emitter resistor of the power transistor
open?
0.47 Ω
Is the base resistor of the power transistor open?
22 Ω
Is the trimmer potentiometer between the base of
the power transistor open?
1 k Ω
Are any other transistors faulty?
Are any other resistors faulty?
Turn on the power and, check that the voltage of each part is correct and that there is an idling current.
Replace the power transistor.
Replace the transistor.
Replace the resistor.
Replace the emitter resistor.
Replace the base resistor.
Replace the trimmer potentiometers.
Connect the connectors correctly.
Repair the DIGITAL PCB.
4.3. Analog audio
No audio output.
Is a voltage of ± 8 V supplied to INPUT PCB
CN4006?
Is there an audio signal in INPUT PCB CN401?
Reconnect the connectors correctly.
If the malfunctioning channel and function can be identied, check the corresponding signal path.
Repair the ± 8 V power supply.
Repair the power amplier.
Is the connector correctly connected to the DIGI-
TAL PCB?
When using the protection pass mode, do not connect speakers to the speaker terminals.
YES
NO
YES
YES
NO
YES
YES
YES
YES
YES
YES
YES
NO
YES
NO
NO
NO
NO
NO
NO
79
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X2400H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	2 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
Display	VFL
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround
Volume control	Rotary
Center speaker impedance	16 Ω
Supported video modes	720i, 720p, 960p, 1080i, 1080p, 2160p
Supported graphics resolutions	3840 x 2160
HDMI in	8
Audio (L/R) in	4
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, iHeartRadio
Audio formats supported	ALAC, DSD, FLAC, MP3, WAV
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Certification	CE, EAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9400 g
