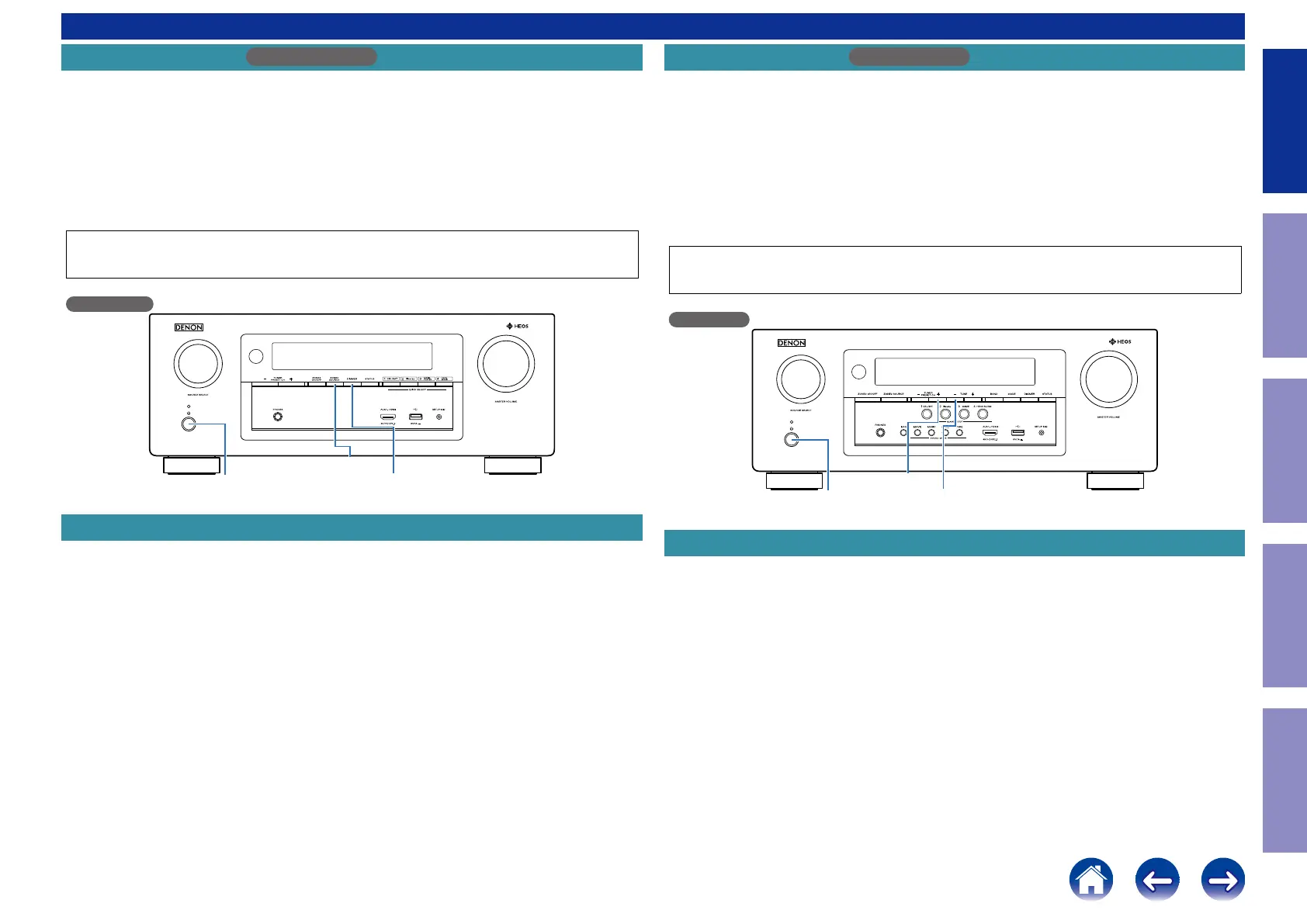

Denon AVR-X2400H Service Manual

Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the
digital PCB.
1. Press the power button to turn off the power.
2. While holding down buttons "
ZONE2 SOURCE
" and "DIMMER" simultaneously, press the power but-
ton to turn on the power.
3. Release the buttons after conrming that the display ashes at 1-second intervals.
＊ The unit is initialized.
Use network initialization mode to initialize the network related settings.
NOTE： • If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.
• Initializing the device restores the customized settings to the factory settings. Write down
your settings in advance and recongure the settings after initialization.
AVR-X2400H
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
8U-110084S : EXTENSION UNIT KIT : 1 Set
(See JIG FOR SERVICING)
DIMMER
X
ZONE2
SOURCE
JIG FOR SERVICING
Initializing This Unit
AVR-X2400H
CAUTION IN SERVICING.
Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the
digital PCB.
1. Press the power button to turn off the power.
2. While holding down buttons "
TUNER PRESET CH +
" and "TUNE -" simultaneously, press the power
button to turn on the power.
3. Release the buttons after conrming that the display ashes at 1-second intervals.
＊ The unit is initialized.
Use network initialization mode to initialize the network related settings.
NOTE： • If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.
• Initializing the device restores the customized settings to the factory settings. Write down
your settings in advance and recongure the settings after initialization.
AVR-S930H
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
8U-110084S : EXTENSION UNIT KIT : 1 Set
(See JIG FOR SERVICING)
X
TUNER
PRESET CH +
TUNE -
JIG FOR SERVICING
Initializing This Unit
AVR-S930H
8
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X2400H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	2 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
Display	VFL
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround
Volume control	Rotary
Center speaker impedance	16 Ω
Supported video modes	720i, 720p, 960p, 1080i, 1080p, 2160p
Supported graphics resolutions	3840 x 2160
HDMI in	8
Audio (L/R) in	4
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, iHeartRadio
Audio formats supported	ALAC, DSD, FLAC, MP3, WAV
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Certification	CE, EAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9400 g
