Denon AVR-X2400H Service Manual

ADJUSTMENT
Adjusting Idling Current
1. Preparation
(1) Prepare a DC voltmeter.
(2) Place the unit under normal usage conditions, away from highly ventilated areas such as next to an
air conditioning machine or electric fan.
The set requires an ambient temperature of 15℃ to 30℃ and standard humidity.
(3) Settings of This Unit
• POWER (Power source switch) STANDBY
• SPEAKER (Speaker terminal) No load
(Do not connect equipment such as speakers or dummy resistors.)
2. Adjustment Procedure
(1) Remove the top cover and turn VR401( (ALL Channel) of the AMP PCB counterclockwise(
c
) as far
as possible.
(2) Connect the DC Voltmeter to the test points.
FRONT-Lch : CP501 : VR401
FRONT-Rch : CP502 : VR402
CENTER ch : CP503 : VR403
SURROUND-Lch : CP504 : VR404
SURROUND-Rch : CP505 : VR405
SURROUND-BACK Lch : CP506 : VR406
SURROUND-BACK Rch : CP507 : VR407
(3) Connect the power cord to an outlet. Next, press the power button to turn on the power.
(4) Set this unit as follows.
MASTER VOLUME : "---" (
c
min.) : turn counterclockwise to the lowest position.
SPEAKER (Speaker terminal) : No load
(Do not connect equipment such as speakers or dummy resistors.)
MODE : MCH STEREO
FUNCTION : DVD
(5) Turn VR401 clockwise (
x
) and adjust the voltage of the test point to "
8.0mV ± 0.5mV DC
" within 2
minutes.
(6) Check whether the voltage is within the range "
8.0mV +1mV/-2mV DC
" 10 minutes after adjust-
ment.
(7) Adjust the variable resistance of each channel using the same method.

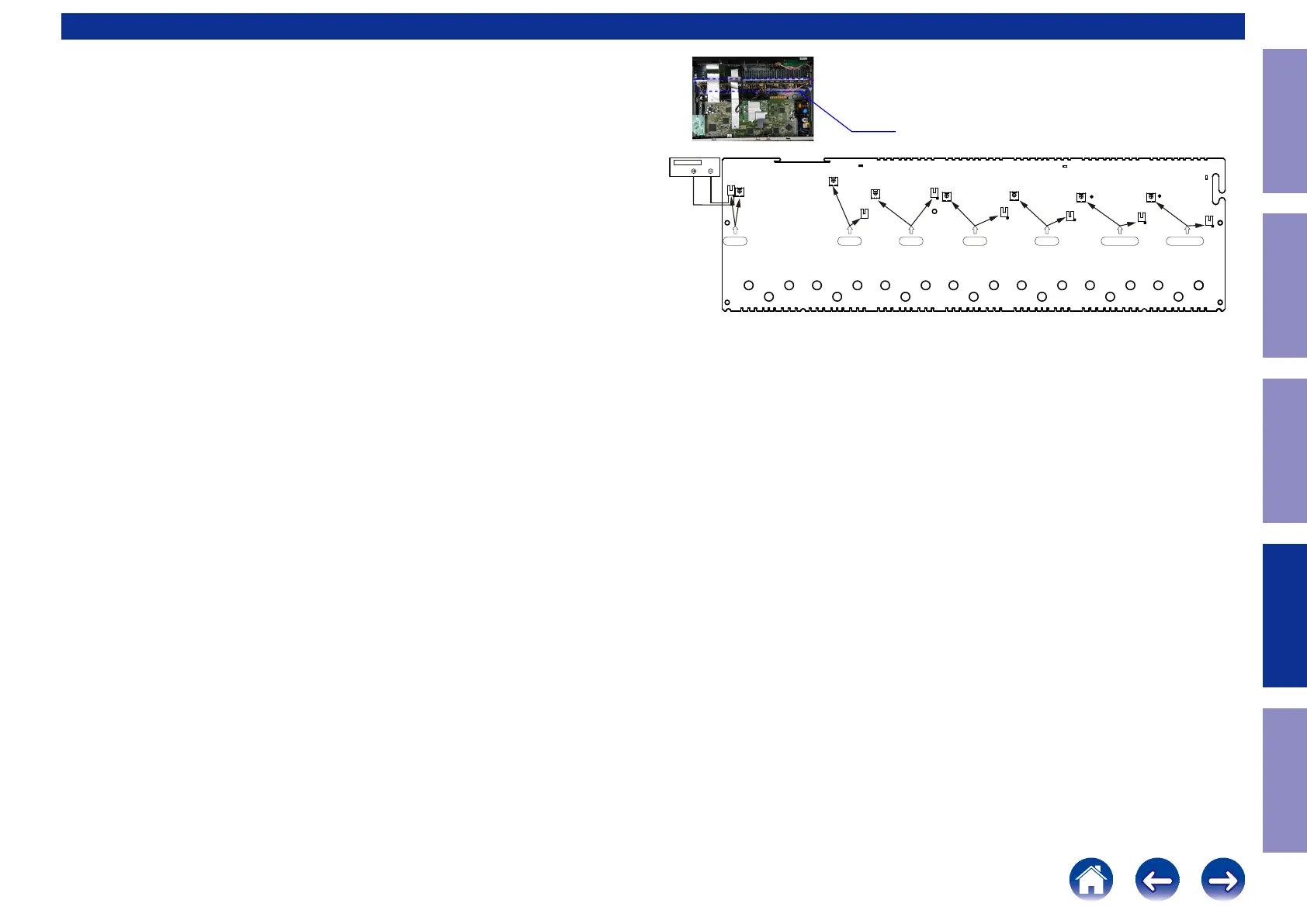

S Lch F RchC ch S Rch S Back Lch S Back Rch
VR404
CP504
VR403
VR405
CP505
VR402
CP502
VR407
CP506
VR406
CP503
CP507
F Lch
CP501
VR401
DC Voltmeter
AMP UNIT
158
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X2400H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	2 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
Display	VFL
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround
Volume control	Rotary
Center speaker impedance	16 Ω
Supported video modes	720i, 720p, 960p, 1080i, 1080p, 2160p
Supported graphics resolutions	3840 x 2160
HDMI in	8
Audio (L/R) in	4
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, iHeartRadio
Audio formats supported	ALAC, DSD, FLAC, MP3, WAV
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Certification	CE, EAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9400 g
