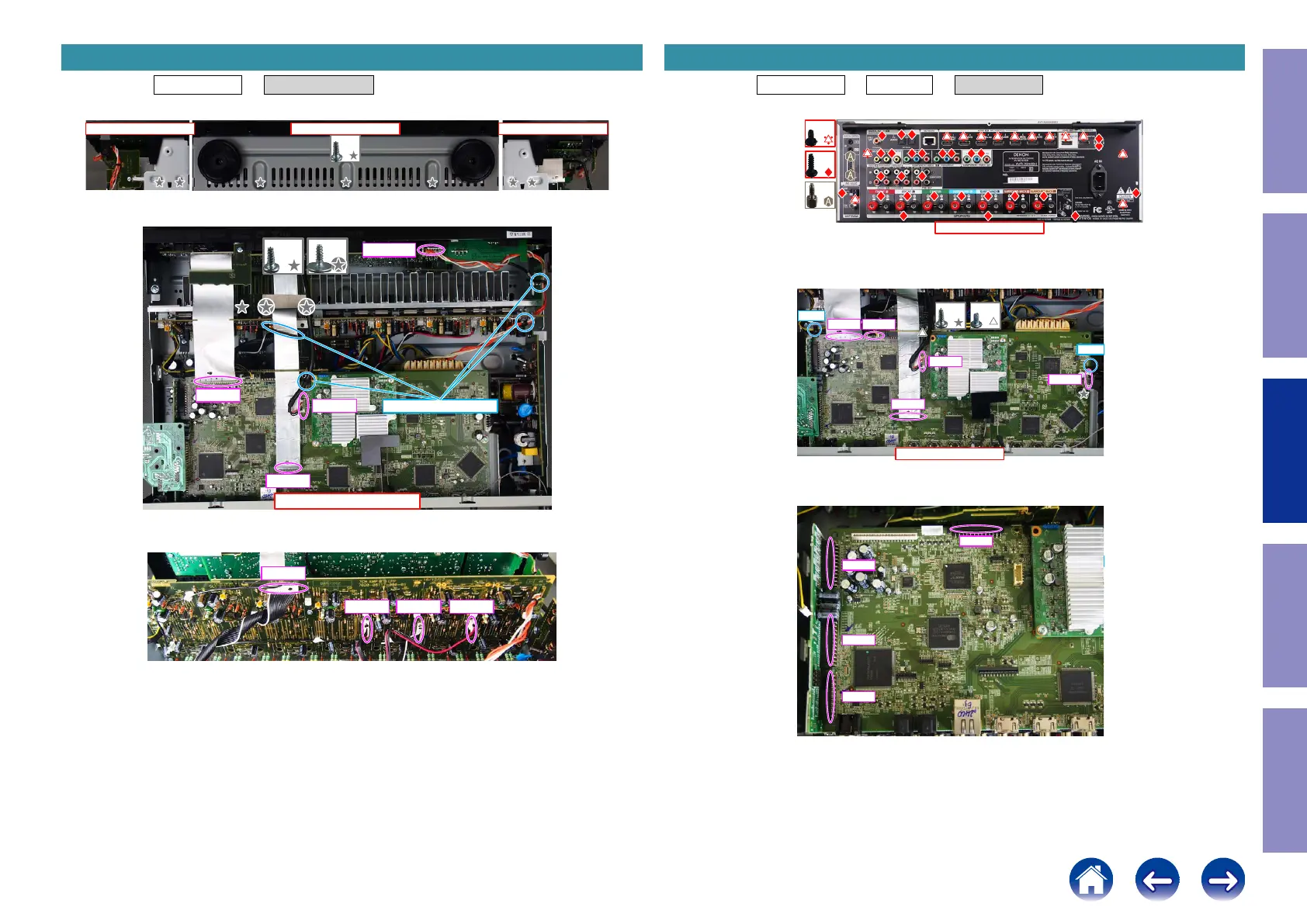

Proceeding : TOP COVER RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDER and connectors. Remove the FFC.
(3) Remove the connector.
3. RADIATOR ASSY
View from the bottom
Shooting direction: D Shooting direction: C
x7
Shooting direction: A
x2x1
FFC
FFC
N1008
CP4400
CORD HOLDER
CP401
CP402 CP405CP403
Proceeding : TOP COVER WiFi ANT DIGITAL PCB
(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connectors.
Remove the FFC.
(3) Remove the connector.
4. DIGITAL PCB
Shooting direction: A
x28
x13
x2
x2 E3 ONLY
Shooting direction: A
x1
x1
N1008
FFC
FFC
N1033
N1019
CUT
CUT
CUT
CUT
N1039
N1014
N1016
N1020
68
Caution in
servicing
Electrical Mechanical Repair Information Updating
