Denon AVR-X2400H Service Manual

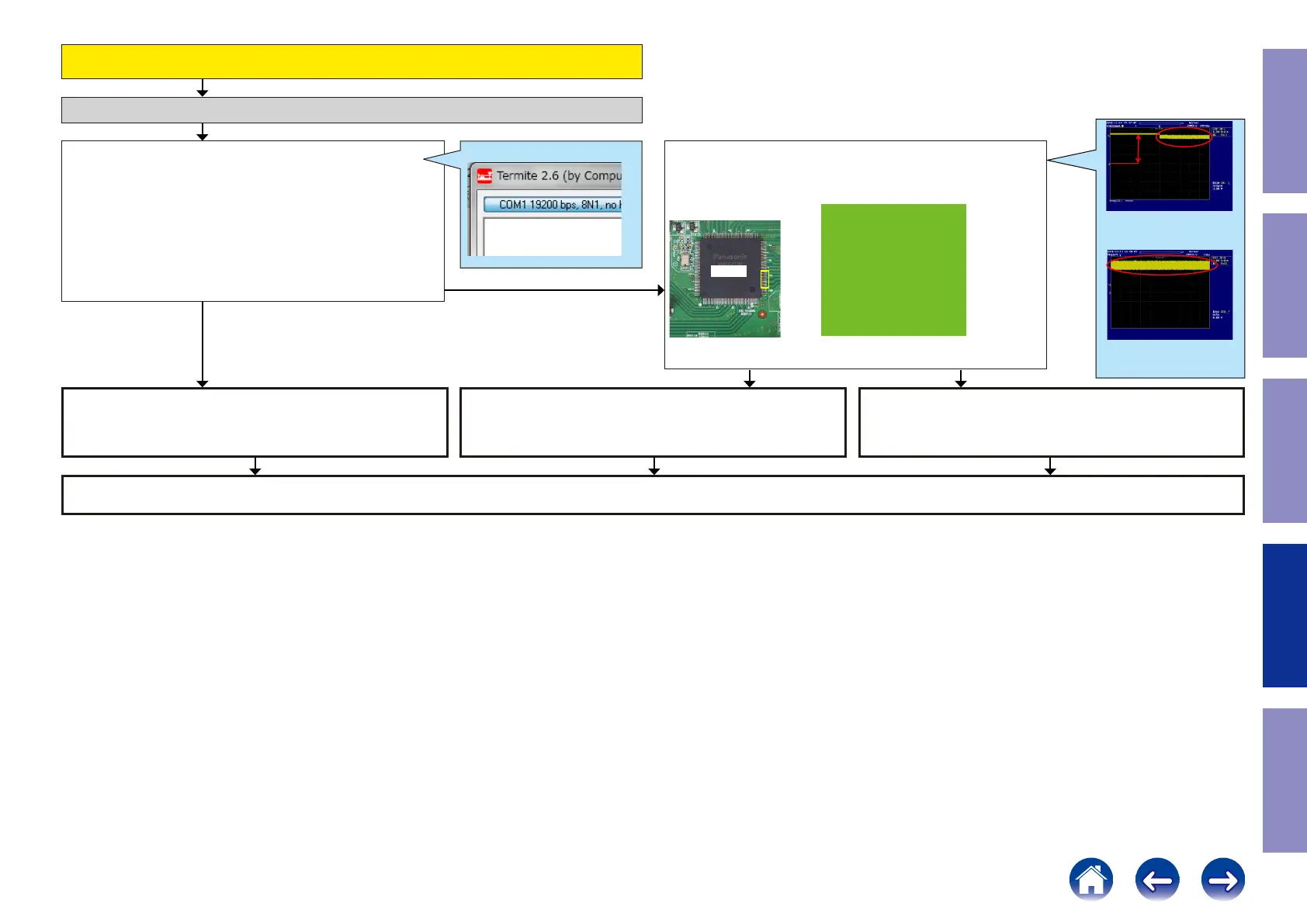

When the results of check item (50) are "22"
(Detection of DDC is OK)
Check item(53). Check the TMDS CLK detection status of the regis-
ter. :
Send the following command from Termite.exe.
Send the command "i 002E 00FF 0001".
When the following value is returned, go to Yes.
"88"
When the following value is returned, go to No.
"80"
Check item (54). Checking the TMDS input waveform. :
Check the TMDS waveform at the following test point.
Is the waveform like the sample?
HDMI Rx1 [U1000]
42/43/45/46/48/49/51/52 pin
U1000
Checking the TMDS status register
HDMI Rx1 [U1000] is faulty.
Replace with a new device.
Recheck from check item (2).
If it does not work, replace the PCB.
Check for a short circuit in the TMDS line and the Front HDMI FFC.
If there is no problem, the Front HDMI Buffer [U3000] is faulty.
Replace with a new device.
HDMI Rx1 [U1000] is faulty.
Replace with a new device.
Example
i 002E 00FF 0001
YES
YES NO
TMDS Signal
3.3V
Example of waveform in check ①
Voltage scale：1.0V/div
Time scale：20ms/div
TMDS
Example of waveform in check ②
Voltage scale：1.0V/div
Time scale：1s/div
NO
109
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X2400H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	2 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
Display	VFL
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround
Volume control	Rotary
Center speaker impedance	16 Ω
Supported video modes	720i, 720p, 960p, 1080i, 1080p, 2160p
Supported graphics resolutions	3840 x 2160
HDMI in	8
Audio (L/R) in	4
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, iHeartRadio
Audio formats supported	ALAC, DSD, FLAC, MP3, WAV
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Certification	CE, EAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9400 g
