Denon AVR-X2400H Service Manual

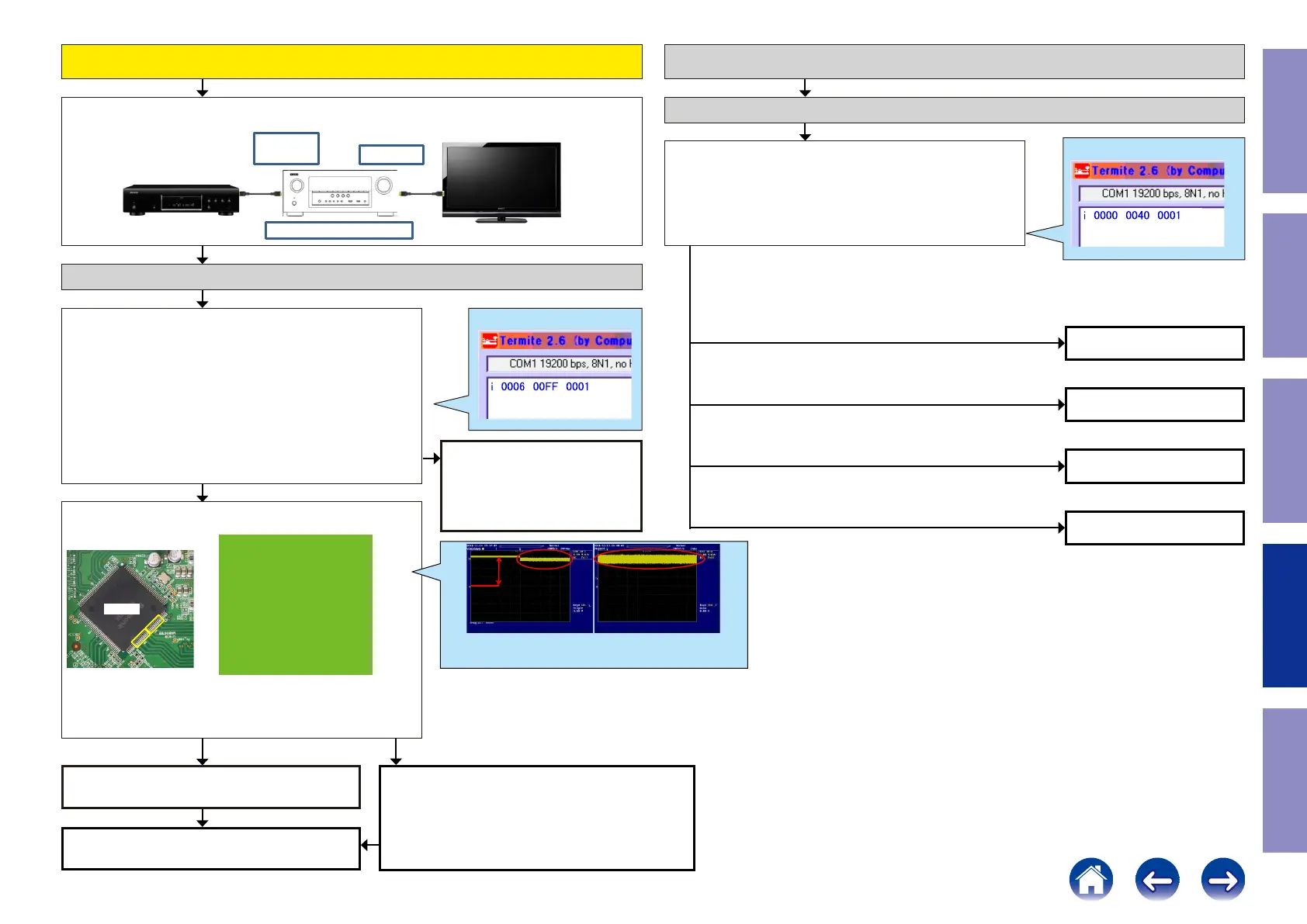

When the results of check item (55) are "No video signal is output from both Monitor 1 and Monitor 2".
Checking operation between the HDMI (Rx) device and the HDMI device (Tx).
Checking operation between the HDMI (Tx) device and TV.
HDMI OUT1
HDMI1 in
HDMI4 in
Video Conversion OFF
NO
NO
Check item(56). Check the TMDS CLK detection status of the
register.
Send the following command from Termite.exe.
Send the command "i 0006 00FF 0001".
When checking the signal path from HDMI1 to HDMI OUT1
"72" : Go to Yes.
"74" : Go to No.
When checking the signal path from HDMI4 IN to HDMI OUT1
"71" : Go to Yes.
"74" : Go to No.
Checking the TMDS status register (HDMI Rx -> HDMI Tx)
Example
The rst operation : Checking
between Monitor 1 and the TV.
Go to check item (58)
Next operation：Checking be-
tween Monitor 2 and the TV.
Go to check item (65)
Check item (57). Checking the TMDS input. :
TMDS waveform at the following points.
Between HDMI Rx1 and HDMI Tx
80/81/83/84/86/87/89/90 pin
Between HDMI Rx2 and HDMI Tx
93/94/96/97/99/100/102/103 pin
U1039
HDMI Tx [U1039] is faulty.
Replace with a new device.
YES
Check item(58). Check the HPD and RXSENSE register value of
the HDMI TX device. :
Send the following command from Termite.exe.
Send the command "i 0000 0040 0001".
Move to the branch destination according to the value returned.
Checking between Monitor1 and the TV.
Connect Monitor1 to the TV and check the following items with the TV turned on.
Checking the HPD/RXSENSE status register. (HDMI TX -> Monitor)
Example
"10"
(Detection of HPD is OK / Detection of RXSENSE is not OK )
"30"
(Detection of HPD is OK / Detection of RXSENSE is OK )
"20"
(Detection of HPD is not OK / Detection of RXSENSE is OK )
"00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )
Go to check item (62)
Go to check item (59)
Go to check item (63)
Go to check item (64)
Recheck from check item (3).
If it does not work, replace the PCB.
If it is NO between HDMI Rx1 and HDMI Tx.
HDMI Rx1 [U1000] is faulty.
Replace with a new device.
If it is NO between HDMI Rx2 and HDMI Tx.
HDMI Rx2 [U1003] is faulty.
Replace with a new device.
YES
NO
TMDS Signal
3.3V
TMDS
Example of waveform in check ① Example of waveform in check ②
Voltage scale：1.0V/div Voltage scale：1.0V/div
Time scale：20ms/div Time scale：1s/div
111
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X2400H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	2 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
Display	VFL
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround
Volume control	Rotary
Center speaker impedance	16 Ω
Supported video modes	720i, 720p, 960p, 1080i, 1080p, 2160p
Supported graphics resolutions	3840 x 2160
HDMI in	8
Audio (L/R) in	4
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, iHeartRadio
Audio formats supported	ALAC, DSD, FLAC, MP3, WAV
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Certification	CE, EAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9400 g
