Denon DHT-FS5 Service Manual

10
DHT-FS5

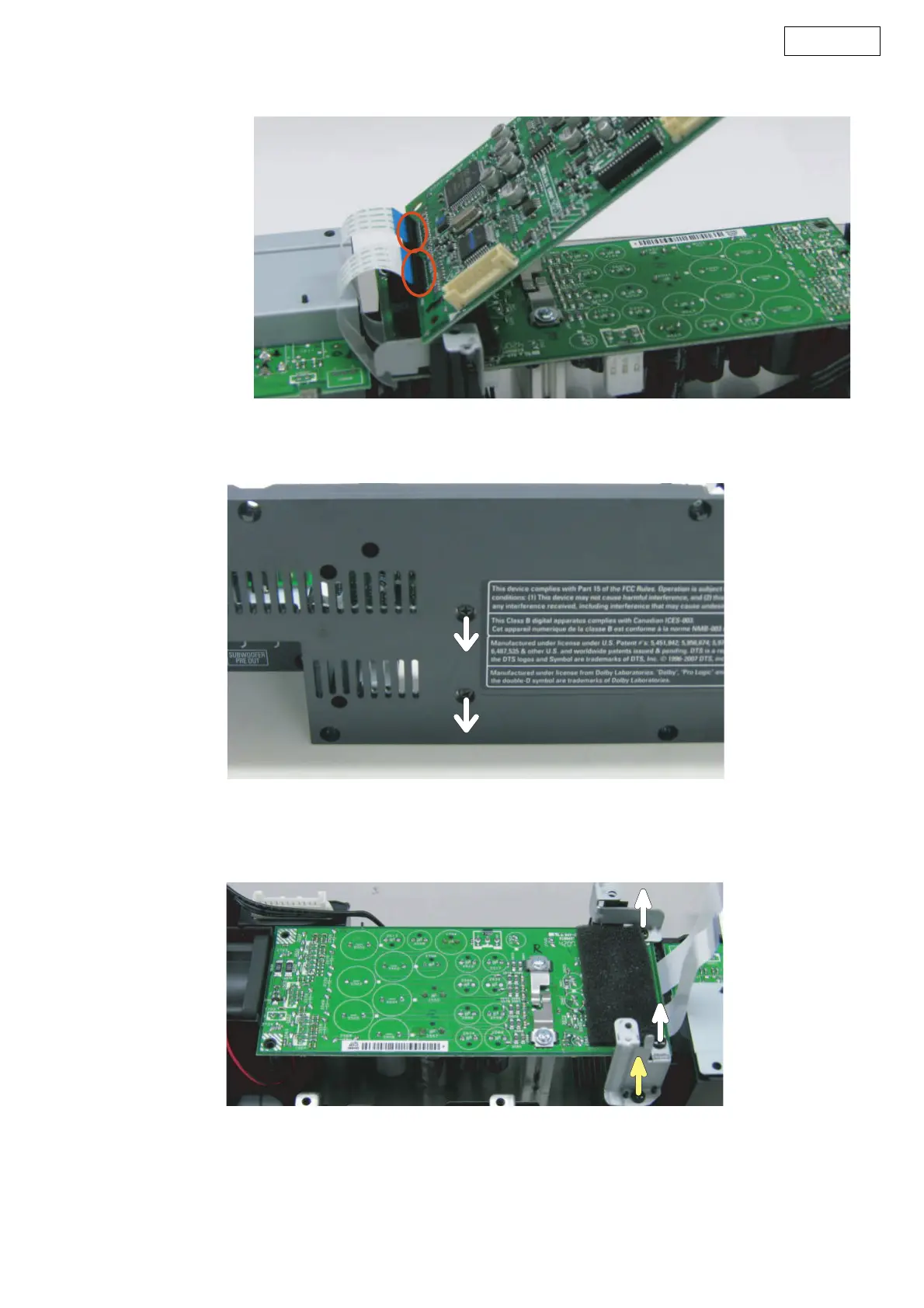

(3) FFC 二箇所をはずす。
8. AMP 基板のはずしかた
(1) リアパネルのねじを 2 本はずす。
(2) AMP 基板上のネジを２本はずす。
(3) 金具の止めネジをはずす。
(4) 金具を 2 個はずす。
(3) Disconnect the 2 FFC on the SIGNAL P.W.B..
8. AMP P.W.B.
(1) Remove the 2 screws on the rear panel.
(2) Remove the 2 screws fixing the AMP P.W.B..
(3) Remove the metal fitting fixation screw.
(4) Remove the 2 metal fittings.

Denon DHT-FS5 Specifications

General

Type	Home theatre speakers
Frequency range	80 - 20000 Hz
Dimensions (WxDxH)	750 x 138 x 118 mm
Satellite speaker driver diameter	3.15 \
Audio output channels	5.0 channels
Impedance	6 Ω
RMS rated power	150 W
Signal-to-Noise Ratio (SNR)	100 dB
Microphone in	Yes
Product color	Black

Weight and Dimensions

Weight	5100 g
