11
DHT-FS5

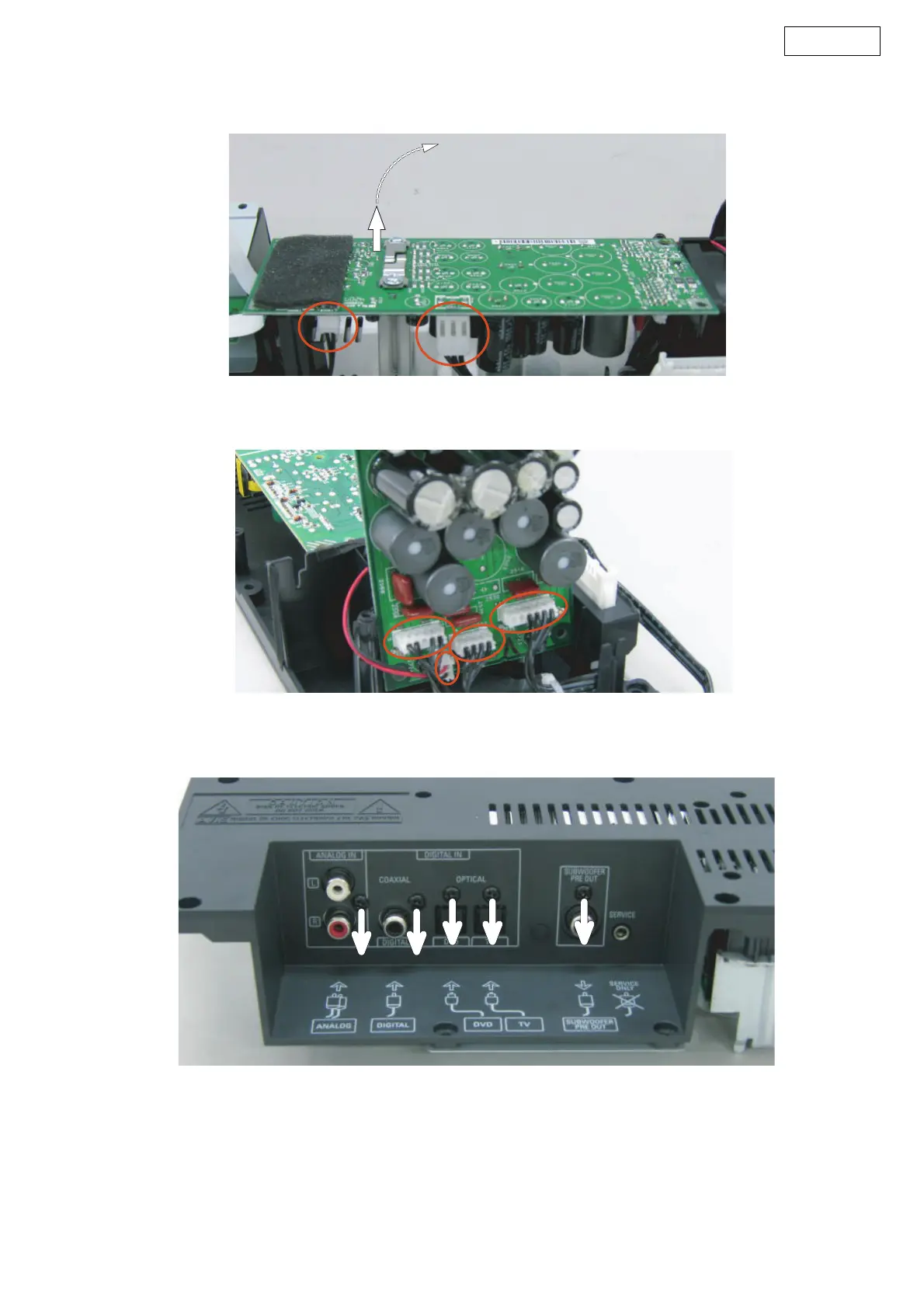

(5) AMP 基板を持ち上げ、基板上の 2 箇所のコネクタをは
ずす。
(6) AMP 基板を 90°に立て、基板上 4 箇所のコネクタをは
ずす。
9. コネクタ基板のはずしかた
(1) リアパネル下面のネジを 5 本はずす。
(5) Lift up the AMP P.W.B. then disconnect 2 connectors fix-
ing the AMP P.W.B..
(6) Stand the AMP P.W.B. vertically and disconnect the 4
connectors on the AMP P.W.B..
9. Connector P.W.B.
(1) Disconnect 5 screws lower side of the rear panel.
