12
DHT-FS5

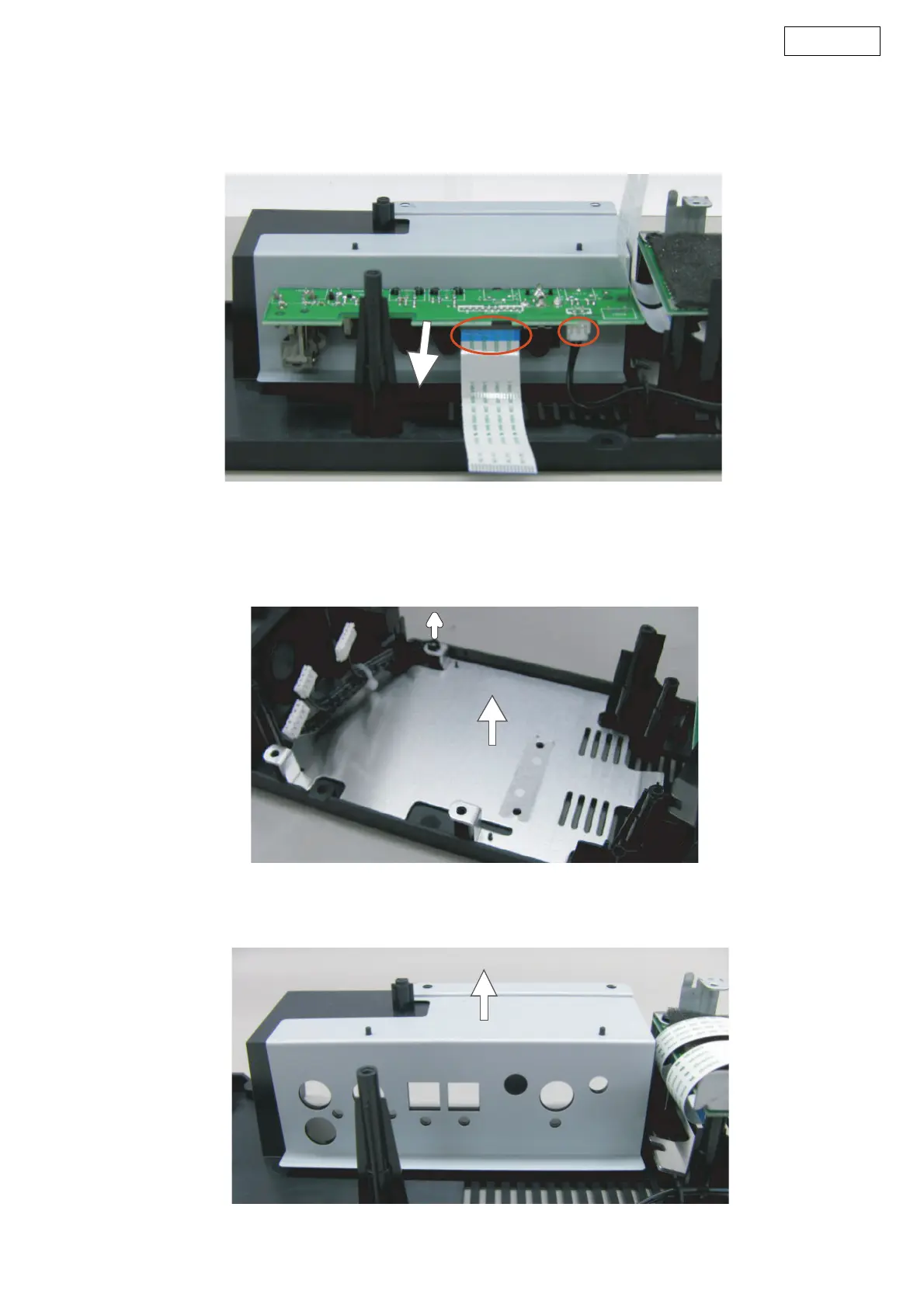

(2) コネクタ基板を矢印の方向へはずす。
(3) コネクタ基板上各 1 箇所のコネクタと FFC をはずす。
10.アルミプレートのはずしかた
(1) アルミプレート固定ネジをはずす。
(2) アルミプレートを矢印の方向へはずす。
11.シールドプレートのはずしかた
(1) シールドプレートを矢印の方向へはずす。
(2) Detach the Connector P.W.B. as shown in the arrow di-
rection.
(3) Disconnect the each 1 connector and the FFC on the
Connector P.W.B..
10.Aluminum Plate
(1) Remove the Aluminum plate fixation screw.
(2) Detach the Aluminum Plate as shown in the arrow direc-
tion.
11.Shield Plate
(1) Detach the shield plate in the direction of the arrow.
