Denon DHT-FS5 Service Manual

9
DHT-FS5

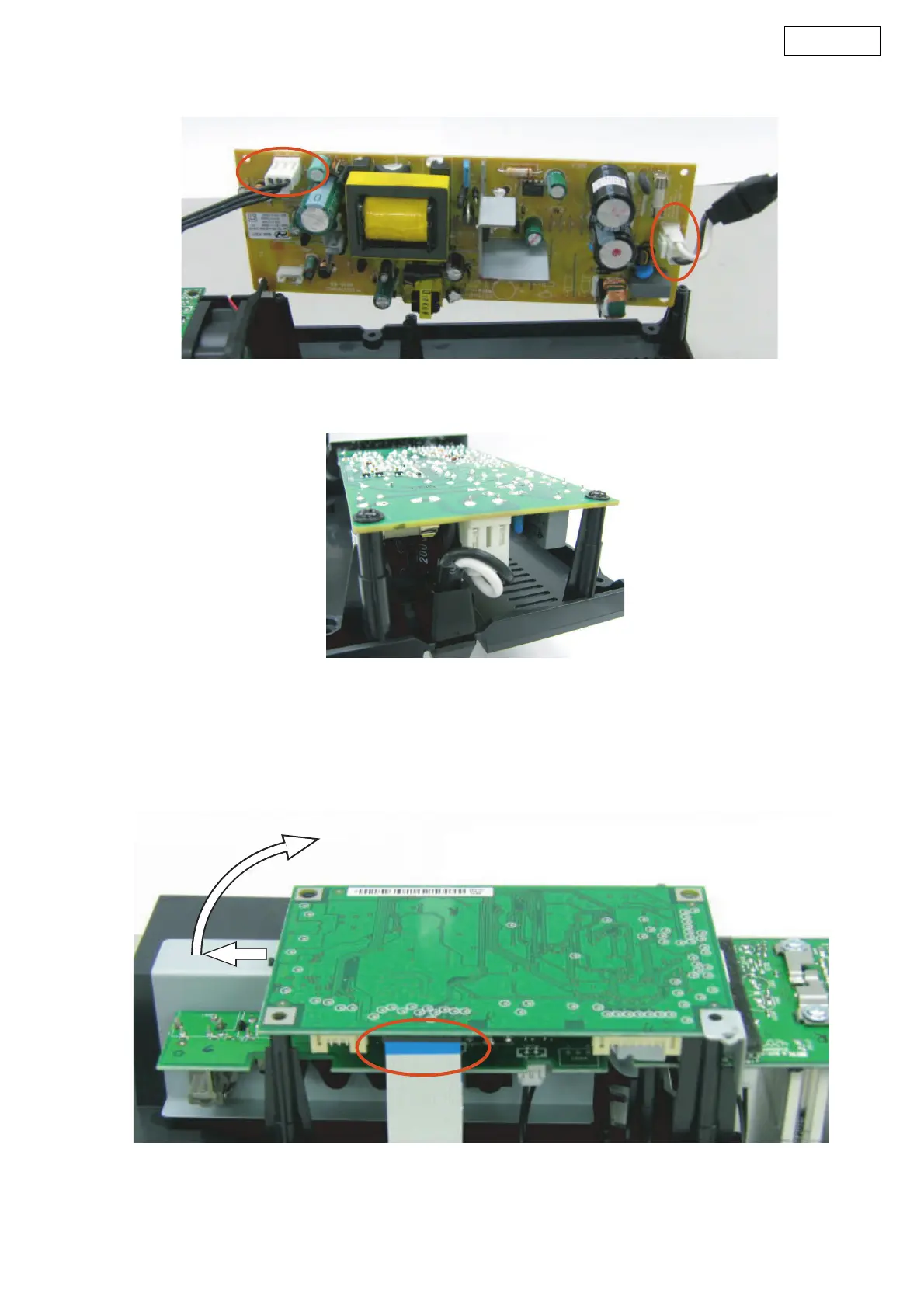

(4) SMPS 基板上のコネクタをはずす。
b 組み立て時には、AC コードの側線が写真のようになるこ
と。
7. SIGNAL 基板のはずしかた
(1) SIGNAL 基板上の FFC をはずす。
(2) 矢印 A の方向へ SIGNAL 基板をずらした後、矢印 B の
方向へ基板を裏返す。
(4) Disconnect the connector on the SMPS P.W.B..
.
bWhen assembling, lateral code of AC code becomes as
shown in the photograph.
7. SIGNAL P.W.B.
(1) Disconnect the FFC on the SIGNAL P.W.B..
(2) Move the SIGNAL P.W.B. in the direction of the arrow A.
Then turn over the SIGNAL P.W.B. in the direction of the
arrow B.
A
B

Denon DHT-FS5 Specifications

General

Type	Home theatre speakers
Frequency range	80 - 20000 Hz
Dimensions (WxDxH)	750 x 138 x 118 mm
Satellite speaker driver diameter	3.15 \
Audio output channels	5.0 channels
Impedance	6 Ω
RMS rated power	150 W
Signal-to-Noise Ratio (SNR)	100 dB
Microphone in	Yes
Product color	Black

Weight and Dimensions

Weight	5100 g
