4
TECHNICAL SPECIFICATIONS
n Audio
(0 dBu=0.775 Vrms,
0 dBV =1 Vrms)
• PHONO inputs 2 Stereo
Unbalanced RCA terminal
Input impedance: 50 kΩ
Level:
–40 dBV(10 mV)
Signal to Noise ratio:
Over 87 dB
• LINE inputs 2 Stereo
Unbalanced RCA terminal
Input impedance: 10 kΩ
Level: 0 dBV
Signal to Noise ratio:
Over 90 dB
• AUX Input 2 Stereo
Unbalanced RCA terminal
Input impedance: 10 kΩ
Level: 0 dBV
Signal to Noise ratio:
90 dB or later
• Equalizer (LINE) 3 Band
Channel EQ Adjustment
Range:
HI (High Range) :
–∞, –90 dB – +10 dB
MID (Medium Range) :
–∞, –90 dB – +10 dB
LOW (Low Range) :
–∞, –90 dB – +6 dB
• MIC inputs 2 Monaural
MIC 1:
Combo jack (terminal for balanced
XLR and balanced 1/4 inch TRS)
(1: ground, 2: hot, 3: cold,
chip: hot, ring: cold,
sleeve: ground)
MIC 2:
Balanced 1/4 inch TRS terminal
Input impedance: 10 kΩ
Level:
–
54 –
–
34 dBV
• Equalizer (MIC/AUX1)
3 Band
Adjustment Range: HI (High Range) :–15 – +15 dB
MID (Medium Range) :–15 – +15 dB
LOW (Low Range) :–15 – +15dB
• USB audio inputs 2 Stereo(4 Monaural) 16 bit,
Fs:48 kHz USB B
• MASTER output
Balanced: Stereo, balanced XLR terminal
(1: Ground, 2: Hot, 3: Cold)
DA converter: 24 bit
Load impedance: Over 600 Ω
n Dimensions
Width: 460.0 mm / 18.1”
Height: 50.0 mm / 2.0”
Depth: 255.0 mm / 10.0”
Weight: 4.6 kg (10 lbs 2.26 oz)
Level: + 4 dBu (Max + 24 dBu)
• When RL=10 kΩ
Frequency response: 20 Hz – 20 kHz(±0.5 dB)
THD: Less than 0.05%
Crosstalk: Less than –100 dB (1 kHz)
Unbalanced: Stereo RCA terminal
Load impedance: 10 kΩ
Level: 0 dBu (Max + 20dBu)
• REC Output Stereo
Unbalanced RCA terminal
Load impedance: 1 kΩ
Level: –
1
0dBV (Max +10dBV)
• BOOTH/SEND Output Stereo balanced 1/4 inch TRS
terminal
Load impedance: Over 600 Ω
Level: + 4 dBu (Max + 24 dBu)
• When RL=10 kΩ
• Headphone output Stereo
Load impedance: 40 Ω
Level: 100 mW
• USB audio output 4 Stereo (8 Monaural) 16 bit,
48 kHz USB B
n General
USB MIDI I/O: IN:1ch, OUT:1ch MIDI1.0, MIDI
Clock USB B
CH Meter: PPM 10 Point LED-20 – + 10
dB, Peak
MASTER Meter: PPM 10 Point LED-20 – + 10
dB, Peak
CH Fader: 45 mm Slim Type fader
Cross Fader: 45 mm Fader
• Power voltage: DC12V (the unit)
AC adapter input:
U.S.A. and Canada models: AC 120 V, 60 Hz
European,U.K. and Asia/
Pacific models:
AC 230 V, 50 Hz
AC adapter output: DC 12V 3A
Power consumption: 24 W (Less than 0.45 W during
standby)
Operating temperature: +5 °C – +35 °C
Operating humidity: 25 % – 85 %
Storage temperature: –20 °C – 60 °C

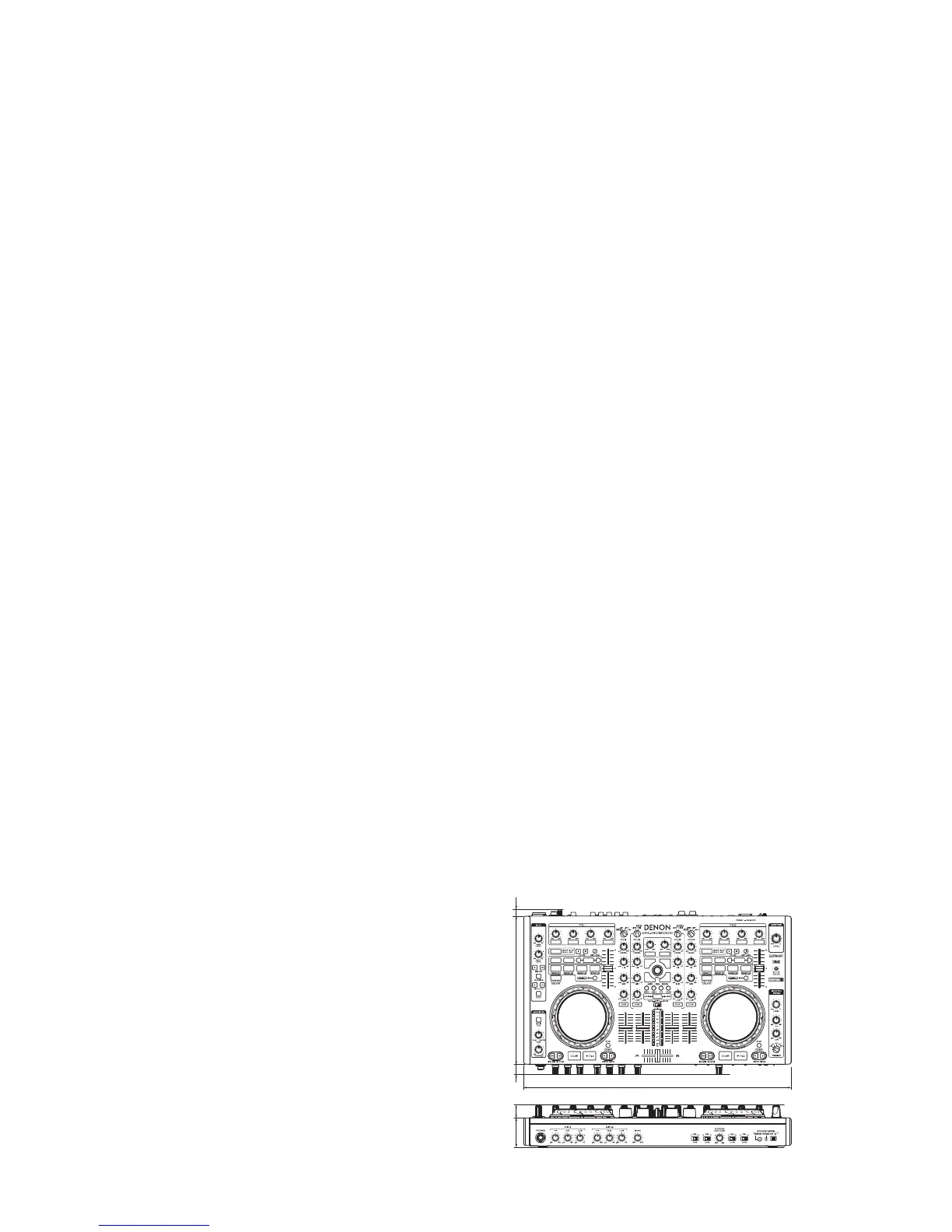

460.0 mm (18.1”)
17.7 mm
(0.7”)
11.0 mm
(0.4”)
255.0 mm
(10.0”)
21.5 mm
(0.9”)
50.0 mm
(2.0”)
DIMENSION
