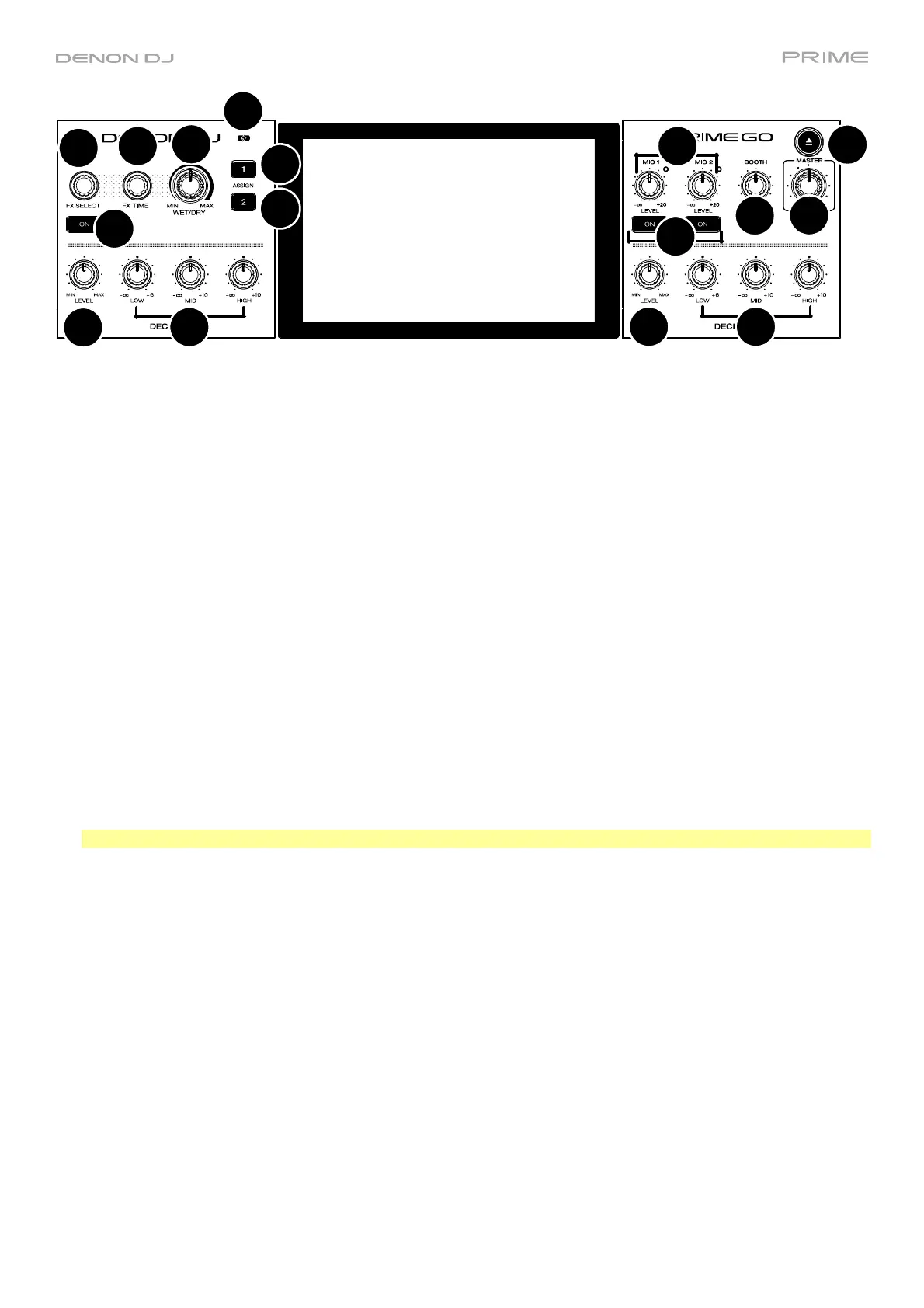

29. Battery Charging Indicator: This LED is solid green while charging. When charging is complete, the LED will
turn off.
30. FX On: Press this button to enable or disable the selected effect.
Hold Shift and press FX On to show or hide the FX bar.
31. FX Select: Turn this knob to select the active effect for FX 1 and FX 2.
32. FX Time: Turn this knob to decrease or increase the rate of time-based effects on that deck. Press this knob to
toggle between FX Time and FX Parameter control, and then turn the knob to adjust the parameter.
33. FX Wet/Dry Knob: Turn this knob to adjust the wet/dry mix of the effects.
34. FX Assign 1: Press this button to assign effect routing to Deck 1.
35. FX Assign 2: Press this button to assign effect routing to Deck 2.
36. Channel Level: Turn this knob to adjust the level of the pre-fader, pre-EQ audio signal for the channel.
37. Channel EQ: Turn these knobs to boost or cut the low, mid-range, and high frequencies for the channel.
38. Mic On/Off: Press this button to toggle the microphone signal on/off.
Hold Shift and press Mic On/Off for Mic 1 to turn Talkover on/off, which automatically reduces the volume level
of the master mix when you speak into the microphone.
39. Mic Level: Turn these knobs to adjust the volume levels of the corresponding microphone inputs. The Peak light
next to each knob indicates the current signal level by its color: green (low), amber (normal/optimal), or red
(maximum/peak). You can adjust the microphone attenuation in the Settings menu.
Important: The audio signals from the microphones are routed directly to the Master Outputs.
40. Booth Level: Turn this knob to adjust the volume level of the Booth Outputs.
41. Master Level: Turn this knob to adjust the volume level of the Master Outputs.
42. Eject: Press this button to display a list of connected media devices on the touchscreen. Tap one of the listed
media sources to eject that device.
Hold Shift and press this button to open the Source menu.
To Next Page
