Denon RCD-N7 User Manual

5
ConnectionsConnections
Basic Operations Advanced Operations TroubleshootingExplanation termsInformation Specifi cations Index
ENGLISH
Getting Started
This section explains how to connect speakers, recording
equipment, antennas and network.
For other connections, see the sections below.
NOTE
• Do not plug in the power cord until all connections have been
completed.
• When making connections, also refer to the owner’s manual of the
other components.
• Be sure to connect the left and right channels properly (left with left,
right with right).
• Do not bundle power supply cords together with connection cables.
Doing so can result in humming or noise.

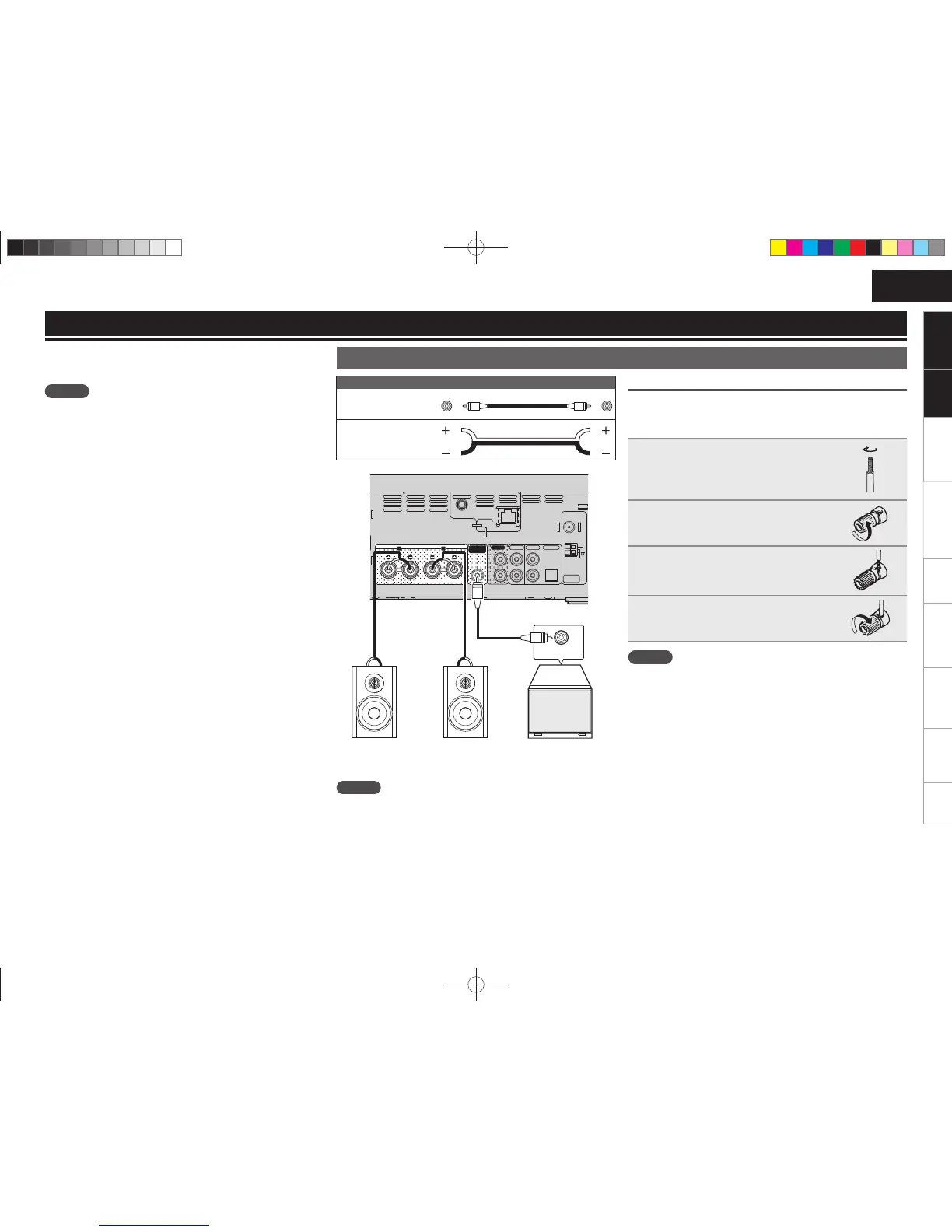

Connections
Speaker connections
Audio cable (sold separately)
Pin-plug cable
(Black)
Speaker cable
COAX.
75ǡ
LOOP
ANT.
LR
SPEAKERS
ETHERNET
NETWORK
FM
AM
ANTENNA
TUNER
L
R
AUX OUT AUX IN 1 AUX IN 2 AUX IN 3
(OPTICAL)
WLAN ANTENNA
SPEAKERS INPEDANCE 4-16 ǡ
RCD-N7W
PREOUT
SUBWOOFER
wqwq
Subwoofer with
built-in amp
Input terminals
RL
Speaker SC-N7
NOTE
Be sure to lower the audio volume before making speaker settings.
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to the unit, and be
sure to connect the channels and polarities correctly.
1
Peel off about 10 mm of sheathing
from the tip of the speaker cable, then
either twist the core wire tightly or
apply solder to it.
2
Turn the speaker terminal
counterclockwise to loosen it.
3
Insert the speaker cable’s core wire to
all the way into the speaker terminal.
4
Turn the speaker terminal clockwise
to tighten it.
NOTE
• Use speakers with an impedance of 4 to 16 Ω. The protection circuit
may be activated if speakers with an impedance other than specifi ed
are used.
• Connect the speaker cables so they do not stick out of the speaker
terminals. The protection circuit may be activated if the wires
touch the rear panel or if the + and – sides touch each other
(vpage6 “Protection circuit”).
• Never touch the speaker terminals while the power supply is
connected. Doing so could result in electric shock.
• When you connect optional speakers (SC-N7) to this unit, you can
perform the fi lter setting for optimal sound quality output (vpage33
“Using an optimizing fi lter”).
1.RCDN7E2ENG5th0831.indd51.RCDN7E2ENG5th0831.indd5 2010/09/0115:09:532010/09/0115:09:53

Denon RCD-N7 Specifications

General

Frequency range	5 - 20000 Hz
RMS rated power	65 W
Pre-out channels	1 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Dynamic power per channel (4 Ohm)	80 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio (L/R) in	2
Digital audio optical in	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WMA
Image formats supported	JPG
Video formats supported	AVI, WMV
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	99
Internet radio services supported	Last.fm, Napster
Optical drive type	CD player
Disc types supported	CD, CD-R, CD-RW
Display	OLED
Product color	Silver
Audio decoders	Not supported
Volume control	Rotary
Apple docking compatibility	iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4300 g
