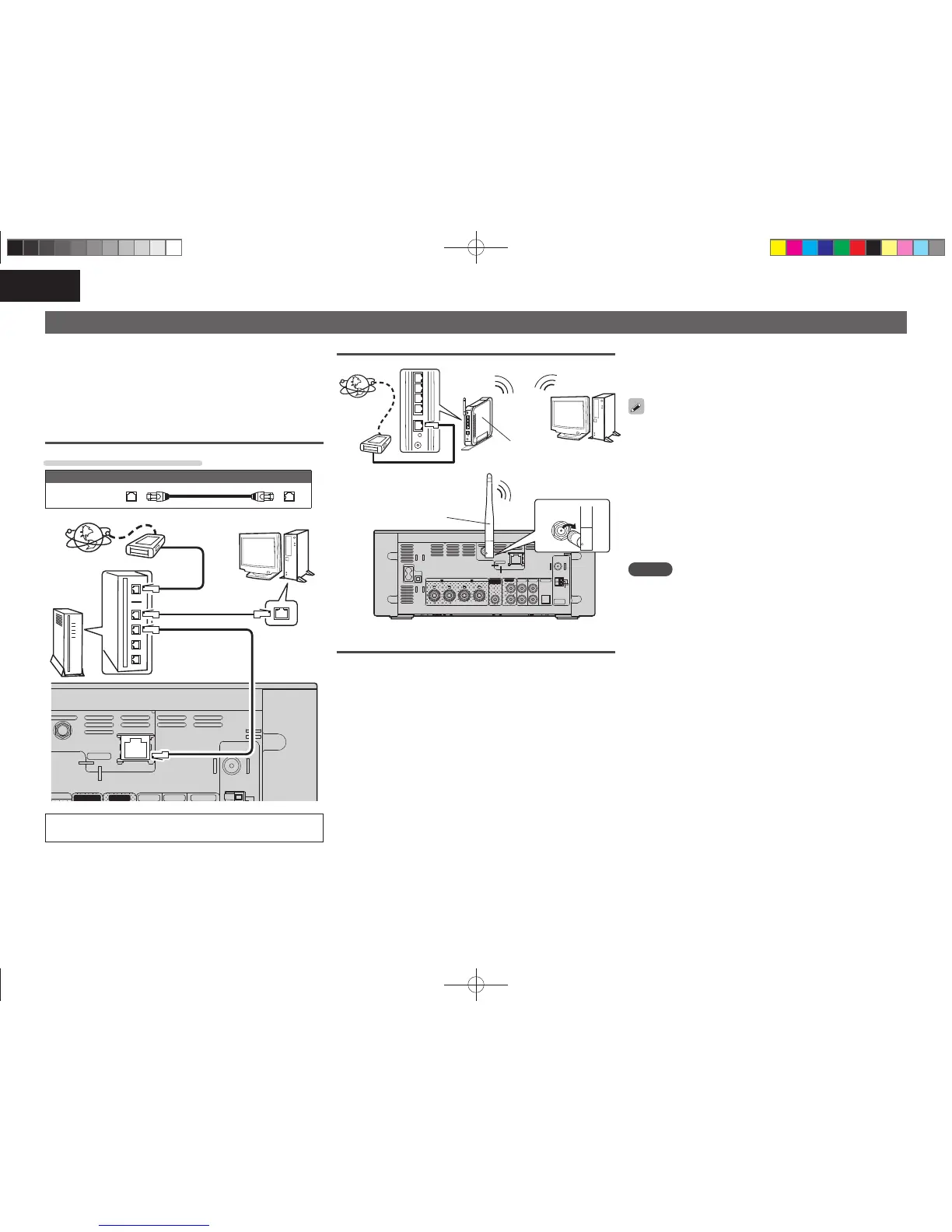

Connecting to a home network (LAN)
• This unit lets you play via your home network (LAN) music fi les
stored on a computer and music content such as that from Internet
radio.
• You can update by downloading the latest fi rmware from the
DENON website.
• See “Setting the network [Network]” (vpage28) on the menu for
more information on network setting.
Wired LAN
Cables used for connections
Cable (sold separately)
Ethernet
cable
COAX.
75ǡ
ETHERNET
NETWORK
FM
AM
AUX OUT AUX IN 1 AUX IN 2SUBWOOFER AUX IN 3
W
LAN ANTENNA
RCD-N7W
Internet
To WAN side
Router
To LAN port
To LAN port
LAN port/
Ethernet
connector
Computer
Modem
For connections to the Internet, contact an ISP (Internet
Service Provider) or a computer shop.
Wireless LAN
COAX.
75ǡ
LOOP
ANT.
LR
SPEAKERS
ETHERNET
NETWORK
FM
AM
ANTENNA
TUNER
L
R
AUX OUT AUX IN 1 AUX IN 2
PREOUT
SUBWOOFER AUX IN 3
(OPTICAL)
WLAN ANTENNA
AC IN
SPEAKERS INPEDANCE 4-16 ǡ
RCD-N7W
To WAN side
Computer
Internet
Modem
Router with
access point
Turn
clockwise.
Rod antenna
(supplied)
Required system
n Broadband internet connection
n Modem
Device that connects to the broadband circuit and conducts
communications on the Internet.
A type that is integrated with a router is also available.
n Router
When using this unit, we recommend you use a router equipped
with the following functions:
• Built-in DHCP server
This function automatically assigns IP addresses on the LAN.
• Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching
hub with a speed of 100 Mbps or greater.
• When using with a wireless LAN, prepare a broadband router
with built-in access point.
n Ethernet cable (CAT-5 or greater recommended)
• Use only shielded STP or ScTP LAN cable which is available at
retailer.
• Some fl at type Ethernet cables are easily affected by noise.
We recommend using a normal type cable.
• If you have an Internet provider contract for a line on which network
settings are made manually, make the settings at “Network
connecting (DHCP=Off)” (vpage28).
• With this unit, it is possible to use the DHCP and Auto IP functions
to make the network settings automatically.
• When using this unit with the broadband router’s DHCP function
enabled, this unit automatically performs the IP address setting and
other settings.
When using this unit connected to a network with no DHCP function,
make the settings for the IP address, etc., at “Network connecting
(DHCP=Off)” (vpage28).
• When setting manually, check the setting contents with the network
administrator.
NOTE
• A contract with an ISP is required to connect to the Internet.
No additional contract is needed if you already have a broadband
connection to the Internet.
• The types of routers that can be used depend on the ISP. Contact an
ISP or a computer shop for details.
• DENON assumes no responsibility whatsoever for any
communication errors or troubles resulting from customer’s network
environment or connected devices.
• This unit is not compatible with PPPoE. A PPPoE-compatible router
is required if you have a contract for a type of line set by PPPoE.
• Do not connect an ETHERNET connector directly to the LAN port/
Ethernet connector on your computer.
