q Speaker output terminals ···························· (5)
Connect to the speakers.
w SUBWOOFER PRE OUT terminal ················ (5)
Connect to the input terminal of a powered
subwoofer.
e AUX OUT terminals ····································· (6)
Connect to an external pre-main amplifi er.
r AUX IN terminals ········································· (6)
Connect to analog/digital audio.

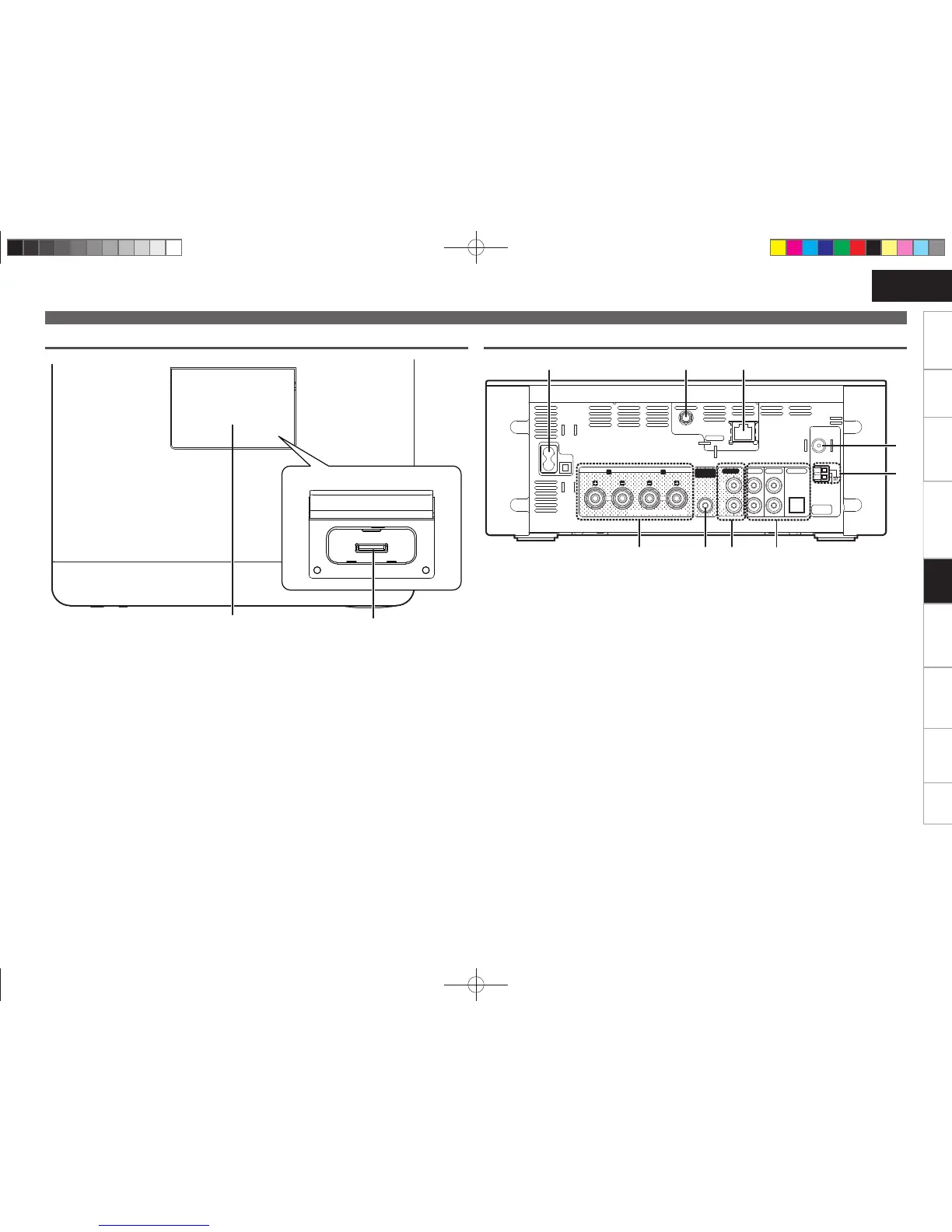

Part names and functions
Rear panel
COAX.
75ǡ
LOOP
ANT.
LR
SPEAKERS
ETHERNET
NETWORK
FM
AM
ANTENNA
TUNER
L
R
AUX OUT AUX IN 1 AUX IN 2
PREOUT
SUBWOOFER AUX IN 3
(OPTICAL)
WLAN ANTENNA
AC IN
SPEAKERS INPEDANCE 4-16 ǡ
RCD-N7W
o ui
wq re
t
y
Top panel
q
w
PUSH OPEN
GWhen the door is openedH
q Dock for iPod ················································ (9)
w Dock connector ············································· (9)
t AM antenna terminal ··································· (7)
Connect to the supplied AM antenna.
y FM antenna terminal ···································· (7)
Connect the supplied FM antenna. Connect to
an external antenna if reception is poor.
u ETHERNET connector ·································· (8)
i WLAN ANTENNA terminal ·························· (8)
o AC inlet (AC IN) ··········································· (10)
Connect the supplied AC power cord.
