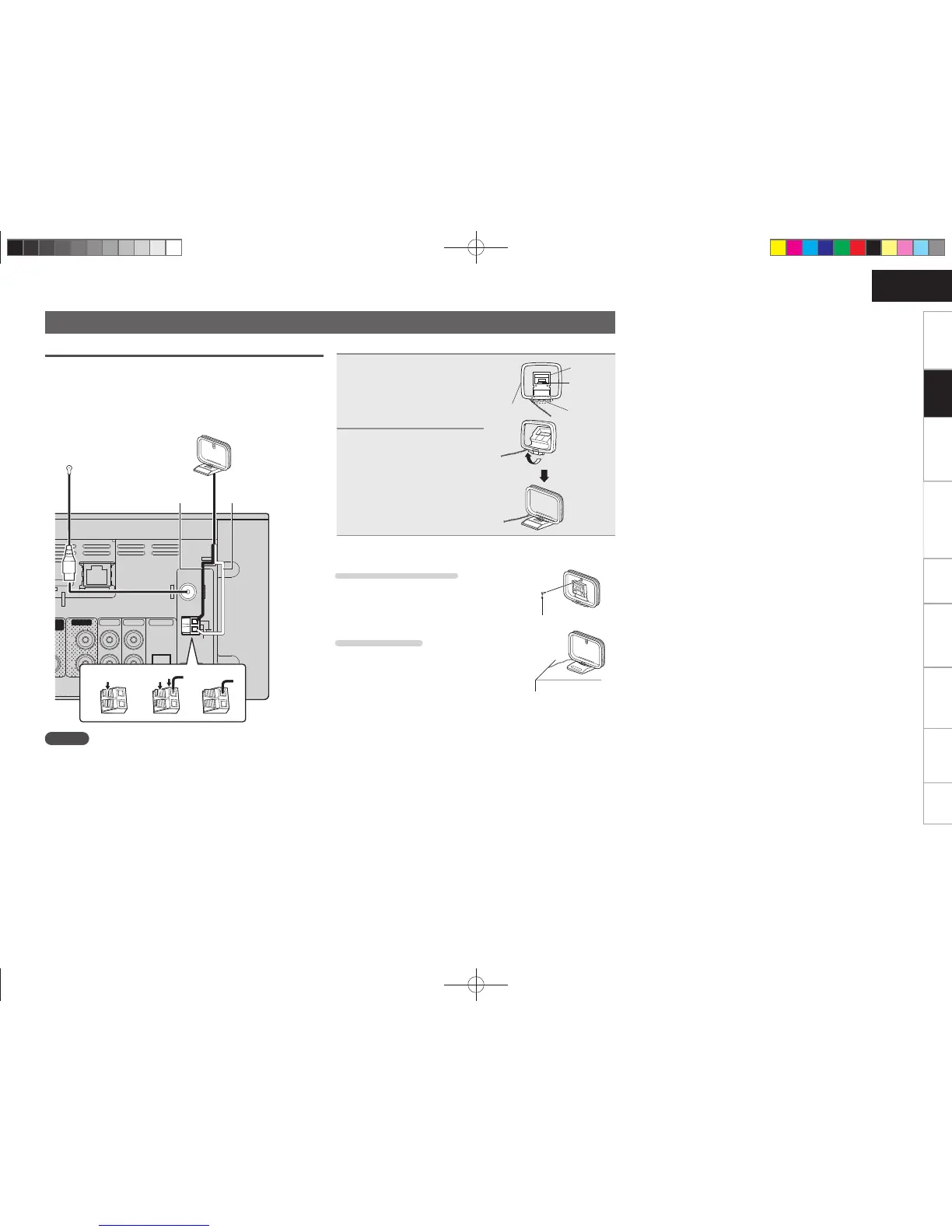

Connecting an antenna
FM/AM
• Connect the FM antenna or AM loop antenna supplied with the unit
to enjoy listening to radio broadcasts.
• After connecting the antenna and receiving a broadcast signal
(vpage16 “Tuning in Broadcast Stations”), fi x the antenna with
tape in a position where the noise level becomes minimal.
COAX.
75ǡ
LOOP
ANT.
ETHERNET
N
ETWORK
FM
AM
ANTENNA
TUNER
L
R
AUX OUT AUX IN 1 AUX IN 2
T
FER AUX IN 3
(OPTICAL)
RCD-N7W
weq
AM loop antenna
(Supplied)
FM indoor antenna
(Supplied)
White
Black
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
• If the signal has noise interference, connect the ground terminal
(GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend
installing an outdoor antenna. For details, inquire at the retail store
where you purchased the unit.
n AM loop antenna assembly
1
Put the stand section
through the bottom of
the loop antenna from
the rear and bend it
forward.
Loop
antenna
Stand
Square
hole
Projecting
part
2
Insert the projecting part
into the square hole in
the stand.
n Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown upper to assemble.
1.RCDN7E2ENG5th0831.indd71.RCDN7E2ENG5th0831.indd7 2010/09/0115:09:532010/09/0115:09:53

Denon RCD-N7 Specifications

General

Frequency range	5 - 20000 Hz
RMS rated power	65 W
Pre-out channels	1 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Dynamic power per channel (4 Ohm)	80 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio (L/R) in	2
Digital audio optical in	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WMA
Image formats supported	JPG
Video formats supported	AVI, WMV
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	99
Internet radio services supported	Last.fm, Napster
Optical drive type	CD player
Disc types supported	CD, CD-R, CD-RW
Display	OLED
Product color	Silver
Audio decoders	Not supported
Volume control	Rotary
Apple docking compatibility	iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4300 g
