Failure read
• Auto-off mode 1
• Momentary switching mode 1

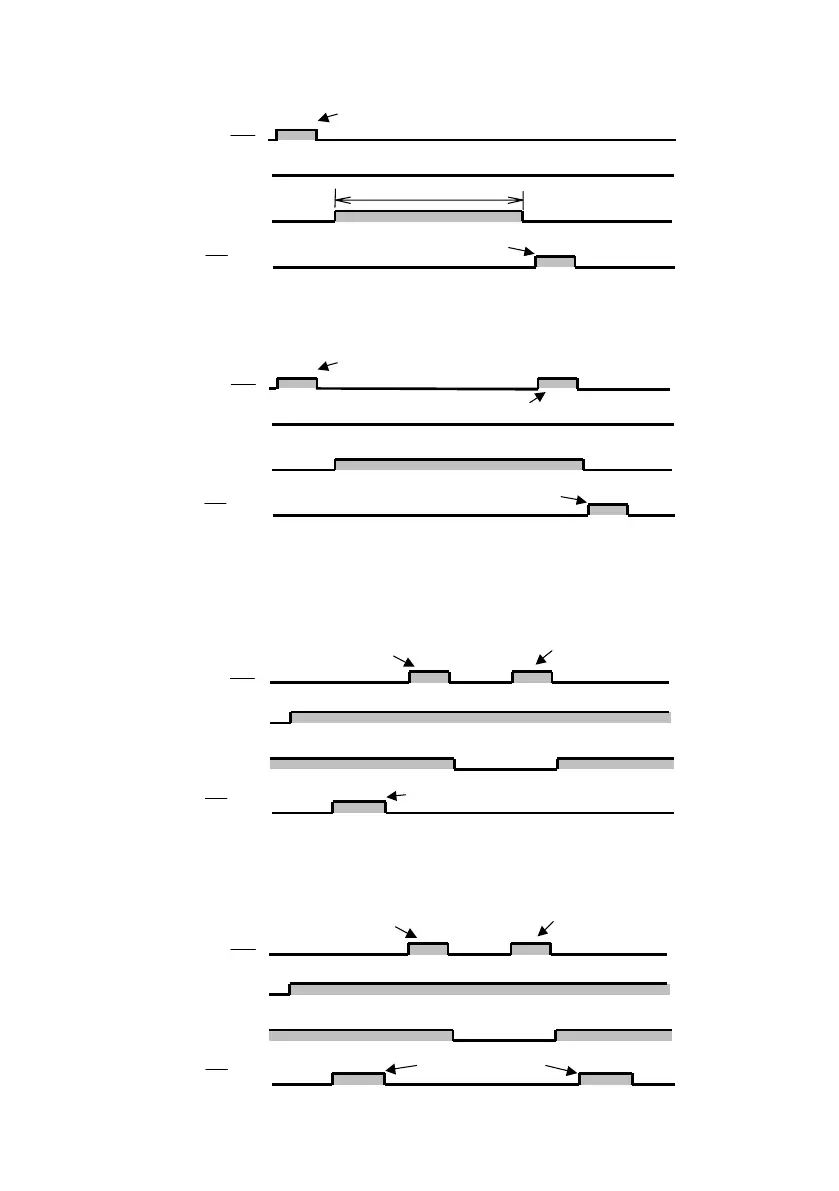

(2) Continuous reading mode
Switching to the ready-to-scan state with an R, READON or LON command
Switching to the ready-to-scan state with an RC command
Ready-to-scan command
1 to 5 sec.
Failure notification
Command input (RxD)
Bar code
Illumination LEDs
Data output (TxD)
Ready-to-scan command
Standby command
Failure notification
Command input (RxD)
Bar code
Illumination LEDs
Data output (TxD)
Ready-to-scan command
Standby command
Bar code data
Command input (RxD)
Bar code
Illumination LEDs
Data output (TxD)
Standby command
Ready-to-scan command
Bar code data
Command input (RxD)
Bar code
Illumination LEDs
Data output (TxD)
