- 98 -

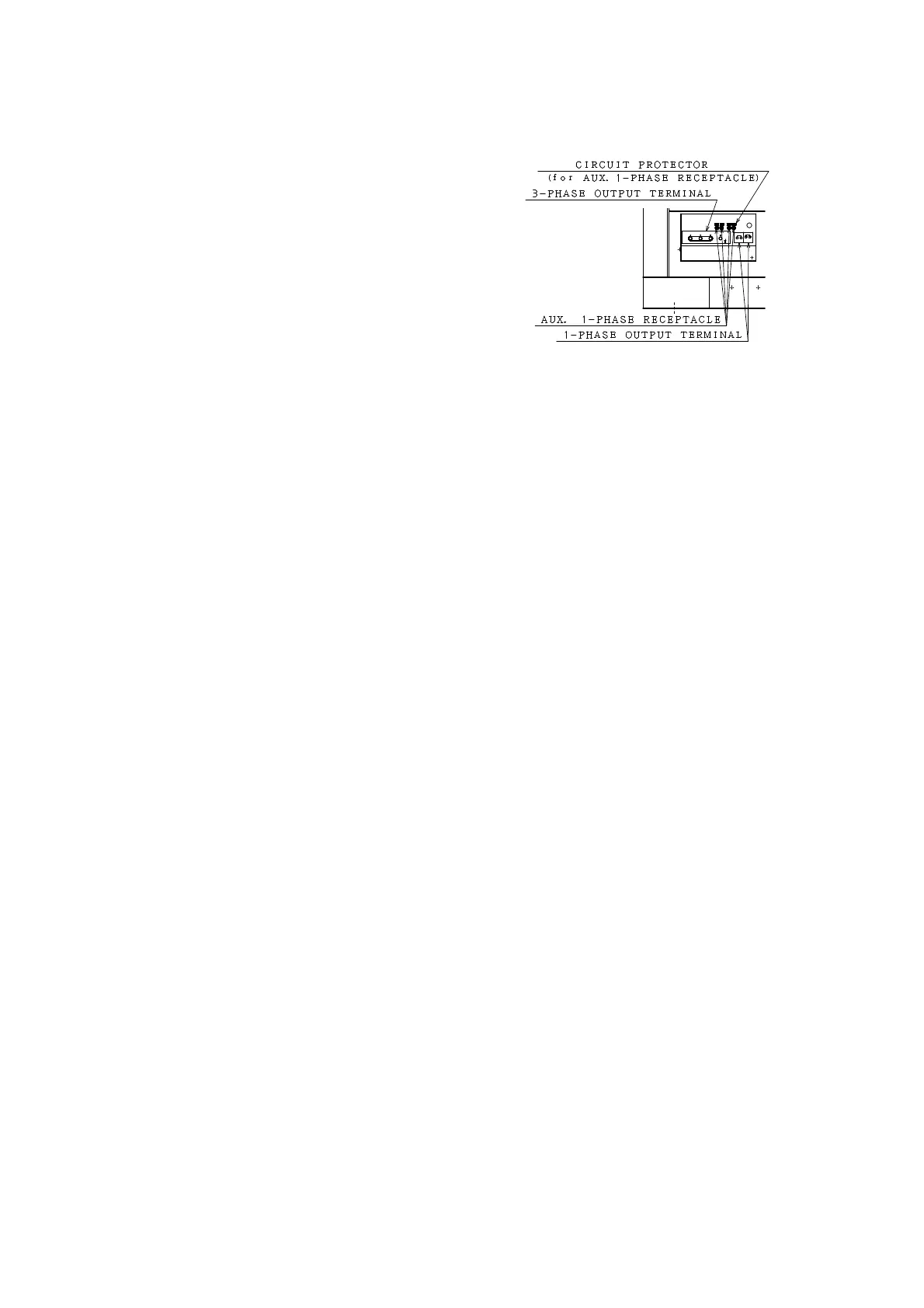

13-3 Single-phase output receptacles
(1) Description of the device
The output terminal section is
equipped with
two single-phase output terminals, two receptacles
(50/60Hz,100/110V), when the AC voltmeter indicates
200/220V or 400/440V, the single phase output
voltage stands at 100/110V.
[Note]
receptacle can be used up to 1.5/1.65kVA.
When using the single-phase and 3-phase output simultaneously, the output of the
3-phase side will decline at the same amount of the output of the single-phase side.
In this situation, make sure the sum amount of current and load capacity for output
terminals (U, V, W) do not exceed the rated amperage and load capacity for the
generator.
