- 13 -

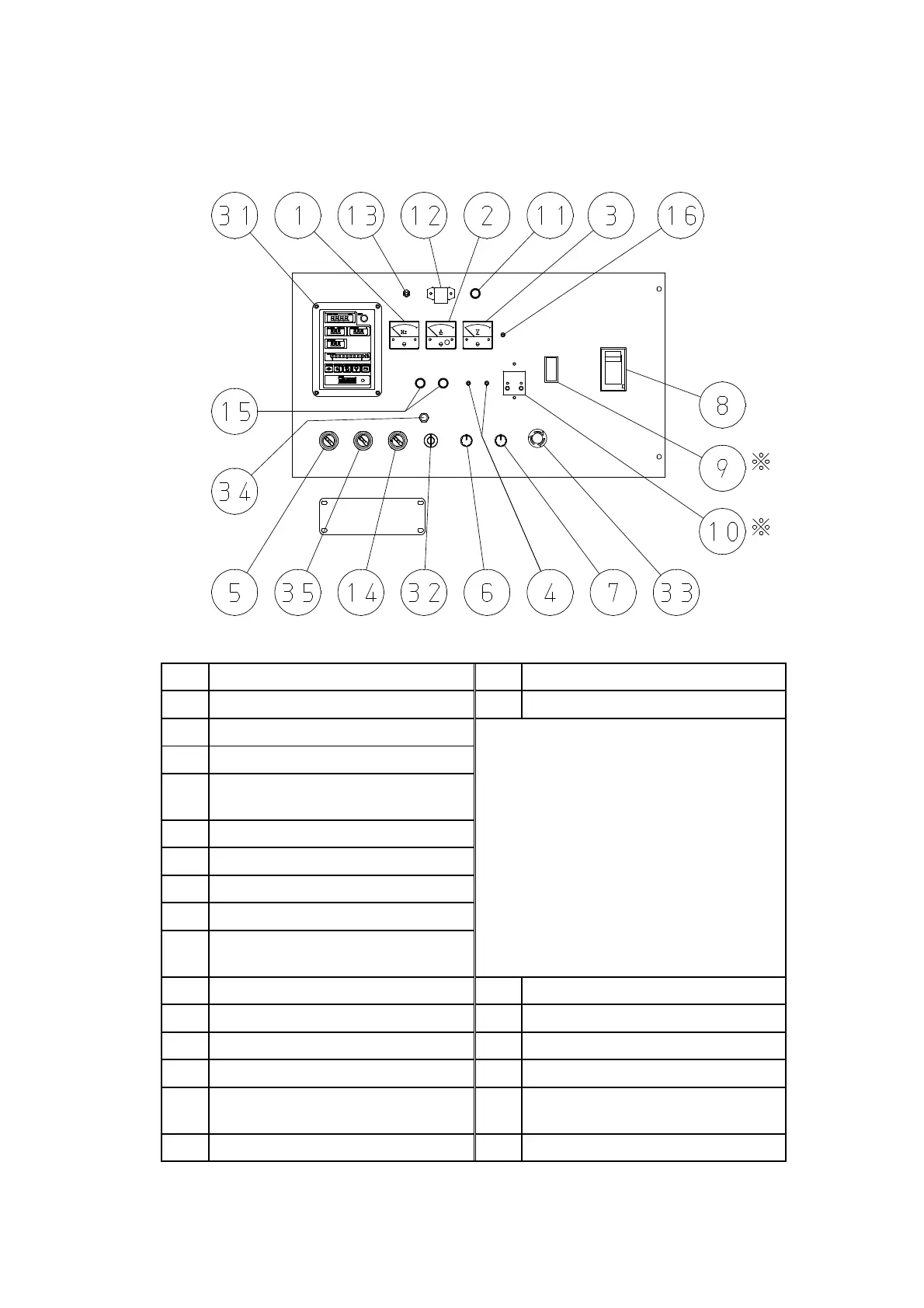

2-2 Operating panel, control panel and part names
No.
NAME No.
NAME
1 frequency meter 31
engine indicator
2 AC ammeter
indicator:
engine speed, oil pressure, water
temp, battery charging voltage,
integrating time
warning lamps
high water temp, low lubricating
oil
pressure, air element blinding,
fuel filter water level, over speed,
fuel level failure
fuel level indicator
3 AC voltmeter
4
output voltage indication lam
p
5 frequency change-over switch
6 speed regulator
7 voltage regulator
8 circuit breaker (3-phase)
9
circuit breaker (1-phase) (opti
on)
10
earth leakage relay (option) 32
starter switch
11
pilot lamp 33
emergency stop button
12
panel light 34
preheat lamp
13
panel light switch 35
speed change-over switch
14
single-parallel change-over sw
itch
15
synchronizing lamp
