- 61 -
8-2 Connection of booster cable, and installation
When the engine is started using booster cables, connect the cables as follows.

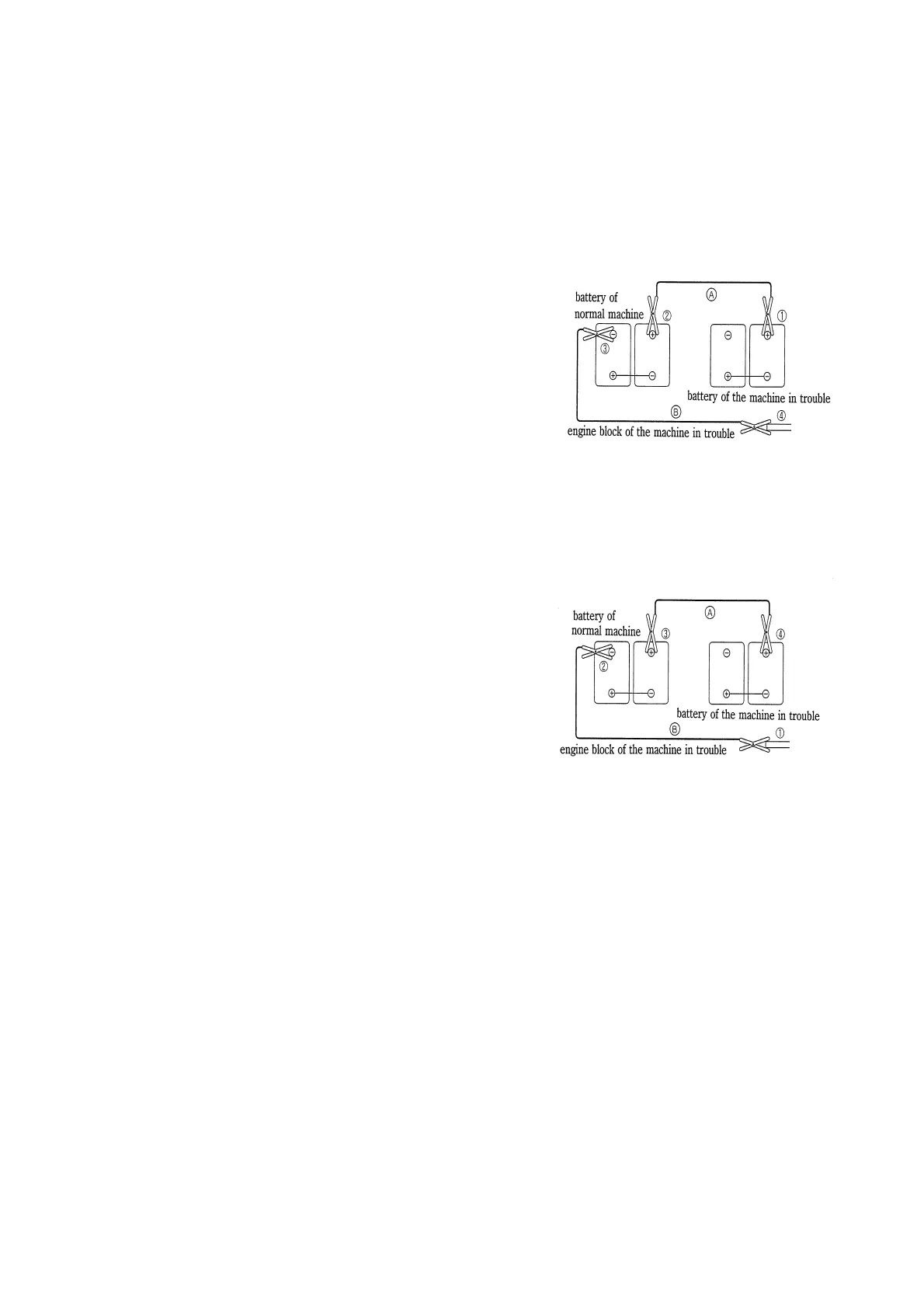

(1) Connection of booster cable
① Connect the clip of the booster cable "A"
to the terminal "+" of the machine in trouble.
② Connect the other clip of the booster cable
"A" to the terminal "+" of normal machine.
③ Connect the clip of the booster cable "B"
to the terminal "B" to the terminal "-" of
normal machine.
④ Connect the other clip of the booster cable "B"
to the engine block of the machine in trouble.
(2) Removal of booster cable
① Remove the clip of the booster cable "B"
connected to the engine block of the machine
in trouble.
② Remove the clip of the booster cable "B"
connected to the terminal "-" of normal machine.
③ Remove the clip of the booster cable "A"
connected to the terminal "+" of normal machine.
④ Remove the clip of the booster cable "A"
connected to the terminal "+" of the machine
in trouble.
(3) Caution on handling of booster cable
① Use booster cables and clips of the size that matches the size of battery.
② The battery used for normal machine should be the same in capacity as the battery
of the machine in trouble.
③ After connection, check that clips are firmly connected.
④ When connecting booster cables, make sure that the terminal "+" does not
touch the terminal "-".
⑤ The engine block should be connected at a place more than 30cm away from the
battery.
