- 24 -
(6)

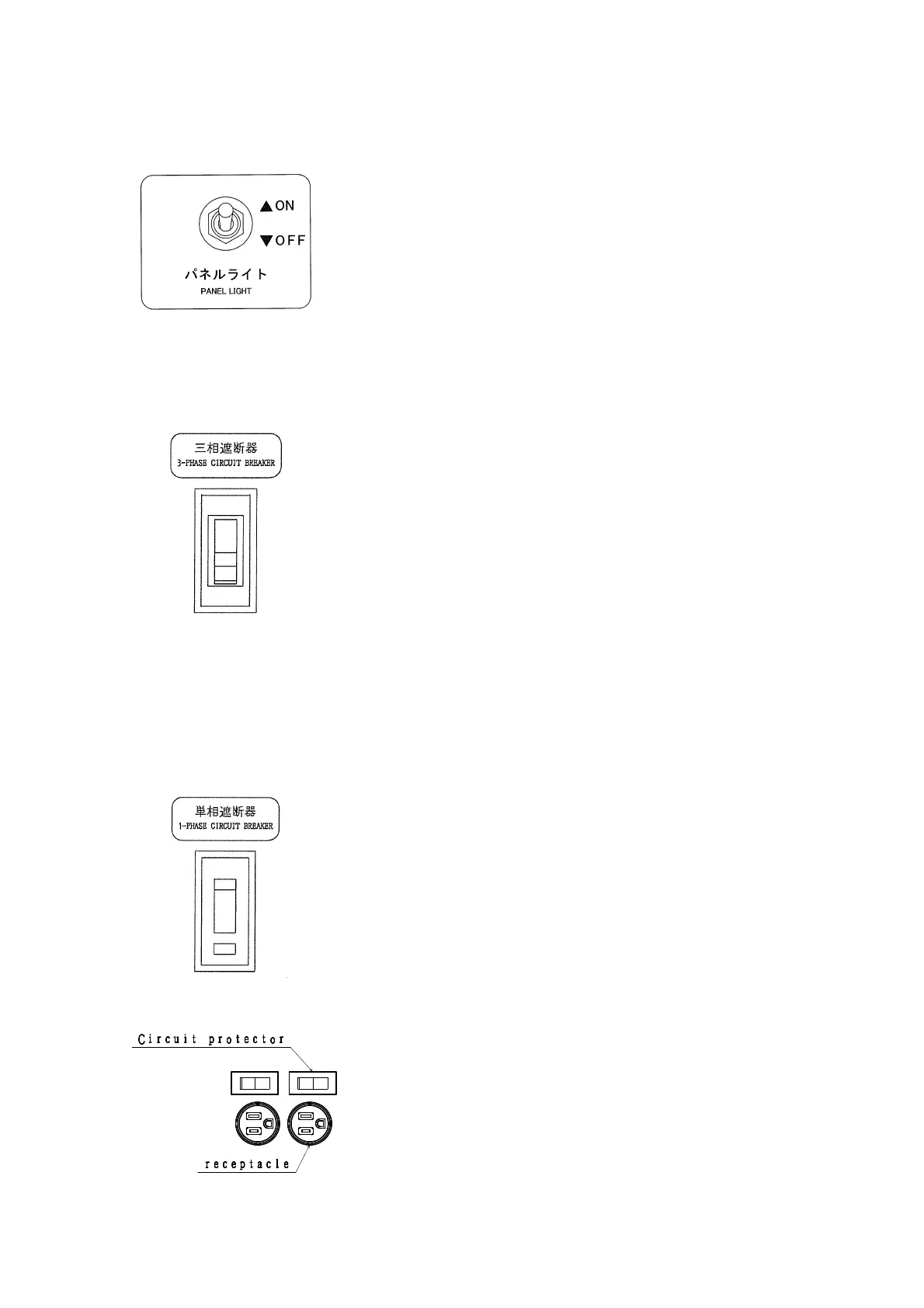

Panel light switch
This is the switch to turn on the panel light.
(7) Circuit breaker
· 3-phase circuit breaker
This is a main switch to supply power to a load.
When the load is shorted or in the state of overload, it
trips to protect the generator against trouble.
[Note]
Do not use this circuit breaker to turn ON/OFF
the load,
to prevent damage to the circuit breaker.
When it trips with overcurrent, the handle of the
breaker stops between ON and OFF positions. This is
what is called the trip condition.
In this case, push the handle down to the OFF position
to reset it, or else, it cannot be set in ON position.
· 1-phase circuit breaker (Option)
It is a circuit breaker for 1-phase output terminal. This
machine is protected by this circuit breaker from over-current
and leakage.
· 1-phase receptacle’s Circuit protector (Option)
Every receptacle on this machine is protected by the circuit
protector from over-current. When the circuit protector tripped,
the white button will extend and push it back in to reset the
circuit protector.
