- 34 -

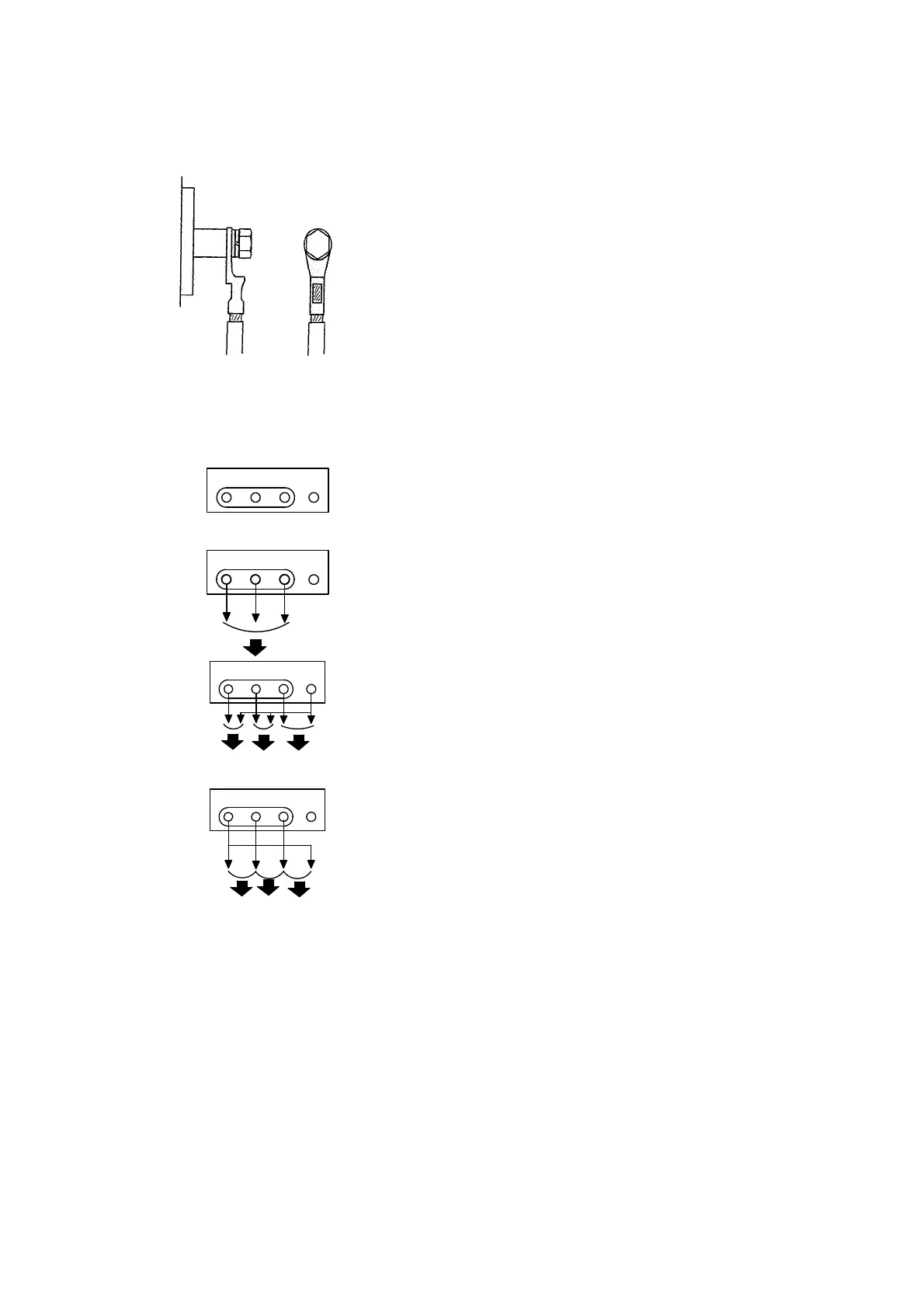

(1) Fastening the output terminal
[Note]
In connecting the load, tighten locking bolts
securely with a spanner or the like to
prevent burning.
(2) Connecting three phase output terminal
Connect the load to the output terminal after confirmation of load phase and voltage.
Use U/V/W for three phase load
200/220V or 400/440V
Use O/U,O/V,O/W for single phase load
115/127V or 231/254V
Use U/V,V/W,W/U for single phase load
200/220V or 400/440V
Ｕ
Ｖ Ｗ
Ｏ
Ｕ
Ｖ Ｗ
Ｏ
Ｕ
Ｖ Ｗ
Ｏ
Ｕ
Ｖ Ｗ
Ｏ
