SGX VIBRATOR MOTOR
7-18 15 Jun 12
HyperPoolShaker
Bearing Removal
The following procedure describes bearing removal for one side of the motor. Repeat the
procedure for bearing at opposite end.

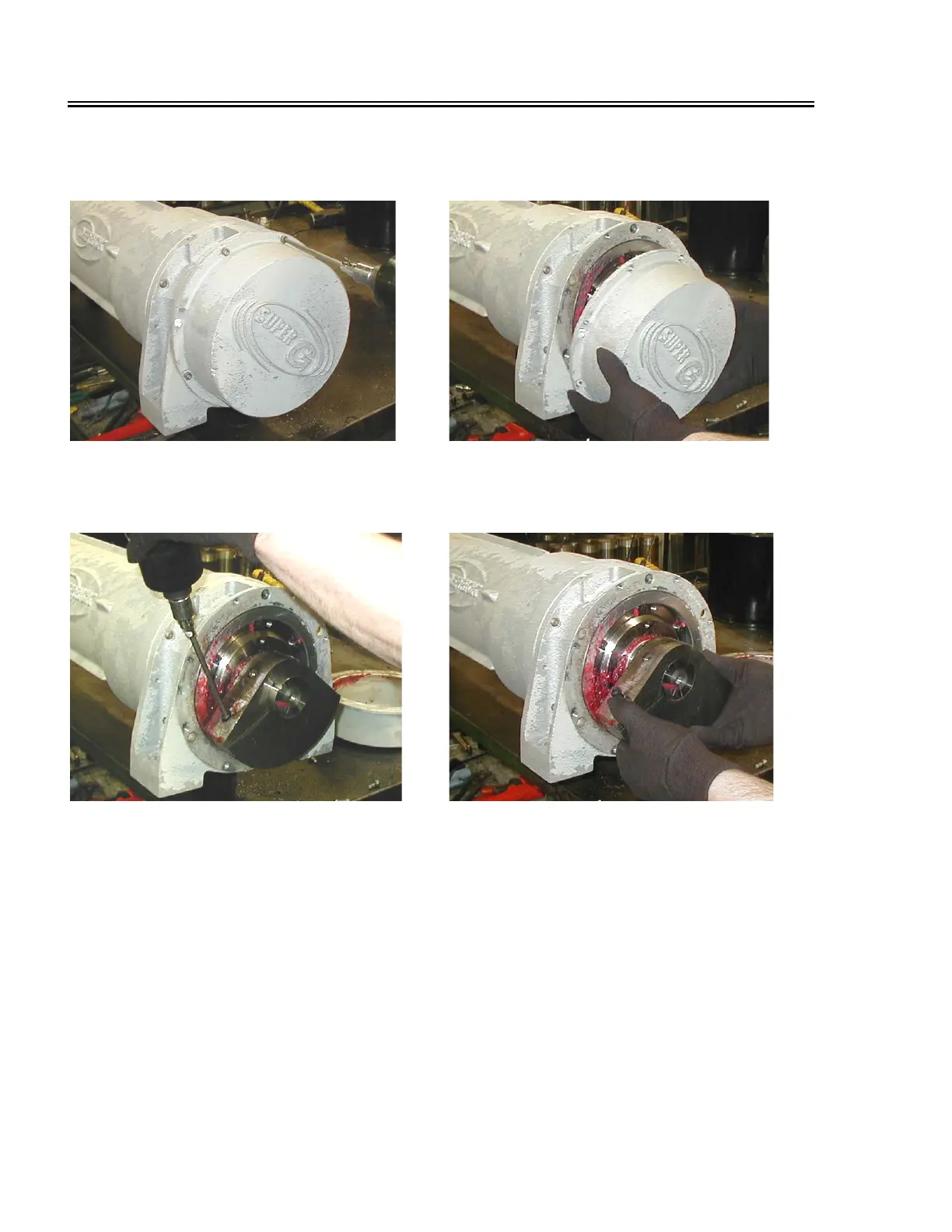

1 - Using a 5mm hex wrench, remove eight
socket head cap screws securing cover to
bearing housing; support cover as last screw
is removed.
2 - Remove cover, and remove O-ring using
a dental pick or similar tool. Discard O-ring.
3 - Using a 6mm hex wrench, loosen socket
head set screw securing outboard eccentric
weight(s) to motor shaft. Note that more
than one eccentric weight may be installed
in this position.
4 - Remove outboard eccentric weight(s)
from motor shaft.
