SGX VIBRATOR MOTOR
15 Jun 12 7-19
HyperPoolShaker

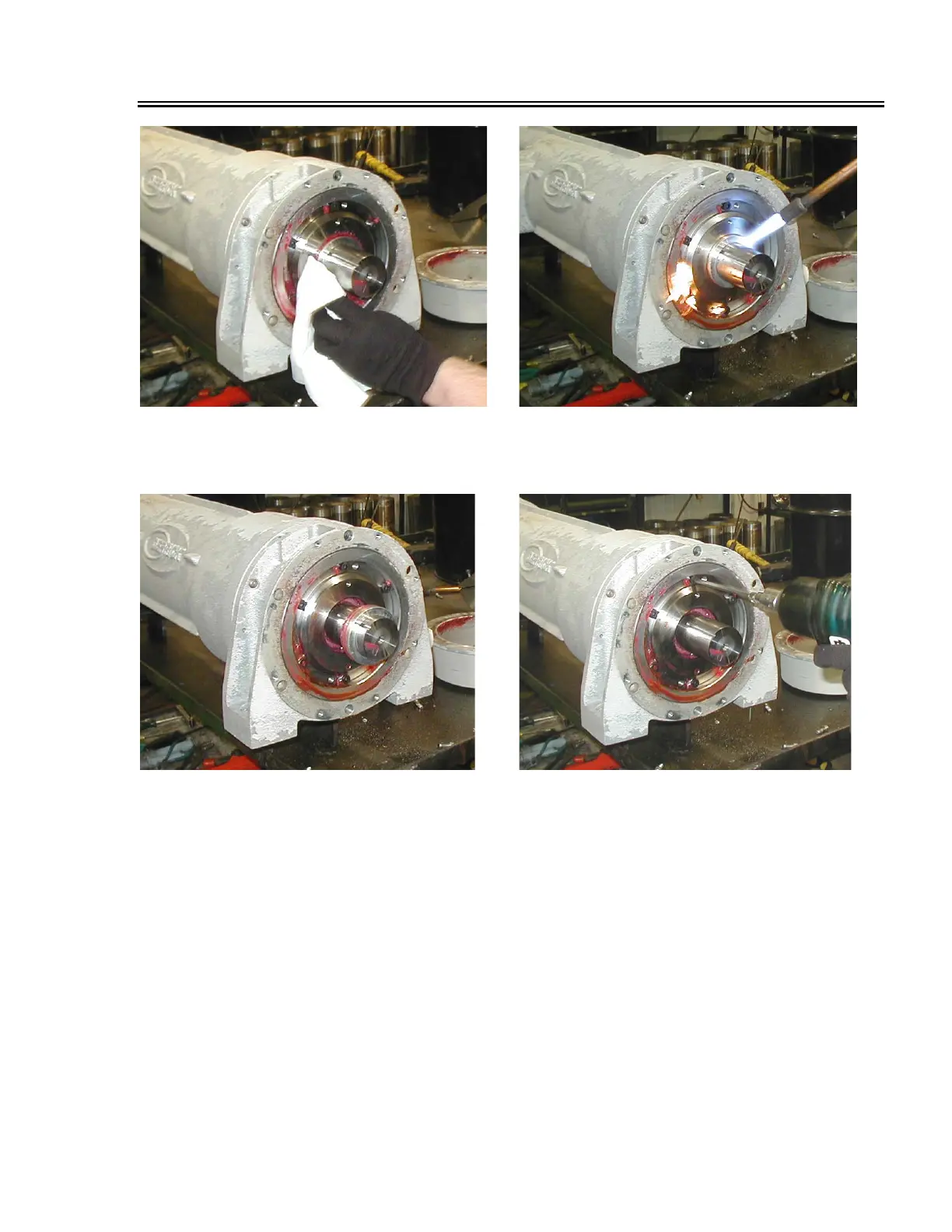

5 - Using a soft absorbent cloth, remove
excess lubricant from components. Do not
use compressed air for cleaning as this may
drive contaminants into motor.
6 - Using a torch with a diffused flame, gently
heat spacer for no more than 10 seconds to
approximately 200°-230°F (93°-110°C) to
facilitate removal.
7 - CAREFULLY slide heated spacer off
motor shaft.
8 - Using a 6mm hex wrench, remove six
socket head cap screws (M8-1.25x60)
securing bearing mount to bearing housing.
