SGX VIBRATOR MOTOR
7-20 15 Jun 12
HyperPoolShaker

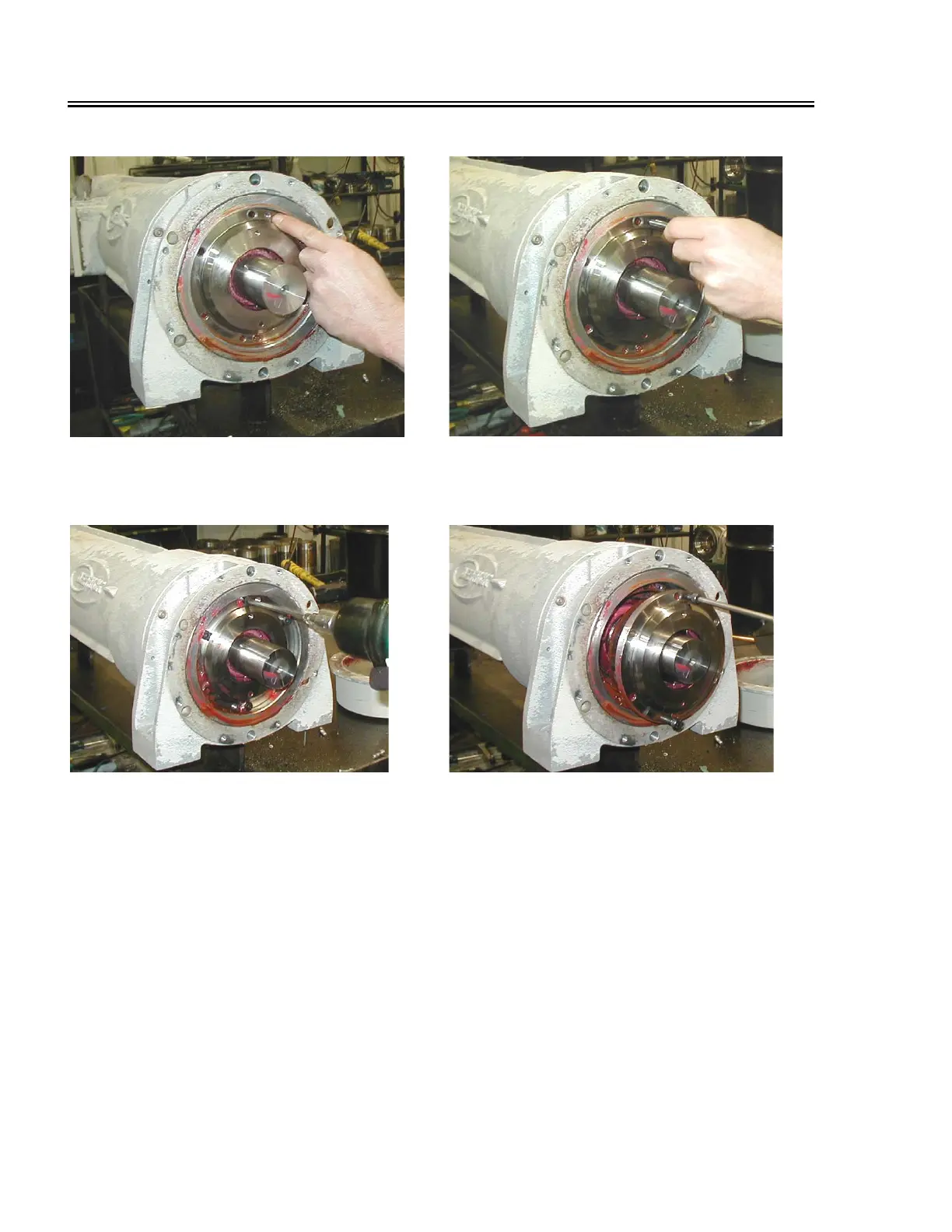

9 - Locate two threaded holes that accept
the two M8-1.25x70 socket head jack
screws. Jack screw holes are 180 degrees
apart.
10 - Carefully thread jack screws into
threaded holes in bearing mount, being
sure to avoid cross-threading.
11 - Using a 6mm hex wrench, alternately
and equally advance each jack screw a
few turns at a time.
12 - As jack screws contact bearing
housing, bearing mount is drawn from
bearing housing as shown, while inner
bearing race remains on shaft. Remove
and discard bearing and bearing mount.
