LBB Series Oven Owner’s Manual THEORY OF OPERATION
Version 13 23
Copyright © 2011 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
Table 2. Hi-Limit Instrument Explanations.
3.2.3.1. Product Hi-Limit Instrument
If the product being processed has a critical high temperature limit, use the Hi-Limit
instrument as a product Hi-Limit instrument. Set the Hi-Limit instrument to a
temperature somewhat below the temperature at which the product could be damaged.
3.2.3.2. Oven Hi-Limit Instrument
If the product being processed does not have a critical high temperature limit, use the Hi-
Limit as an oven Hi-Limit instrument to protect the oven equipment. Set the Hi-Limit to
204°C.
Output 1 status value. (OP2 normally not used for LBB Ovens).
Degree indicator.: Celsius or Fahrenheit
High limit setpoint 1. (LSP1 typically not used for LBB Ovens).
Setpoint 2 for output 2 (typically not used for LBB Ovens)
Scroll Key, used for advancing available displays
Increases a setpoint or mode parameter
Decreases a setpoint or mode parameter
Reset the high limit, return to normal display

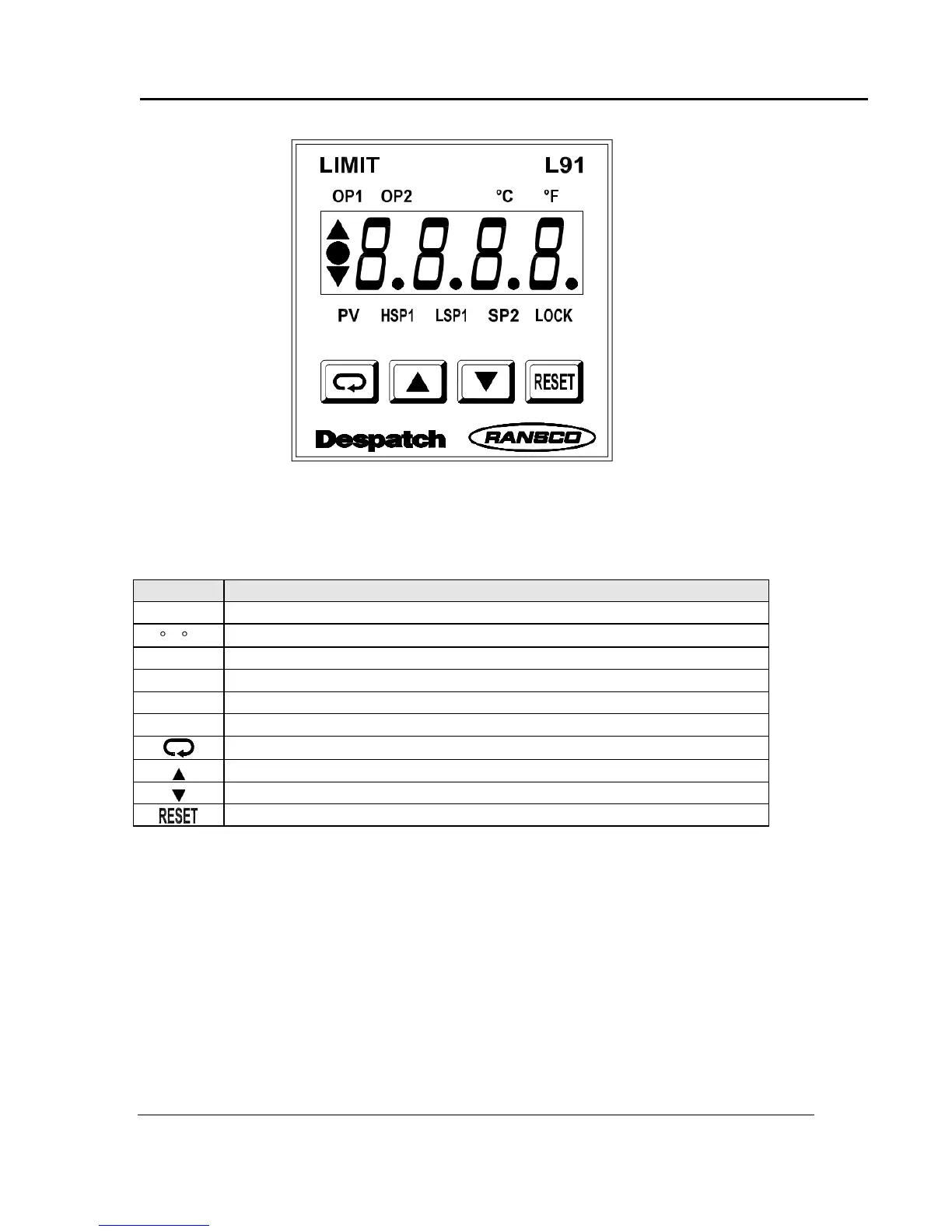

Figure 5. Hi-Limit Instrument.
