LBB Series Oven Owner’s Manual MAINTENANCE
Version 13 47
Copyright © 2011 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
6. Disconnect the thermocouple wires (Figure 14).
7. Press and hold down the tabs holding the Hi-Limit instrument to the control panel and
slide it out (Figure 18).
8. Install new Hi-Limit instrument into the control panel.
9. Replace mounting bracket.
10. Connect Hi-Limit instrument connector plug to the circuit board (Figure 17).
11. Reattach thermocouple wires. Make sure that the wires are connected correctly.
(Figure 14). See Figure 19 for correct Hi-Limit instrument connections.
12. Replace control panel.

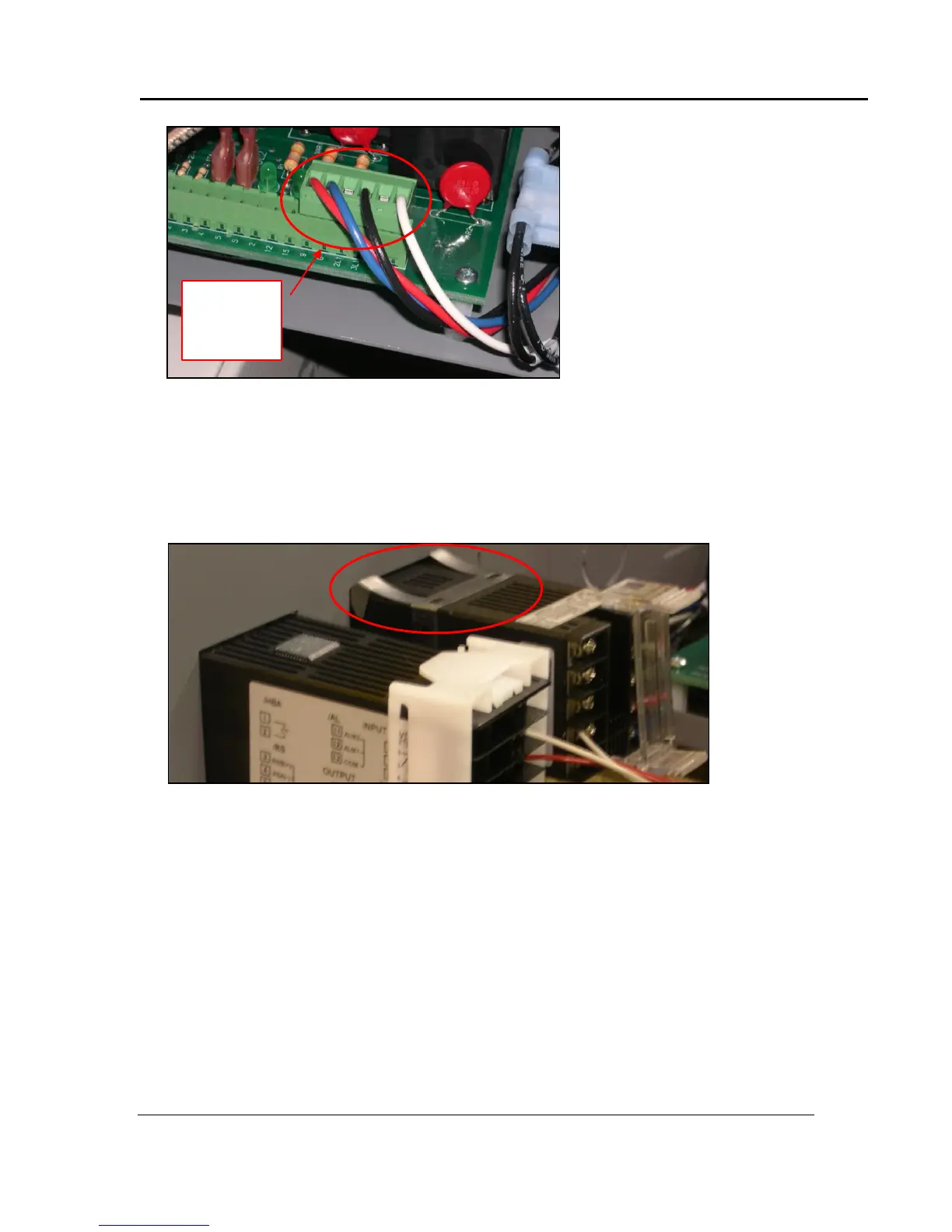

Figure 17. Hi-Limit Connector Block on Control Board.
Figure 18. Press and Hold Tabs to Remove Hi-Limit Instrument.
