LBB Series Oven Owner’s Manual MAINTENANCE
Version 13 45
Copyright © 2011 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
Control Instrument
Mounting Bracket

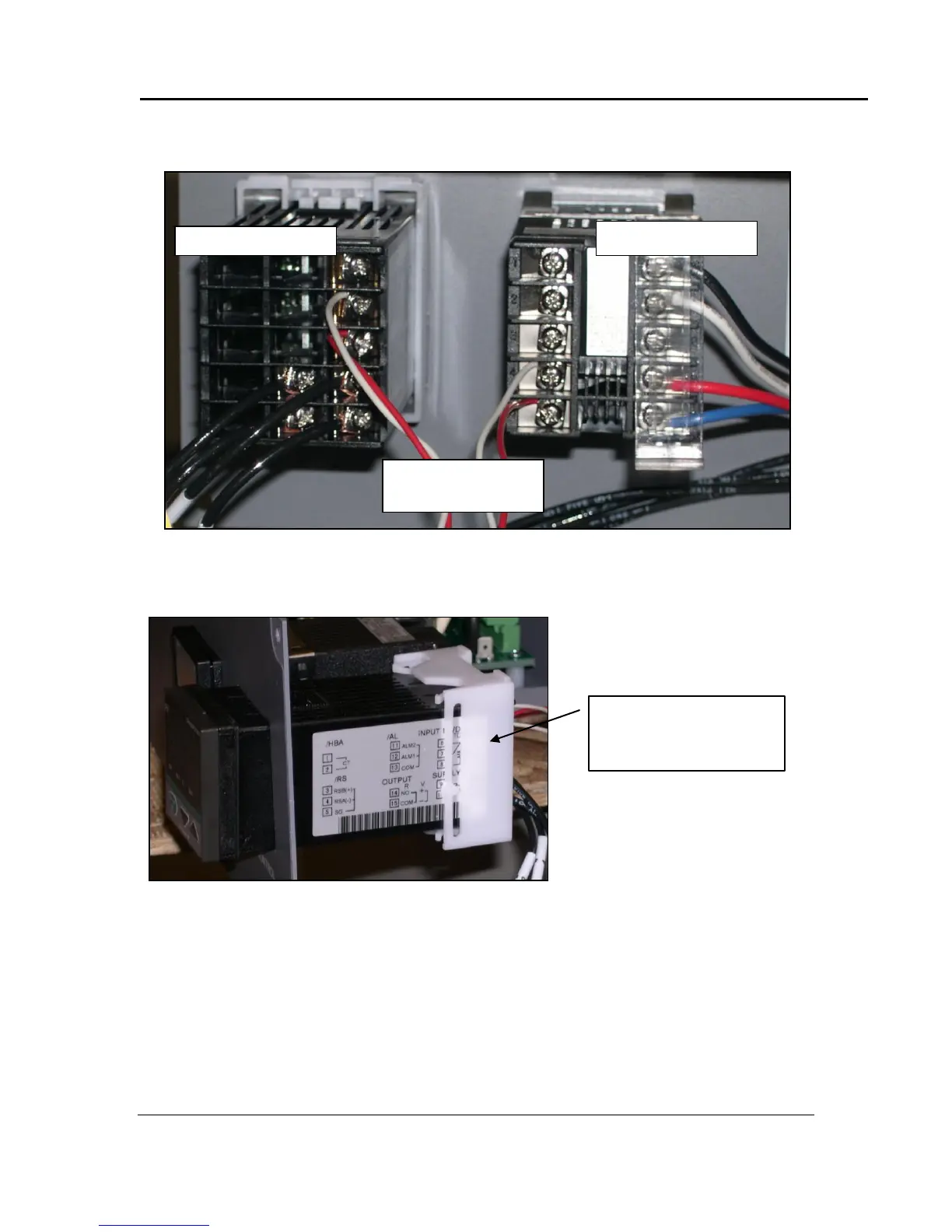

Figure 15. Prepare to remove control instrument by removing the mounting bracket.
5. Move the Control instrument mounting bracket back and off (Figure 15).
6. Remove old Control instrument from the panel.
7. Install new Control instrument into the control panel.
8. Secure instrument mounting bracket.
9. Reattach wires to the new Control instrument. Double-check that the wires are
connected correctly. See Figure 16 for correct Control instrument connections.
10. Replace control panel.
Figure 14. Remove Old Control and Hi-Limit Instruments and Wiring (Rear view).
