APPENDICES LBB Series Oven Owner’s Manual
56 Version 13
Copyright © 2011 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
8.2. Optional Equipment
8.2.1. Assemble Oven Stand
1. Install four rubber grommets into holes in the stand (Figure 24).
a. For LBB1-69 stands, the rear grommets mount into the forward set of rear
holes.
b. On LBB2-12 stands the rear grommets mount into the set of holes closest to
the rear of the stand.
2. Place the oven on top of the stand. The four embossed areas in the bottom of the
oven should center in the grommets.
3. Using the self-drilling screw and large flat washer provided, install through each
embossed area as shown below.

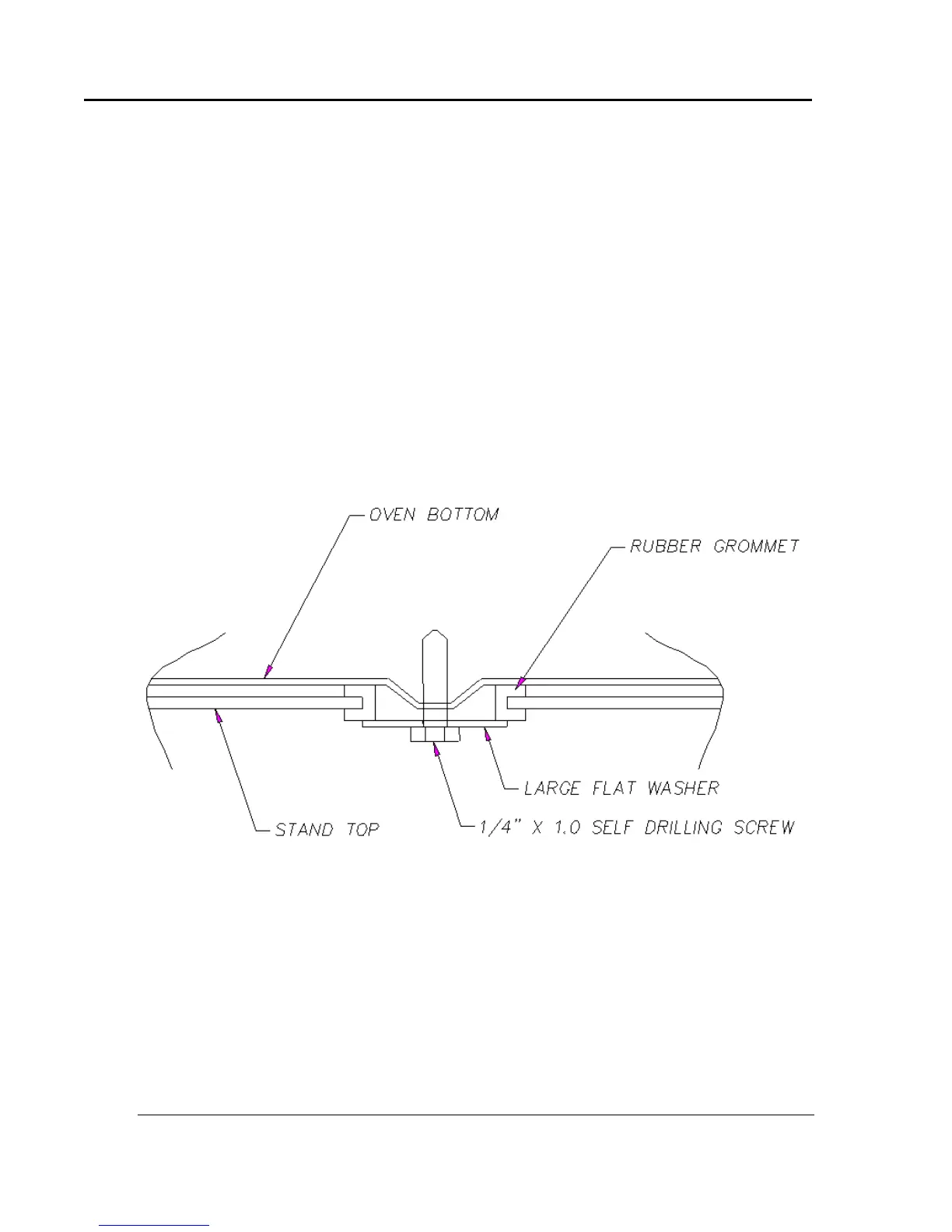

Figure 24. Optional LBB Oven Stand.
