4.4. Optional Beacon Light

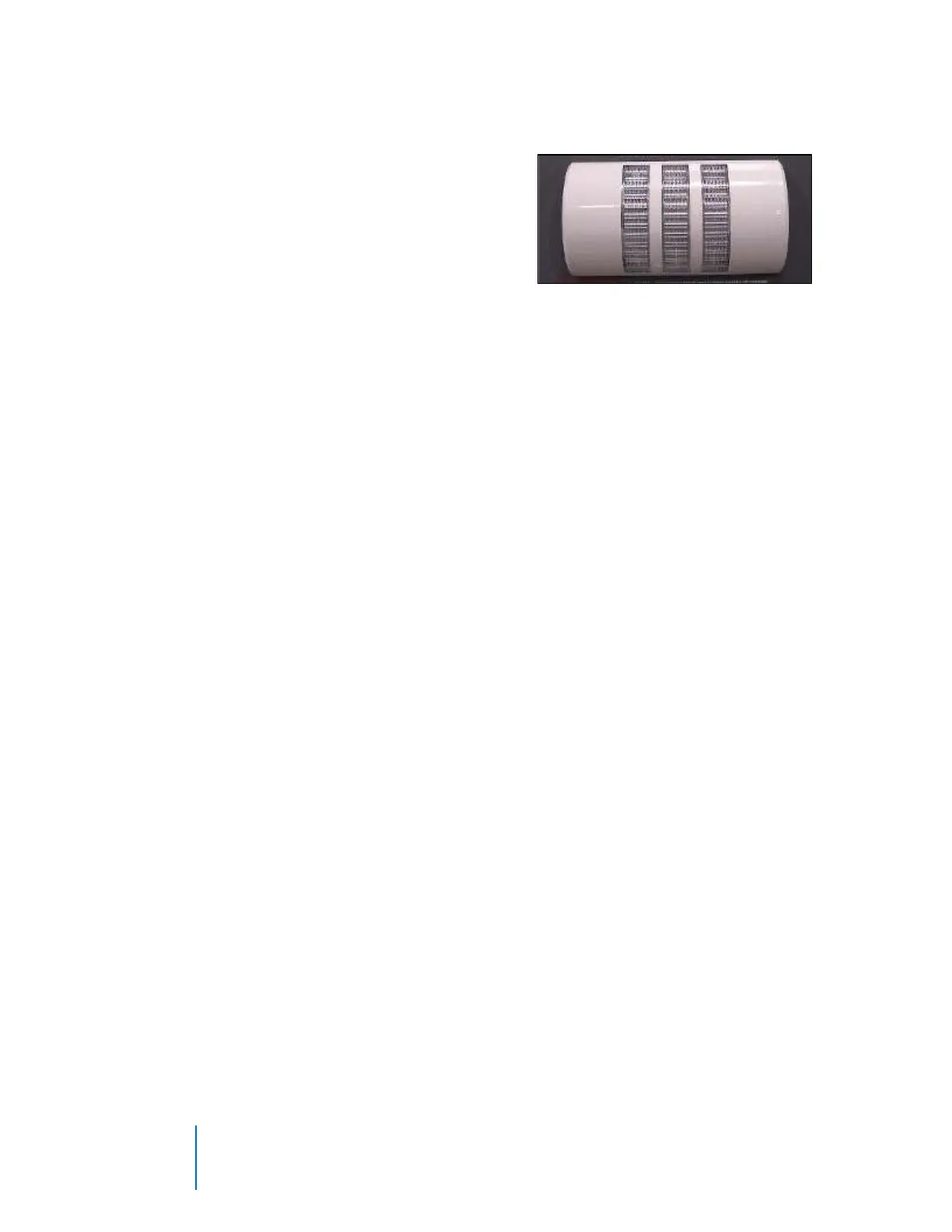

The LCC/LCD Series beacon light option (Figure 8) provides visual cycle process
indication to the operator. The beacon light
option is on the front control panel of both
the LCC/LCDPT-3 Pass-Through oven and the
standard LCC/LCD oven.
The beacon light provides visual indication of
the cycle status as follows:
• Green: Cycle in process
• Yellow: Standby. Operator has unloaded product. Oven waiting for next
cycle.
• Red: Error or fault condition.
4.5. High Limit Alarm with Alarm Silence
The LCC/LCD Series oven High Limit Alarm provides an audible and visual alarm
when the temperature exceeds the High Limit setpoint on the control. The alarm
horn is typically located to the right of the control panel door. When the chamber
temperature exceeds the High Limit setting on the control, the heater shuts
down, the alarm horn sounds, and the red push button switch will illuminate.
