The supporting surface must be capable of holding three ovens (750 Lbs or 340.2
Kg) or the weight of two LCC1-51 oven models. For stacking instructions, refer to
drawing 163410 in Figure 10(also included in the overall manual folder as well as
the ITWEAE Despatch website).
Following stacking notes and material list are in drawing 163410:
Stacking Notes:
1) Use the holes in the rear oven feet to bolt the ovens together by removing
the hole plugs in the top of the mating oven beneath. Install bolts and washers
(items 1 & 3) thru holes in the oven and mounting feet (2) places in the rear
compartment of the oven. Install nuts and washers (items 2,3,4) in the mating
area of the oven below. If the oven is sitting on a stand below, screw the bolts
directly into the fasteners that are part of the stand.
2) If the model is an LCD, the heat shield on the TOP of the lower and/or
middle oven must be removed. The side shield can remain in place.

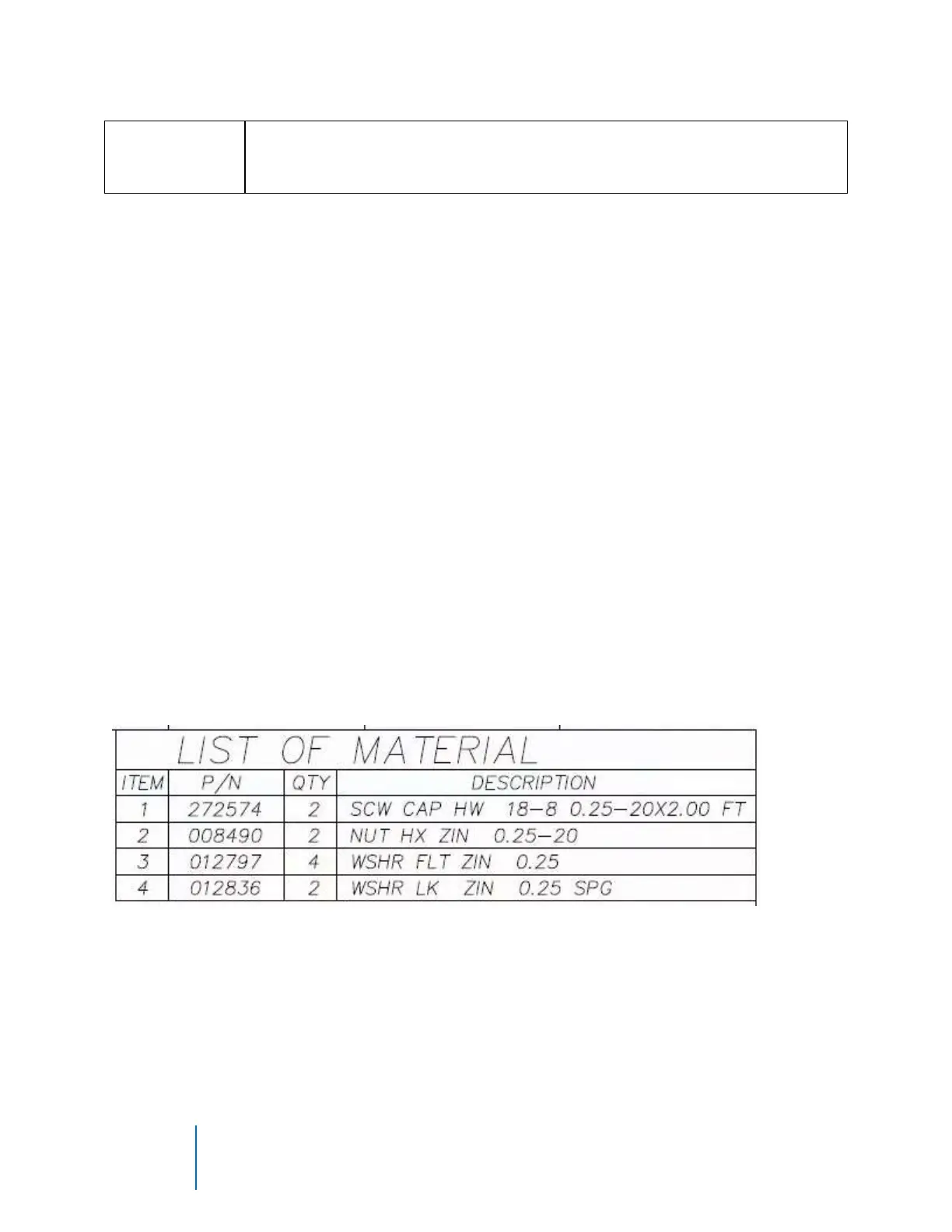

Material Required for stacking ovens:
